CICS 52 100 V LD Systems · Ceiling Loudspeakers
5.25" 2-Way In-Ceiling Speaker 100 V
Overview
CICS 52 100 V at a Glance
5.25'' 2-Way In-Ceiling Speaker 100 V
Description
About the CICS 52 100 V
Manufacturer detail for the CICS 52 100 V by LD Systems.
Technical Overview

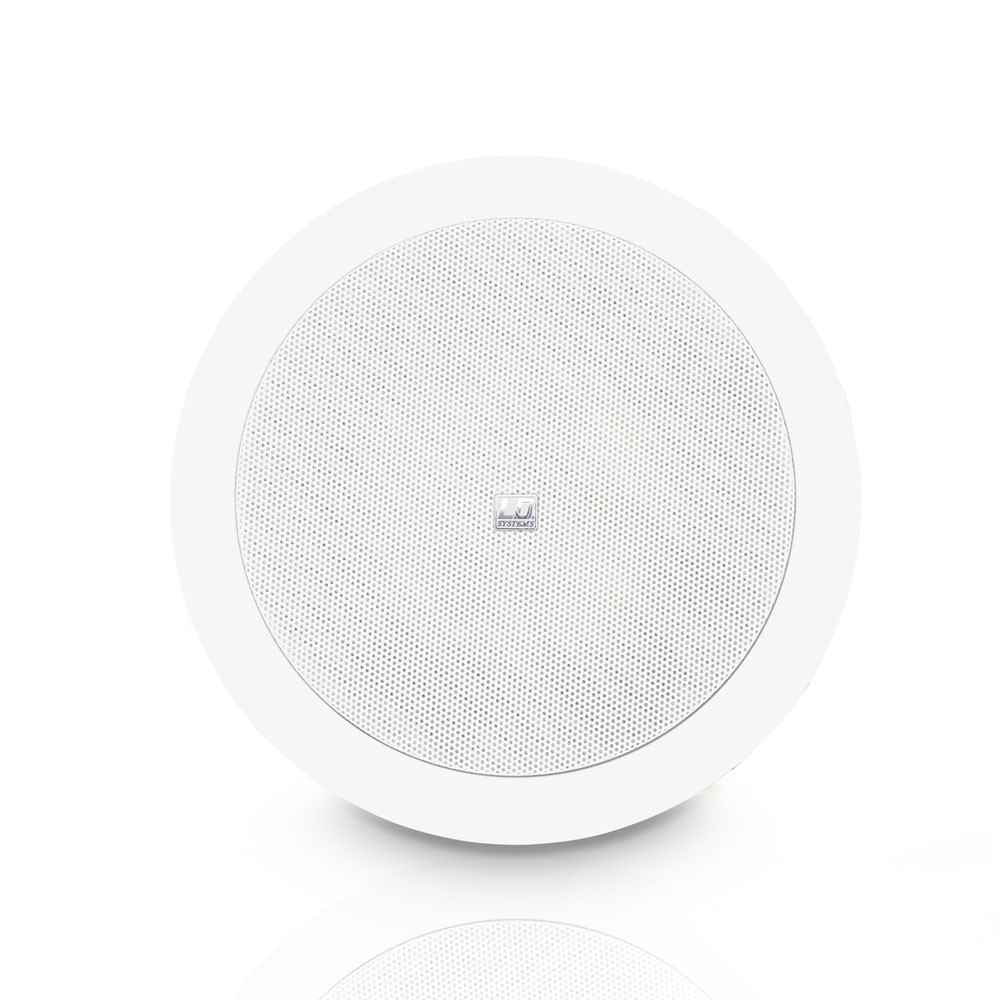

The CONTRACTOR CICS 52 is a round in-wall speaker for installation in ceilings, that delivers a powerful sound and an appealing look. It is equipped with a 5.25" woofer and coaxial arranged 1.2" tweeter that feature a frequency response up to 20 kHz and high speech intelligibility. The CICS 52 reaches a sound pressure level of 88 dB at 1 W / 1 m and has a power capacity of 40 watts of continuous power. It features a secure mounting system with swivels for easy and fast installation. The ceiling speaker is designed for a wide scope of applications, providing a discreet sound in hotels, restaurants, bars, lounges, training and conference rooms, or shopping centres.
For ELA systems, the CICS 52 is available as a 100 Volt version (CICS 52 100 V) with three taps for 6, 12, and 24 watts.
Specifications
Technical Specifications
Full published figures for the CICS 52 100 V by LD Systems.
- Product type
- Installation Loudspeakers
- Type
- Ceiling-mounted Loudspeaker
- Version
- Wall and ceiling installation speaker
- Speaker type
- 2-way speaker
- Color
- white
- Woofer dimensions
- 5.25 "
- Woofer dimensions (mm)
- 133 mm
- Tweeter dimensions
- 1.2 "
- Tweeter dimensions (mm)
- 30 mm
- Cut-out measurement
- 170 mm
- Mounting depth
- 83 mm
- Min. Material Thickness
- 2.5 mm
Show all 23 specifications Show fewer specifications
- Max. Material Thickness
- 31 mm
- Impedance (low-impedance)
- 8 Ohm(s)
- 100 V Inputs
- 12 W, 24 W, 6 W
- Frequency response
- 80 - 20000 Hz
- Sensitivity (1 W / 1 m)
- 88 dB
- Low-impedance rated load (RMS)
- 40 W
- Depth
- 92 mm
- Diameter
- 202 mm
- Weight
- 1,31 kg
- Length
- 92 mm
- Power Consumption
- 40 W
