CICS 62 | LD Systems Professional Passive Column Speakers Equipment
Professional Passive Column Speakers solution by LD Systems - Available throughout the Middle East
Description
Detailed information about the CICS 62 by LD Systems
Technical Overview

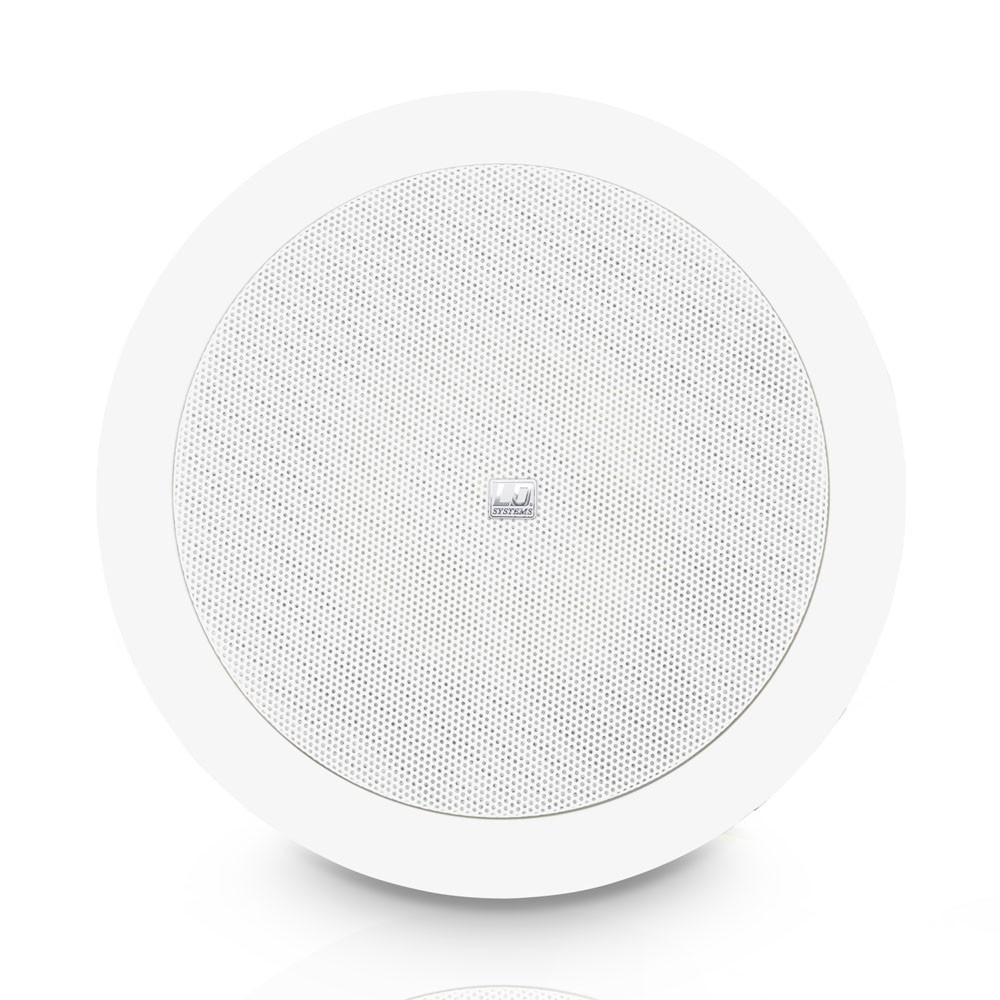

The CONTRACTOR CICS 62 is a round in-wall speaker with an appealing look for installation in ceilings. A 6.5" woofer and 1.2" tweeter in coaxial arrangement ensure a frequency response up to 20 kHz, balanced sound and excellent speech intelligibility. The CICS 62 achieves a sound pressure level of 88 dB at 1 W / 1 m with a power capacity of 60 watts of continuous power. Secure swivels enable fast and easy assembly. The ceiling speaker is designed for a wide scope of applications, providing a discreet sound in hotels, restaurants, bars, lounges, training and conference rooms, shopping centres and even at home.
For ELA systems, the CICS 62 is available as a 100 Volt version (CICS 62 100 V) with three taps for 6, 12, and 24 watts.
Technical Specifications
Complete technical specifications and documentation for the CICS 62 by LD Systems
Specifications
| Name | Value |
|---|---|
| Product type | Installation Loudspeakers |
| Type | Ceiling-mounted Loudspeaker |
| Version | Wall and ceiling installation speaker |
| Speaker type | 2-way speaker |
| Color | white |
| Woofer dimensions | 6.5 " |
| Woofer dimensions (mm) | 165 mm |
| Tweeter dimensions | 1.2 " |
| Tweeter dimensions (mm) | 1.2 mm |
| Cut-out measurement | 202 mm |
| Mounting depth | 87 mm |
| Min. Material Thickness | 3 mm |
| Max. Material Thickness | 30 mm |
| Impedance (low-impedance) | 8 Ohm(s) |
| Frequency response | 70 - 20000 Hz |
| Sensitivity (1 W / 1 m) | 88 dB |
| Low-impedance rated load (RMS) | 60 W |
| Depth | 97 mm |
| Diameter | 233 mm |
| Weight | 1,49 kg |
