CIWS 62 LD Systems · Active Loudspeakers
6.5" 2-way In-wall Speaker
Overview
CIWS 62 at a Glance
6.5'' 2-way In-wall Speaker
Description
About the CIWS 62
Manufacturer detail for the CIWS 62 by LD Systems.
Technical Overview

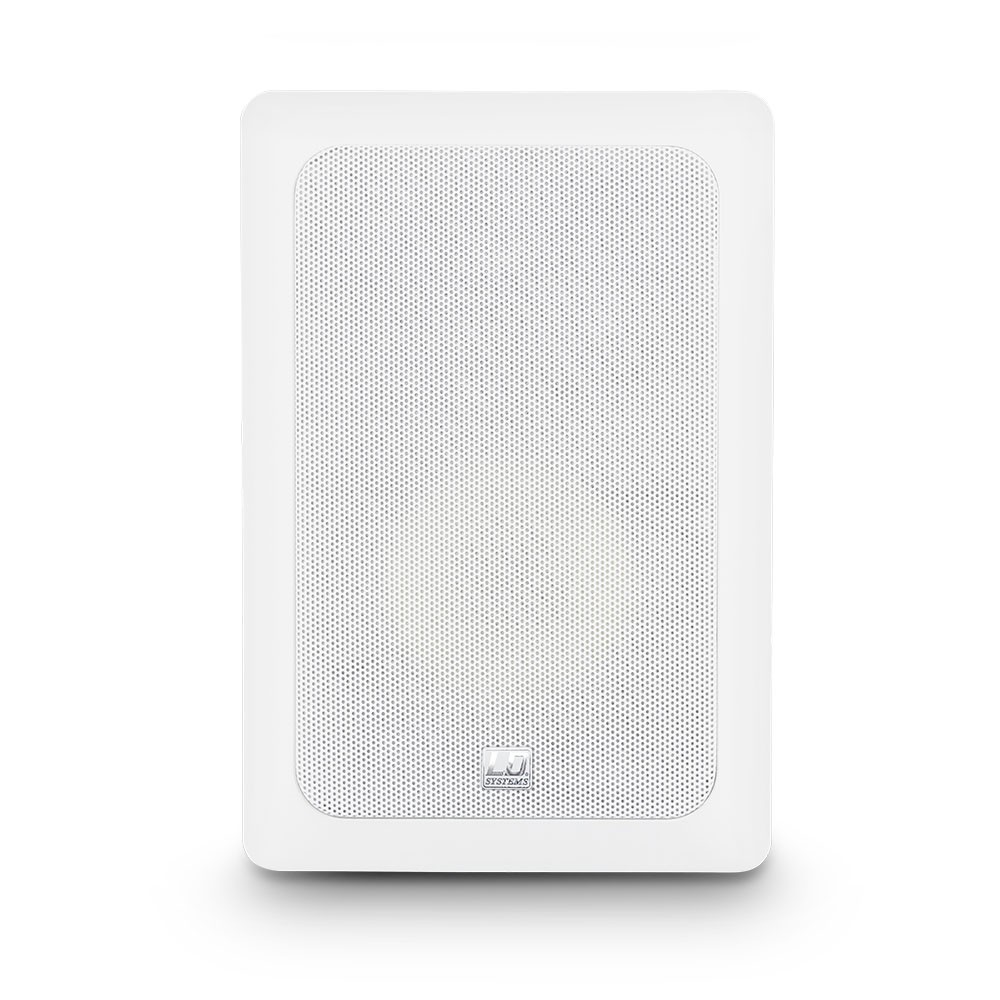

The CONTROCTOR CIWS 62 is a wall speaker with an appealing look for installation in walls. For a powerful performance, it is equipped with a 6.5" woofer and 1.42" tweeter that feature a frequency response up to 20 kHz and high speech intelligibility. The CIWS 62 provides 60 watts of continuous power; the sound pressure level is 88 dB at 1 W /1 m. Secure swivels enable fast and easy assembly. The in-wall speaker is designed for a wide scope of applications, providing an unobtrusive sound in hotels, restaurants, bars, lounges, training and conference rooms, shopping centres and at home.
For ELA systems, the CIWS 62 is available as a 100 Volt version (CIWS 62 100 V) with three taps for 6, 12, and 24 watts.
Specifications
Technical Specifications
Full published figures for the CIWS 62 by LD Systems.
- Product type
- Installation Loudspeakers
- Type
- Wall-mounted Loudspeaker
- Version
- Wall and ceiling installation speaker
- Speaker type
- 2-way speaker
- Color
- white
- Woofer dimensions
- 6.5 "
- Woofer dimensions (mm)
- 165 mm
- Tweeter dimensions
- 1.42 "
- Tweeter dimensions (mm)
- 36 mm
- Cut-out measurement
- 276 x 188 mm
- Mounting depth
- 67 mm
- Min. Material Thickness
- 9 mm
Show all 23 specifications Show fewer specifications
- Max. Material Thickness
- 37 mm
- Impedance (low-impedance)
- 8 Ohm(s)
- Frequency response
- 70 - 20000 Hz
- Sensitivity (1 W / 1 m)
- 88 dB
- Low-impedance rated load (RMS)
- 60 W
- Width
- 305 mm
- Height
- 218 mm
- Depth
- 76 mm
- Weight
- 1,69 kg
- Dimensions (L x W x H)
- 76 x 305 x 218 mm
- Power Consumption
- 60 W
Documentation
Downloads
Datasheets, manuals and drawings for the CIWS 62.
