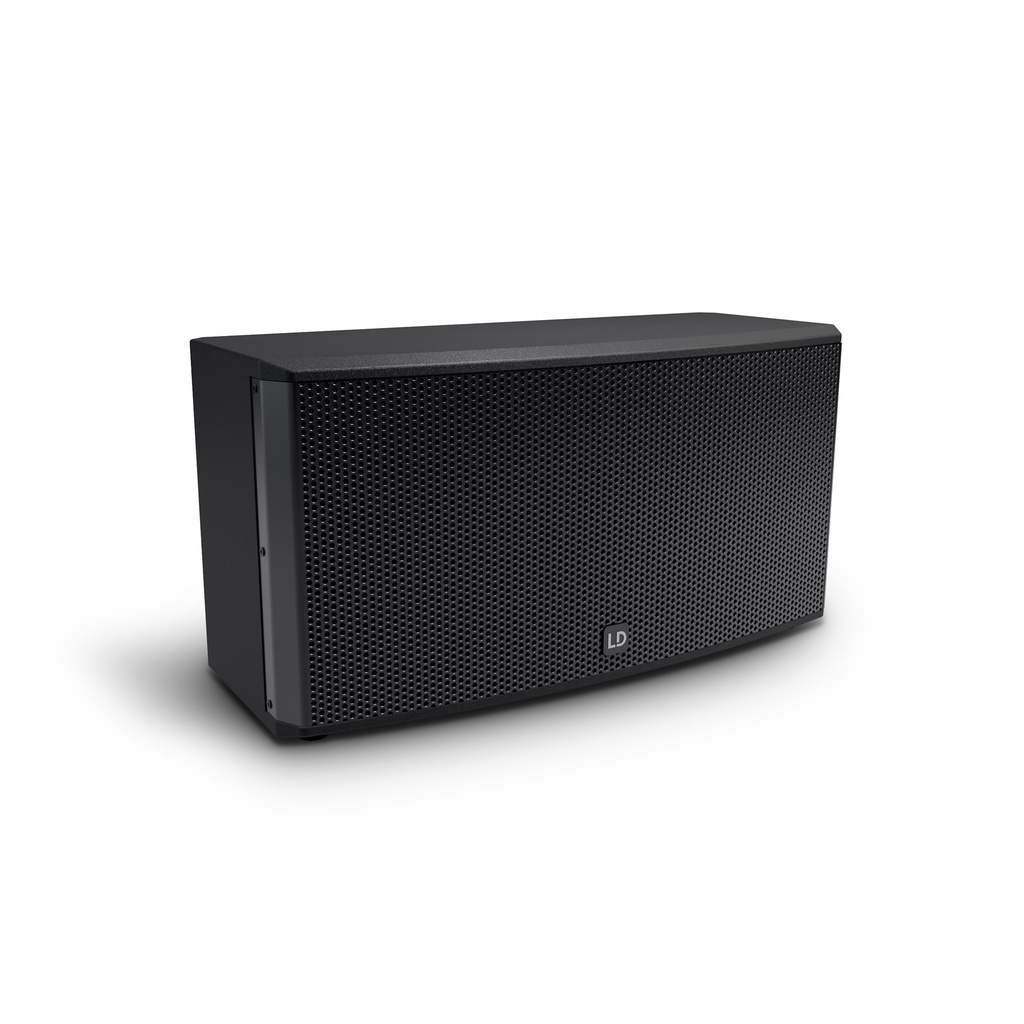

CURV 500 I SUB LD Systems · Passive Subwoofers
10" Installation Subwoofer 200 W Black
Overview
CURV 500 I SUB at a Glance
10'' Installation Subwoofer 200 W Black
Description
About the CURV 500 I SUB
Manufacturer detail for the CURV 500 I SUB by LD Systems.
Technical Overview
Purpose-designed for CURV 500® installations the iSUB is a compact, shallow-depth bass reflex subwoofer loaded with a custom 10" transducer. It features a 47 – 150 Hz frequency response for tight, dynamic low frequency reproduction with punch and definition and 200 watts RMS power handling. Finished in black or white textured paint the elegant cabinet with steel grille provides terminal block and speakON-compatible input connectors plus eight M8 suspension points. The iSUB comes with a low- profile wall and ceiling mounting bracket and a set of rubber feet.
Specifications
Technical Specifications
Full published figures for the CURV 500 I SUB by LD Systems.
- Product type
- PA subwoofer
- Type
- Passive
- Low/mid Woofer dimensions
- 10 "
- Load rating (RMS)
- 200 W
- Frequency response
- 47 - 150
- SPL (1W/1m)
- 93 dB
- Max. SPL
- 110 dB
- Impedance
- 3 Ohm(s)
- Loudspeaker inputs
- 2
- Speaker input connections
- Speakon compatible
- Speakers per amplifier channel (DSP44/45K)
- 2
- Cabinet material
- 15 mm MDF
Show all 21 specifications Show fewer specifications
- Cabinet surface
- texture paint
- Cabinet colour
- Black
- Cabinet construction
- Bass Reflex
- Width
- 610 mm
- Height
- 310 mm
- Depth
- 230 mm
- Weight
- 14,5 kg
- Dimensions (L x W x H)
- 230 x 610 x 310 mm
- Power Consumption
- 200 W
Documentation
Downloads
Datasheets, manuals and drawings for the CURV 500 I SUB.
