CURV 500 PS LD Systems · Passive Column Speakers
Portable Array System Power Set Including Distance Bars & Speaker Cables
Overview
CURV 500 PS at a Glance
LD Systems CURV 500 PS - Portable Array System Power Set Including Distance Bars & Speaker Cables
Description
About the CURV 500 PS
Manufacturer detail for the CURV 500 PS by LD Systems.
Technical Overview
If more power is required, the patented CURV 500® Power Set can provide a power of 920 watts RMS and a maximum sound pressure of 134 dB. Two subwoofers and eight satellites offer all the advantages of the CURV 500® System and have sufficient power reserves for larger events or applications with high power requirements, especially in the bass range.
The compact, transport-friendly CURV 500® is an easily configurable array system with eight interlocking satellites, which are operated via a SmartLink® adapter. The elements, only 12 x 12 cm in size, are equipped with LD System's own WaveAhead® technology, one 4" and three 1" drivers provide a coherent and extremely detailed playback with high pressure and dynamics.
The 10" bass-reflex subwoofer houses the Class D power amplifier and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effect presets and Bluetooth®. Combo, and Speakon-compatible sockets offer extensive connectivity options, and the subwoofer features four digital system presets, an M20 threaded flange and three ergonomic carrying handles. The second subwoofer with its own power amplifier offers identical technical specifications, but does not require any mixer.

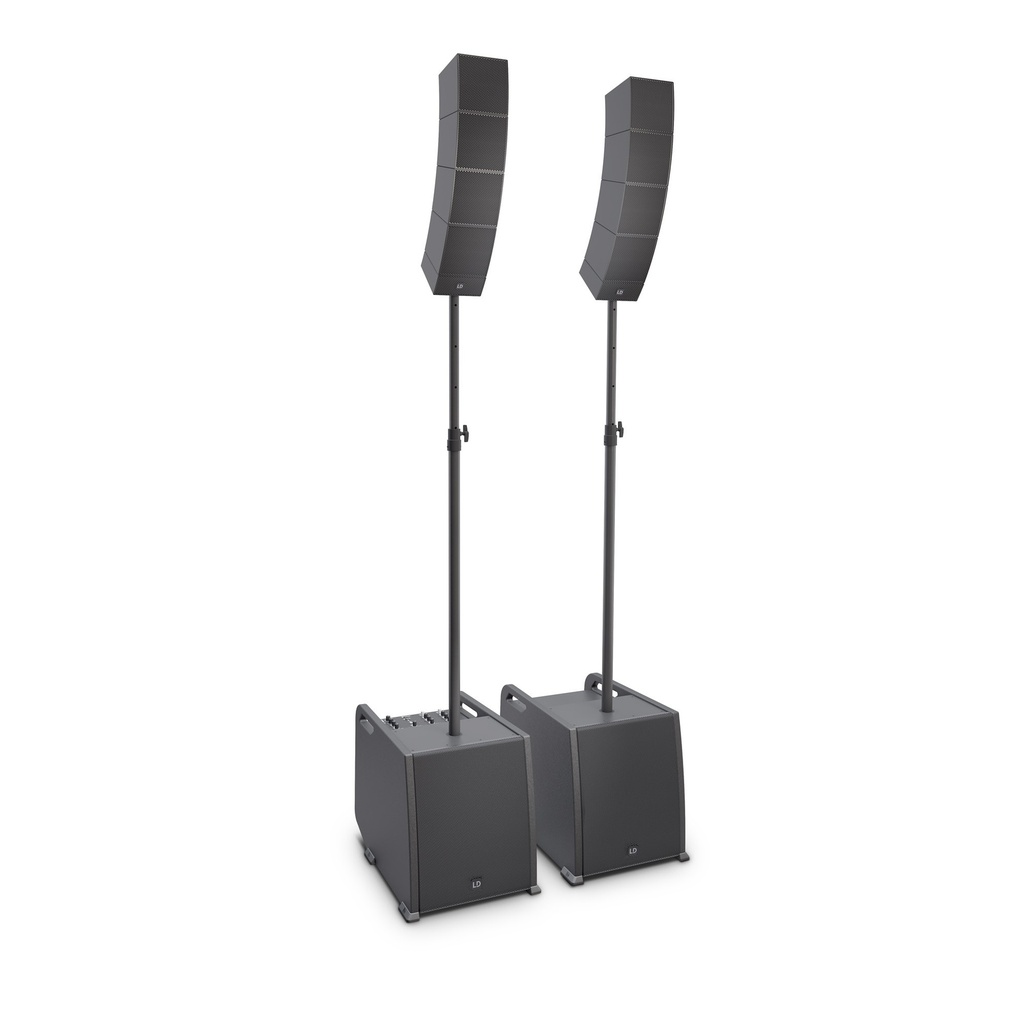

The CURV 500® Power Set includes two subwoofers, one with a mixer unit, eight satellites, two SmartLink® adapters, two extension tubes and matching speaker cables.
Specifications
Technical Specifications
Full published figures for the CURV 500 PS by LD Systems.
- Product type
- PA Complete Systems
- System output (RMS)
- 920 W
- Color
- Black
- Number of array satellites
- 8
- Number of Smartlink adapters
- 2
- Number of subwoofers
- 2
- Max. SPL (continuous)
- 128 dB
- Max. SPL (Peak)
- 134 dB
- Frequency response
- 47 - 20000 Hz
- Dispersion (H x V)
- 110° horizontal, vertical (each satellite) 10 °
- System Power (RMS)
- Subwoofer: 300 W , Array Satellites: 2 x 160 W, Subwoofer Extension 300 W
- Peak power
- Subwoofer: 1200 W , Array Satellites: 2 x 640, Subwoofer Extension: 1200 W
Show all 37 specifications Show fewer specifications
- Amplifier
- Class D
- Protection circuits
- DSP-based multiband limiter
- Weight
- 59,1 kg
- Accessories (included)
- 2 x Distance bar, 2 x Power cable, 2 x Speaker cable CURV 500 CABLE 1 (2.2 m), 5-pin XLR system cable (10 m)
- Low/mid Woofer dimensions
- 10 "
- Woofer dimensions (mm)
- 254 mm
- Cabinet construction
- Bass Reflex
- Cabinet material
- plywood
- Cabinet surface
- PA painting
- Dimensions Subwoofer (W x H x D)
- 325 x 383 x 491 mm
- Subwoofer weight
- 16.5 kg
- Subwoofer features
- 16 DFX Presets, 3 ergonomic handels, 4 channel mixer, 4 System DSP Presets, Bluetooth, Threaded flange M20
- Mid/Hi system
- MF: 1 x 4" / HF: 3 x 1" with WaveAhead® Technology / 16 ohms
- Array Satellite Features
- internal crossover, metal grille, WaveAhead® Technology
- Array Satellite Material
- Die-cast aluminium
- Array Satellite Surface:
- Powder coated
- Array Satellite Dimensions (W x H x D)
- 122 x 122 x 122 mm
- Array Satellite Weight
- 1.7 kg
- Smartlink Adapter Features
- 2 x 16 mm pole mount socket, 2x M6 thread for optional wall mount
- Smartlink Adapter Connectors
- 1 x Speakon-compatible, 1x Phoenix
- Smartlink Adapter Material
- Die-cast aluminium
- Smartlink Adapter Surface
- Powder coated
- Smartlink Adapter Dimensions (W x H x D)
- 122 x 57 x 122 mm
- Smartlink Adapter Weight
- 0.6 kg
- Power Consumption
- 300 W
