LD Systems
CURV 500 SLA T LD Systems

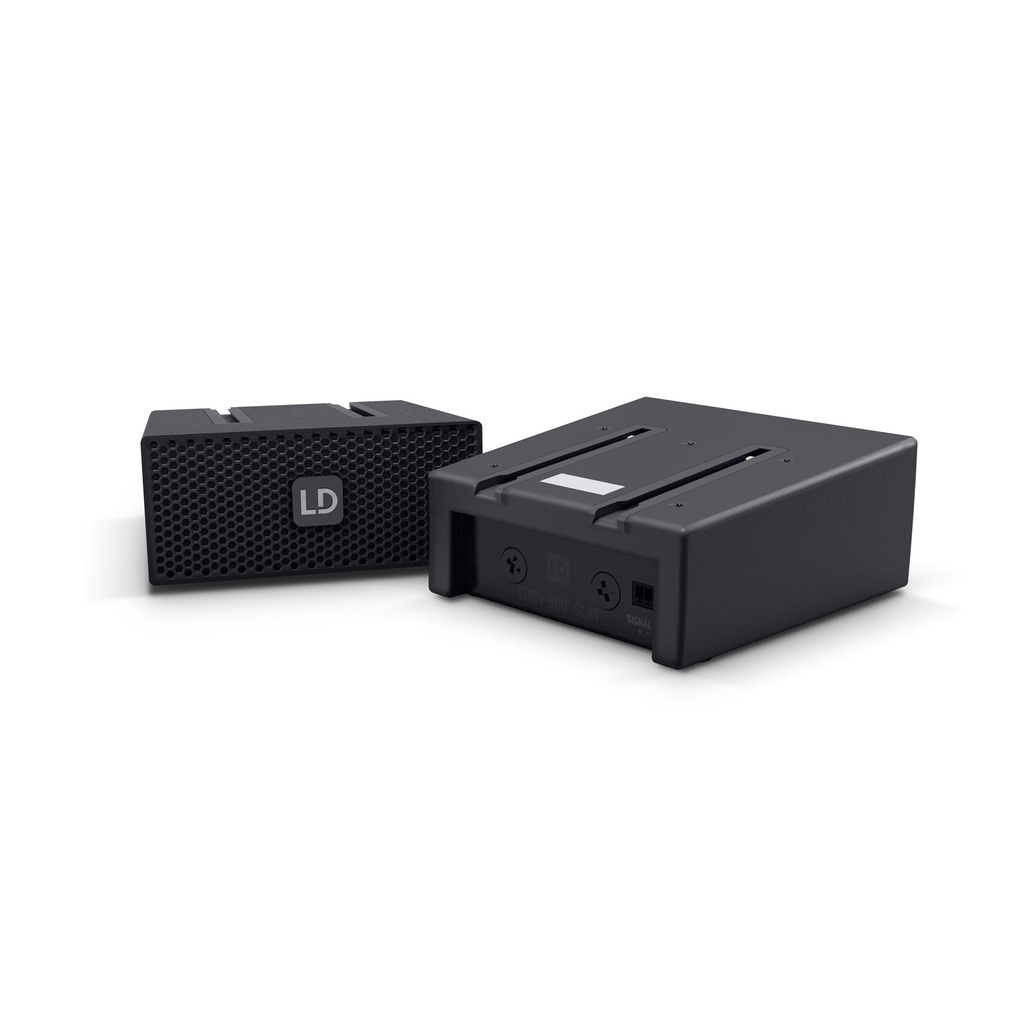

Curv 500® 70 / 100 V SmartLink® Adapter Black
CURV 500 SLA T - Curv 500® 70 / 100 V SmartLink® Adapter Black
Weight
1.15 kg
Dimensions
122 x 122 x 57 mm
Description
About the CURV 500 SLA T
Manufacturer detail for the CURV 500 SLA T by LD Systems.
Technical Overview
This version of the SmartLink® adapter allows up to 4 Curv 500® satellites to be operated as an ELA system with 70 or 100 volts per adapter. It has an input for a 2-pin screw connector. The integrated transformer offers a selection of four 10 to 80 W output taps. The adapter is available in black (LDCURV500SLAT) or white (LDCURV500SLAWT); wall and ceiling holders from the Curv 500® accessory range make for straightforward installation.
Specifications
Technical Specifications
Full published figures for the CURV 500 SLA T by LD Systems.
- Product type
- PA Complete Systems Accessories
- Type
- Smartlink® Adapter
- Material
- Die-cast aluminium
- Surface
- Powder coated
- Connectors
- screw-/plug-in terminal 2 pole
- Color
- Black
- Width
- 122 mm
- Height
- 57 mm
- Depth
- 122 mm
- Weight
- 1,15 kg
- Features
- 2x M6 thread for optional wall/truss mount, 4 x rubber feet for desktop use, SmartLink® System
- Dimensions (L x W x H)
- 122 x 122 x 57 mm
