CURV 500 TS LD Systems · Portable Active Column Speaker
Compact Touring Array System
Description
About the CURV 500 TS
Manufacturer detail for the CURV 500 TS by LD Systems.
Technical Overview

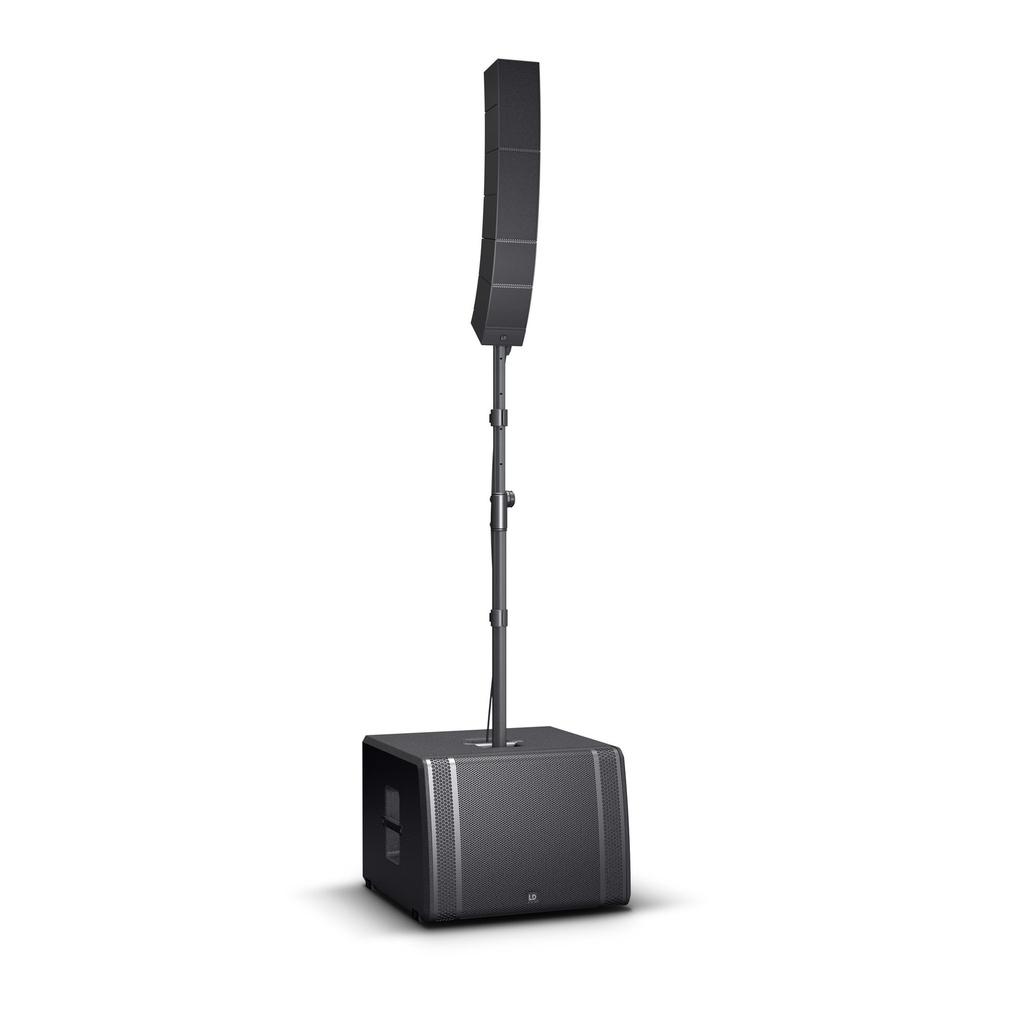

The compact, highly portable CURV 500® Touring Array System is fully scalable with up to four interlocking aluminium unibody line array elements operating on a SmartLink® plug and play adapter. It comes with two standard CURV satellites that feature a single 4" midrange and triple 1" high frequency drivers using LD Systems' WaveAhead® technology, and two duplex satellites with twice the speaker complement.
The ported 15" subwoofer base includes the CURV 500® Touring Array System's class D amplification with multiband limiter, short circuit, thermal and overcurrent protection. It sports comprehensive connectivity on combo and speakON compatible connectors, six DSP presets for quick system configuration, an M20 pole mount and three ergonomic handles for easy portability. Providing impressive versatility, the lightweight CURV 500® Touring Set delivers high definition audio with powerful punch, superb balance and extended vertical and horizontal coverage. The set includes a subwoofer pole and dedicated speaker cable.
Specifications
Technical Specifications
Full published figures for the CURV 500 TS by LD Systems.
- Product type
- PA Complete Systems Accessories
- System output (RMS)
- 1000 W
- Number of array satellites
- 4
- Number of Smartlink adapters
- 1
- Number of subwoofers
- 1
- Max. SPL (continuous)
- 125 dB
- Color
- Black
- Max. SPL (Peak)
- 131 dB
- Frequency response
- 40 - 20000 Hz
- Dispersion (H x V)
- 110° horizontal, vertical 34 °
- RMS
- Subwoofer: 700 W , Array Satellites: 300 W
- Peak power
- 80 W
Show all 43 specifications Show fewer specifications
- Amplifier
- Class D
- Weight
- 0,35 kg
- Protection circuits
- DSP-based multiband limiter, overload, Short circuit, thermal overload
- Accessories (included)
- Distance bar, Power cord, Speaker cable CURV 500 CABLE 1 (2.2 m)
- Low/mid driver dimensions
- 15 "
- Low/mid driver dimensions (mm)
- 381 mm
- Cabinet construction
- Bass Reflex
- Housing material
- plywood
- Cabinet surface
- Polyurea
- Dimensions Subwoofer (W x H x D)
- 600 x 437 x587 mm
- Subwoofer weight
- 35.5 kg
- Subwoofer features
- 4 ergonomic handels, 6 System DSP Presets, Powercon, speakON output, Threaded flange M20
- Type
- Smartlink® Adapter
- Midrange dimensions
- 1 x 4 "
- Tweeter dimensions
- 3 x 1 "
- Load rating (RMS)
- 40 W
- Dispersion
- 110° horizontal, vertical (each satellite) 10 °
- Impedance
- 16 Ohm(s)
- SPL (1W/1m)
- 88 dB
- Max. SPL
- 104 dB
- Material
- Die-cast aluminium
- Surface
- Powder coated
- Width
- 122 mm
- Height
- 57 mm
- Depth
- 57 mm
- Speakers per amplifier channel (DSP44/45K)
- 8x1, 4x2, 2x3, 2x4, 5, 6 (LOW Z)
- Weight (pair)
- 3.44 kg
- Features
- 2 x 16 mm flanges , 2x M6 thread for optional wall mount
- Connectors
- 1x Phoenix , 1x Speakon compatible
- Dimensions (L x W x H)
- 57 x 122 x 57 mm
- Power Consumption
- 40 W
