CWMS 52 W 100 V LD Systems · Passive Loudspeakers
5.25" 2-way Wall Mount Speaker 100 V white (pair)
Overview
CWMS 52 W 100 V at a Glance
5.25'' 2-way Wall Mount Speaker 100 V white (pair)
Description
About the CWMS 52 W 100 V
Manufacturer detail for the CWMS 52 W 100 V by LD Systems.
Technical Overview

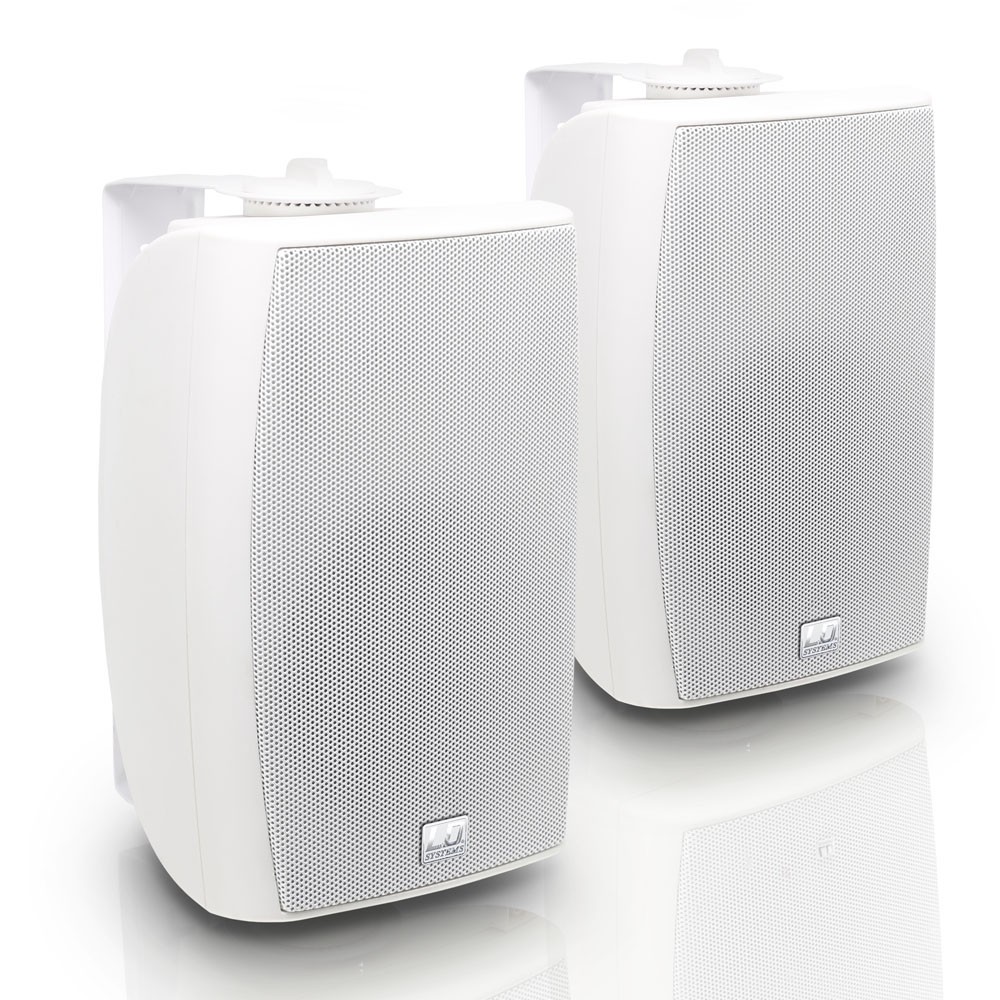

The CONTRACTOR CWMS 52 is a wall speaker with an appealing look equipped with a 5.25" woofer and a 1.2" tweeter. Its frequency response extends to 20 kHz; the sound pressure level is 88 dB at 1 W /1 m. The CWMS 52 provides 30 watts of continuous power and is characterised by a high degree of speech intelligibility. It is designed for a wide scope of applications, providing an unobtrusive sound in hotels, restaurants, bars, lounges, training and conference rooms, shopping centres and at home. It is available in white (CWMS 52 W) and black (CWMS 52 B).
For ELA systems, both versions are also available as 100 Volt versions (CWMS 52 W 100 V, CWMS 52 B 100 V).
As bass extension, we recommend the CIW SUB 10.
Specifications
Technical Specifications
Full published figures for the CWMS 52 W 100 V by LD Systems.
- Product type
- Installation Loudspeakers
- Type
- Wall-mounted Loudspeaker
- Version
- Wall-mounted Loudspeaker
- Speaker type
- 2-way speaker
- Color
- white
- Woofer dimensions
- 5.25 "
- Woofer dimensions (mm)
- 133 mm
- Tweeter dimensions
- 1.2 "
- Tweeter dimensions (mm)
- 30 mm
- Impedance (low-impedance)
- 8 Ohm(s)
- 100 V Inputs
- 10 W, 2.5 W, 20 W, 5 W
- Frequency response
- 80 - 20000 Hz
Show all 20 specifications Show fewer specifications
- Sensitivity (1 W / 1 m)
- 88 dB
- Low-impedance rated load (RMS)
- 30 W
- Width
- 294 mm
- Height
- 180 mm
- Depth
- 160 mm
- Weight
- 4,87 kg
- Dimensions (L x W x H)
- 160 x 294 x 180 mm
- Power Consumption
- 30 W
Documentation
Downloads
Datasheets, manuals and drawings for the CWMS 52 W 100 V.
