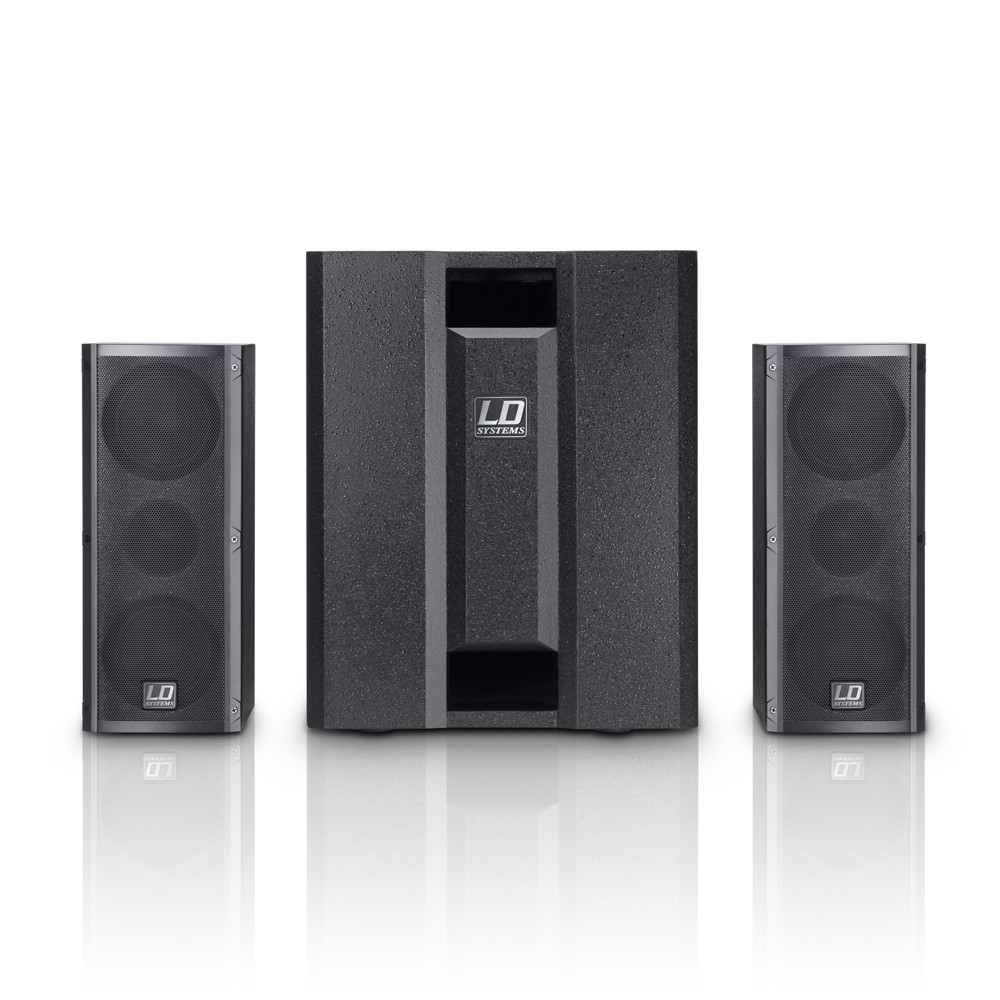

LD Systems DAVE 8 ROADIE
LD Systems

DAVE 8 ROADIE LD Systems · Passive Column Speakers

Portable active PA system with 3-Channel mixer

DAVE 8 ROADIE - Portable active PA system with 3-Channel mixer
Power
350 W
Weight
4.2 kg
Dimensions
170 x 150 x 350 mm
Request a Quote Manufacturer
Audio Passive Column Speakers
Reference LDDAVE8ROADIE Brand LD Systems
  • Description
  • Specifications
  • Downloads
  • Accessories
  • Related

Description

About the DAVE 8 ROADIE

Manufacturer detail for the DAVE 8 ROADIE by LD Systems.

Technical Overview

With the DAVE 8 Roadie, LD Systems are successfully implementing their motto "pro audio in motion". This complete PA system with its powerful 1400-watt (Peak) power amp delivers astounding performance for mobile applications. The system is equipped with a high-performance 8" band-pass subwoofer and two satellite speakers (2 x 4" + 1") and was designed as a flexible and portable mini PA system especially for musicians.

The DAVE 8 Roadie features three different inputs, which can be used simultaneously. One channel has a combo socket (XLR/jack) for dynamic microphones. One channel offers dual RCA connectors for computers as well as a combo socket (XLR/jack) for mixers or keyboards. Finally, the third channel has a 3.5 mm stereo and a 6.3 mm mono jack input for MP3 players or guitars with a switch for selecting the desired input. The high-performance Class A/B power amp module integrated in the subwoofer powers both the subwoofer and the satellites.

The systems features all of the usual protection circuits. The built-in limiter keeps the system safe from overload and ensures a long service life. On the side of the subwoofer, in addition to an ON/OFF switch and a phase reverse switch (180°), there is a separate subwoofer volume knob that allows you to find the perfect mix of brilliant treble, punchy mids, and powerful bass.

Sturdy front grilles and ergonomic handles on both the subwoofer and the satellites underscore the roadworthiness of the DAVE 8 Roadie and make the system an ideal companion for musicians.

Specifications

Technical Specifications

Full published figures for the DAVE 8 ROADIE by LD Systems.

Weight
29,1 kg
Product type
PA Complete Systems
Color
Black
Max. SPL (continuous)
117 dB
Max. SPL (Peak)
123 dB
Frequency response
45 - 19000
Dispersion (H x V)
60 x 60 °
Low/mid Woofer dimensions
8 "
Woofer dimensions (mm)
203 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil (inch)
1.5 "
Show all 62 specifications Show fewer specifications
Woofer voice coil (mm)
38.1 mm
Cabinet construction
Bandpass
Cabinet material
MDF
Cabinet surface
painted
Subwoofer width
352 mm
Subwoofer height
430 mm
Subwoofer depth
434 mm
Subwoofer features
limiter, threaded flange M20, transport handle
Midrange dimensions
2 x 4 "
Midrange dimensions (mm)
2 x 101.6 mm
Midrange magnet
Ferrite
Midrange brand
Custom-made
Midrange voice coil
25.4 mm
Horn
radial
Tweeter dimensions
1 "
Tweeter dimensions (mm)
25.4 mm
Tweeter magnet
Ferrite
Tweeter brand
Custom-made
Tweeter voice coil
1 "
Tweeter voice coil (mm)
25.4 mm
Mid/Hi system impedance
4 Ohm(s)
Loudspeaker inputs
1
Speaker input connections
Speakon compatible
Cabinet construction mid/high
Closed
Mid/Hi system cabinet material
MDF
Mid/Hi system cabinet surface
painted
Mid/Hi system width
150 mm
Mid/Hi system height
350 mm
Mid/Hi system depth
170 mm
Mid/Hi system weight
4.2 kg
Mid/Hi system features
16 mm flange, metall front grille, transport handle
Amplifier
Class A/B
Amplifier output system (RMS)
350 W
Amplifier output system (peak)
1400 W
Protection circuits
limiter, over-current, Short circuit
Cooling
heat sink
Controls
input switch (MP3 / Hi-Z), Line level, Main level, Mic level, MP3 / Hi-Z level, On / Off, Sub level, Subwoofer Phase Reverse
Indicators
Power, Protect (protection circuit engaged)
Operating voltage
220 V AC - 240 V AC
Line inputs
3
Line input connectors
6.3 mm jack, RCA, XLR
Mic inputs
6.3 mm jack, XLR
MP3 inputs
1
MP3 input connectors
3.5 mm jack
Hi-Z inputs
1
Hi-Z input connectors
6.3 mm jack
Loudspeaker outputs
2
Speaker output connections
Speakon compatible
Dimensions (L x W x H)
170 x 150 x 350 mm
Power Consumption
350 W

Documentation

Downloads

Datasheets, manuals and drawings for the DAVE 8 ROADIE.

Operation & Maintenance Manual PDF

Compatible

Accessories for the DAVE 8 ROADIE

Add-ons and spares that fit this product.

LD Systems LDD8SUBBAG LD Systems LDD8SUBBAG Protective Cover for DAVE 8 Subwoofer LD Systems LDFX300 LD Systems LDFX300 2-Channel Pedal with 16 Digital Effects LD Systems LDSATWMB10B LD Systems LDSATWMB10B Wall Mount for Speakers, Black
