MEI 100 G2 LD Systems · Wireless Systems
In-Ear Monitoring System wireless
Description
About the MEI 100 G2
Manufacturer detail for the MEI 100 G2 by LD Systems.
Technical Overview

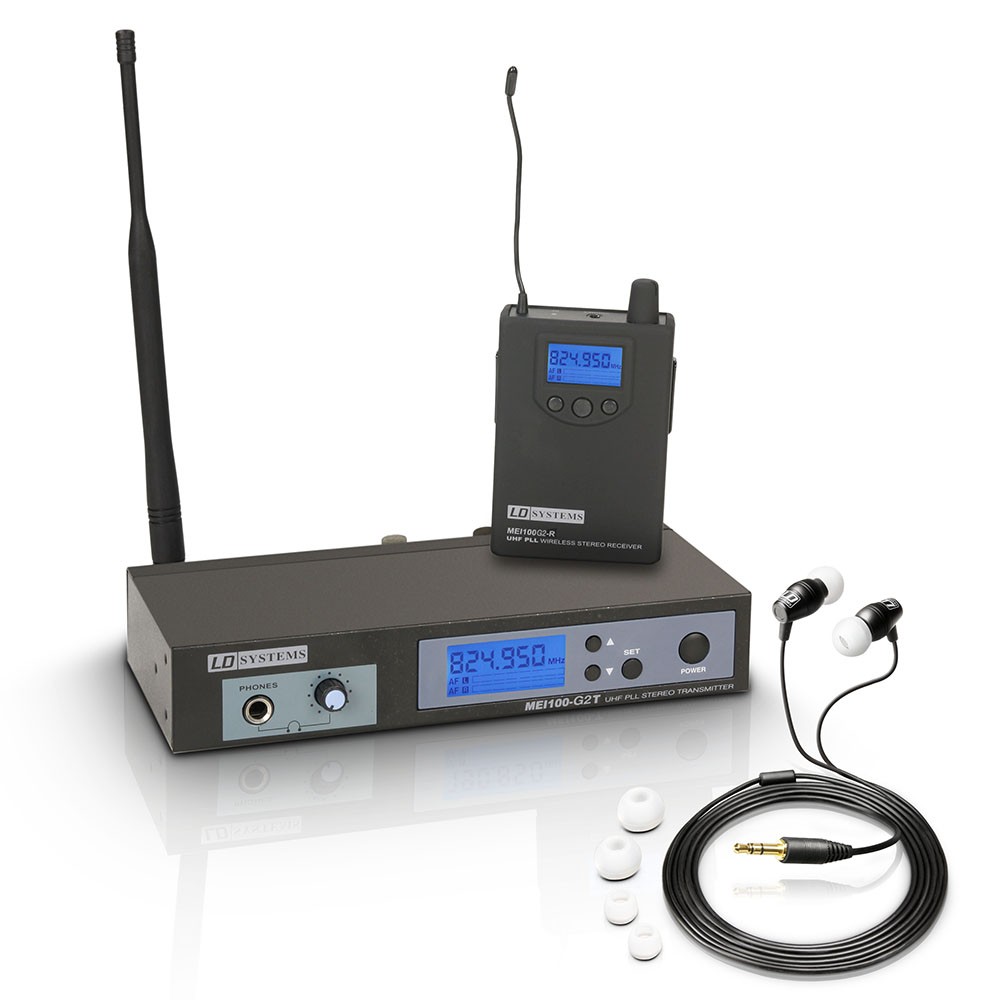

The new LD Systems MEI 100 G2 In-Ear Monitoring-System with 96 UHF channels offers outstanding sound quality and a large dynamic range in the 823 – 832 and 863 – 865 MHz bands.The system toggles between mono and stereo mode for perfect monitoring for live musicians, actors or speakers. A built-in limiter ensures even, distortion-free sound reproduction with a frequency response of 80Hz - 15 kHz and stands out because of its high signal-to-noise ratio and low total harmonic distortion. The LD MEI 100 G2 permits simultaneous operation of up to 5 systems.Both transmitter and receiver feature multifunctional displays that show all important system information. With high quality batteries, it is possible to attain running times of 10 hours and more. The MEI 100 G2 package includes high-quality earphones, a 19" rackmount kit, and a rugged transport box made of ABS plastic.* license-free: ISM band license-free in Europe, please check duplex gap for your specific country
Specifications
Technical Specifications
Full published figures for the MEI 100 G2 by LD Systems.
- Product type
- In-ear Monitoring Accessories
- Transmission frequency range
- 823 - 832 MHz, 863 - 865 MHz
- Type
- Transmitters
- Channels
- 96 (8 groups of 12 channels)
- Transmission method
- FM, stereo
- Frequency response
- 80 - 15000
- Total Harmonic Distortion (THD)
- 0.25 %
- Audio output
- 3.5 mm TRS
- Max. audio output level
- 100 mW
- Operating time
- > 10 h
- Controls
- AF Level (left/right) , Down , mono/stereo , Power , Set , Up , volume headphone
- Indicators
- LC display
Show all 26 specifications Show fewer specifications
- Power supply
- 12 - 18 V DC
- Features
- incl. batteries
- Width
- 212 mm
- Height
- 38 mm
- Depth
- 90 mm
- Weight
- 1,015 kg
- Modes of operation
- mono/stereo
- Rated HF output power
- 10 mW
- Inputs
- 2
- Input connectors
- 6.3 mm jack , XLR
- Input impedance (kOhms)
- 8.5 kOhm
- Antenna connector
- BNC
- Accessories (included)
- Antenna , Power supply
- Dimensions (L x W x H)
- 90 x 212 x 38 mm
