A55TW Martin Audio · Passive Loudspeakers

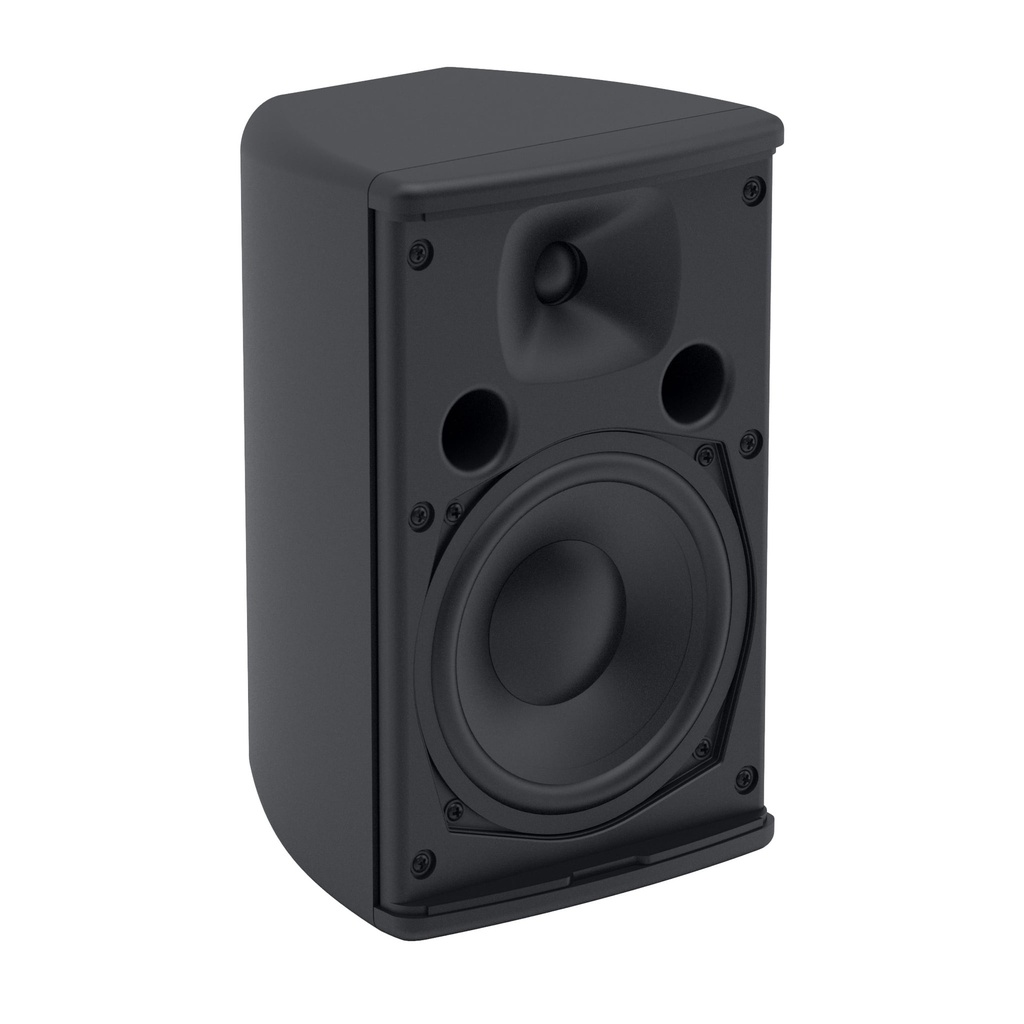

5.25" Passive Two-way on-wall Loudspeaker with 70/100V Transformer White
The ADORN A55T is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high-fidelity sound from an unobtrusive, ultra-compact enclosure. It brings class-leading performance, reliability and value to a wide range of commercial sound applications — from retail outlets, bars and restaurants to corporate offices and convention centres.
Overview
A55TW at a Glance
5'' Compact Passive 2 Way Installation Speaker In White With 70V/100X Xfrmr, Priced Each Ships In Pairs
Description
About the A55TW
Manufacturer detail for the A55TW by Martin Audio.
Technical Overview
The A55T is the perfect choice for background and foreground systems which require superior performance. Its Martin Audio signature sound characteristic also provides a seamless sonic transition within a multi-zoned complex using larger Martin Audio systems such asCDDorBlacklineX. Comprising a 5.25
Specifications
Technical Specifications
Full published figures for the A55TW by Martin Audio.
- TYPE
- Ultra-Compact passive two-way system, front ported bass reflex
- FREQUENCY RESPONSE (1)
- 90Hz-17kHz ± 3dB -10dB @ 65
- DRIVERS
- LF: 5.25” /1” high-temp voice coil, coated paper, cone, rubber surround, ferrite motor, pressed steel chassis HF: 0.75” silk dome, neodymium motor
- RATED POWER (2)
- 50W AES, 200W peak
- RECOMMENDED AMPLIFIER
- VIA5002 [In conjunction with suitable line transformer]
- SENSITIVITY (4)
- 90dB/1W/1m
- MAXIMUM SPL (9)
- 113dB peak
- NOMINAL IMPEDANCE
- 16Ω
- DISPERSION (-6dB)
- 110° H x 80° V
- CROSSOVER
- 3.5kHz passive (LF and HF auto-resetting fuses)
- TRANSFORMER TAPS
- 70V: 30w / 15w / 7.5w / 3.75w 100V: 30w / 15w / 7.5w
- RECOMMENDED HIGH-PASS FILTER
- 60Hz 24dB/oct
Show all 20 specifications Show fewer specifications
- ENCLOSURE
- ABS, UL 94V-0 rated
- FINISH
- Black or white
- GRILLE
- Perforated steel
- IP RATING
- IP54 when fitted with optional weatherised connector cover
- CONNECTORS
- Push terminals
- FITTINGS
- Wall bracket included

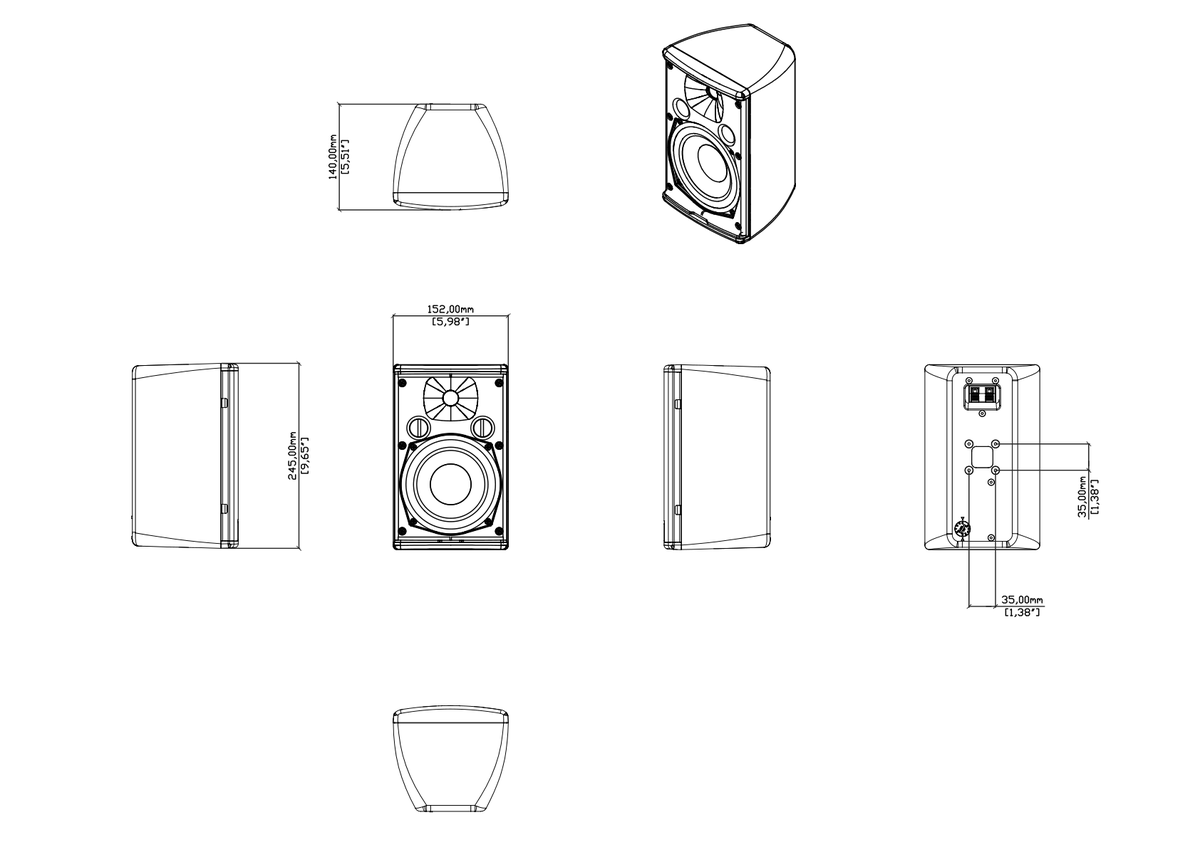

- DIMENSIONS EXCL. BRACKET
- (W) 152mm x (H) 245mm x (D) 140mm (W) 6in x (H) 9.6in x (D) 5.5in
- WEIGHT
- 2.81kg (6.2lbs)
