ACP-55TB Martin Audio · Passive Loudspeakers
5.25" Passive Two-way Pendant Ceiling Speaker Black
As part of the ADORN commercial loudspeaker series, the ACP-55T is a compact, two-way pendant loudspeaker designed for background and foreground applications hat require premium performance and cost competitiveness in spaces with open ceiling architecture.
Overview
ACP-55TB at a Glance
The ACP-55T is a compact, two-way pendant loudspeaker designed for background and foreground applications hat require premium performance and cost competitiveness in spaces with open ceiling architecture.
Description
About the ACP-55TB
Manufacturer detail for the ACP-55TB by Martin Audio.
Technical Overview
The ACP-55Tbrings full-frequency response, consistent coverage and intelligibility to a wide range of architectural environments — from hotel atriums and exhibition spaces to retail outlets, bars and restaurants. Comprising a 5.25” (135mm) LF driver and a 0.75” (19mm) silk-dome tweeter, the ACP-55T
Specifications
Technical Specifications
Full published figures for the ACP-55TB by Martin Audio.
- TYPE
- Passive two-way pendant speaker, ported bass reflex
- FREQUENCY RESPONSE (1)
- 98Hz-20kHz ± 3dB -10dB @ 56Hz
- DRIVERS
- LF: 5.25” /1” high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis HF: 0.75” silk dome, neodymium motor
- RATED POWER (2)
- 50W AES, 200W peak
- RECOMMENDED AMPLIFIER
- VIA2004 (for low-impedance operation)
- SENSITIVITY (4)
- 86dB / 1W(4V) / 1m (full space)
- MAXIMUM SPL (9)
- 109dB peak
- NOMINAL IMPEDANCE
- 16Ω
- DISPERSION (-6dB)
- 150° conical up to 7kHz
- CROSSOVER
- 3kHz passive (LF and HF auto-resetting fuses
- TRANSFORMER TAPS
- 70V: 30w / 15w / 7.5w / 3.75w 100V: 30w / 15w / 7.5w
- RECOMMENDED HIGH-PASS FILTER
- 60Hz 24dB/oct
Show all 19 specifications Show fewer specifications
- ENCLOSURE
- UL 94V-0 rated ABS baffle and enclosure
- FINISH
- Black or white
- GRILLE
- Perforated steel, powder-coated, bayonet fitting
- CONNECTORS
- Ceramic connector (in and link)

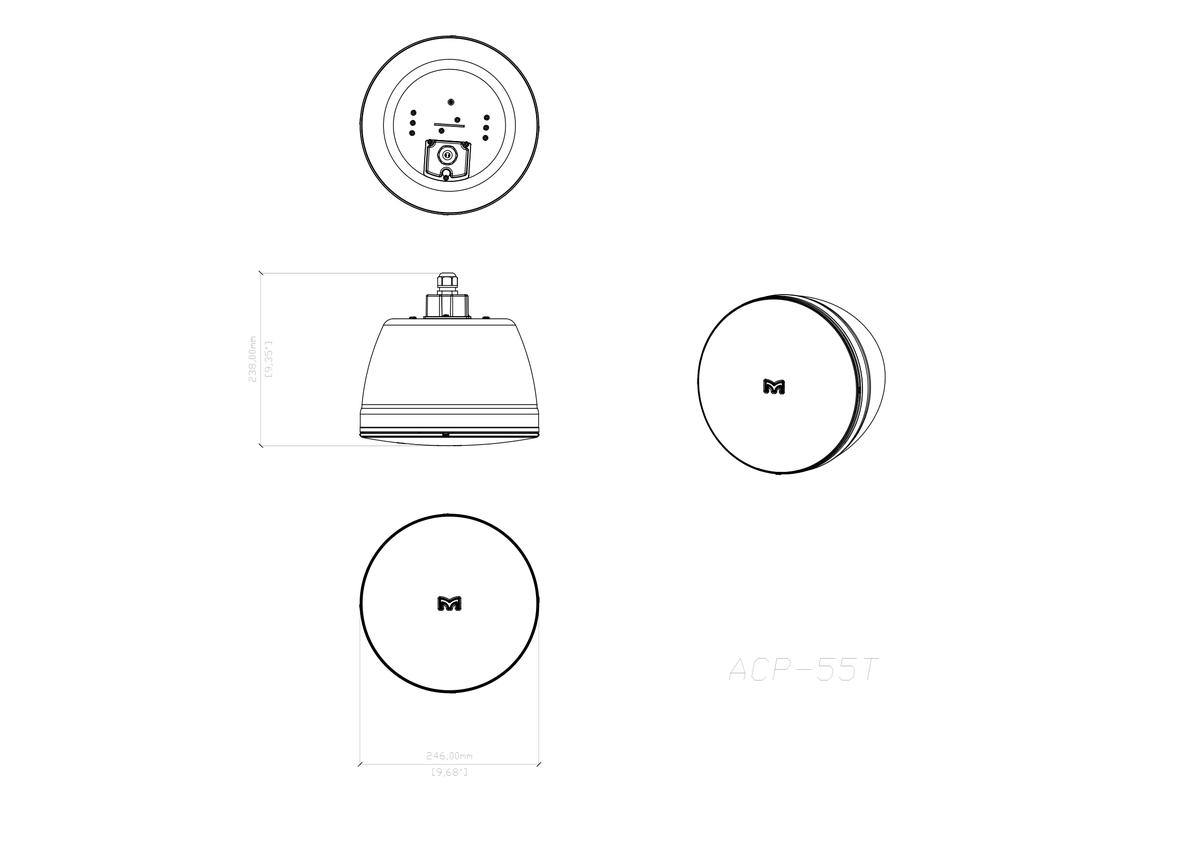

- DIMENSIONS
- (OD) 246mm x (D) 238mm (OD) 9.7in x (D) 9.35in
- WEIGHT
- 3.46kg (7.62lbs)
- Power Consumption
- 50 W
