C8.1T Martin Audio · Passive Loudspeakers

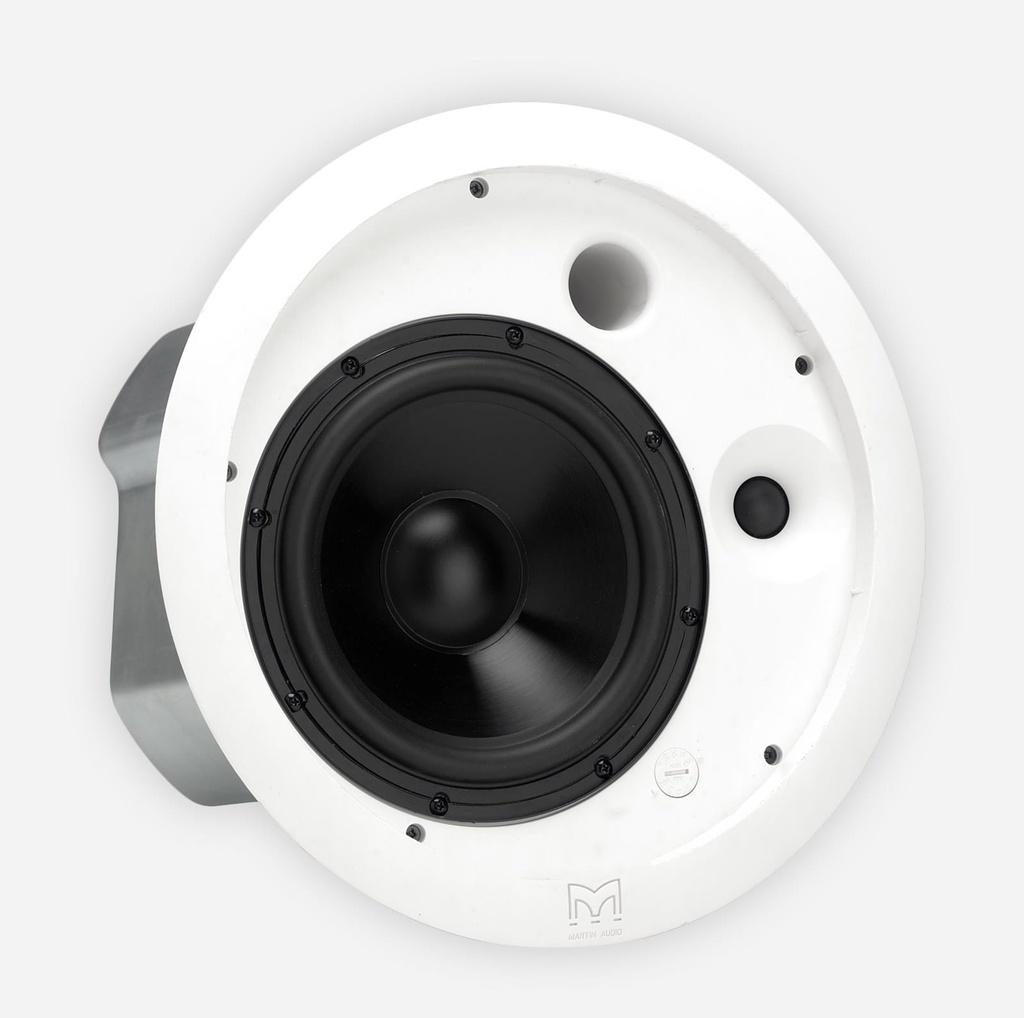

8-inch ceiling loudspeaker with transformer.
The C8.1T has been specifically designed for higher ceilings where its high SPL capability and controlled 90° dispersion enable it to provide excellent intelligibility in more reverberant rooms. It features an 8" (200mm) unit with a carbon fibre loaded, polypropylene cone and a 1" (25mm) horn-loaded dome tweeter mounted side-by-side for optimum dispersion and smooth response off-axis.
Power
125 W
Weight
6.7 kg
Overview
C8.1T at a Glance
8'' Ceiling Speaker U/L Approved
Description
About the C8.1T
Manufacturer detail for the C8.1T by Martin Audio.
Technical Overview
The enclosure is ported to extend the low frequency performance and the 5-point mounting system ensures that installation is fast and secure. Input and link terminals make paralleling units a simple operation and a steel cover plate protects the input connector against fire. These products comply w
Specifications
Technical Specifications
Full published figures for the C8.1T by Martin Audio.
- TYPE
- Ceiling mounted, two-way vented enclosure
- FREQUENCY RESPONSE (5)
- 80Hz-18kHz ± 3dB -10dB @ 50Hz
- DRIVER
- 8" (200mm) UL94V-0 PP bass driver 1" (25mm) dome tweeter
- RATED POWER (2)
- 125W AES, 500W peak
- SENSITIVITY (8)
- 91dB
- MAXIMUM SPL (9)
- 110dB continuous, 116dB peak
- NOMINAL IMPEDANCE
- 16Ω
- DISPERSION (-6dB)
- 90° conical up to 7kHz
- CROSSOVER
- 3kHz passive
- ENCLOSURE
- Steel backcan
- FINISH
- Bezel & grille – white UV resistant (Overpaintable) Backcan – zinc plated
- PROTECTIVE GRILLE
- Perforated steel
Show all 19 specifications Show fewer specifications
- CONNECTORS
- Rising clamp plug and socket
- ACCESSORIES (included)
- 60W 70/100V line transformer Tile rails C bracket Paint mask Cut-out template
- VOLTAGE TAPS
- 100V – 60W, 30W, 15W 70V – 60W, 30W, 15W, 7.5W
- DIMENSIONS
- (OD) 354mm x (D) 258mm (OD) 13.9ins x (D) 10.2ins
- CUT-OUT DIAMETER
- 308mm (12.14 ins)
- WEIGHT
- 6.7kg (14.8lbs)
- Power Consumption
- 125 W
