Martin Audio
CDD10B Martin Audio · Passive Loudspeakers
10" Compact coaxial differential dispersion loudspeaker system. Black
Power
250 W
Overview
CDD10B at a Glance
10'' CDD Speaker Black
Specifications
Technical Specifications
Full published figures for the CDD10B by Martin Audio.
- TYPE
- Compact, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE (5)
- 65Hz-20kHz ± 3dB, -10dB @ 55Hz
- DRIVER
- LF: 10” (250mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor with HF HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver
- RATED POWER (2)
- 250W AES, 1000W peak
- SENSITIVITY (8)
- 96dB
- MAXIMUM SPL (9)
- 120dB continuous, 126dB peak
- NOMINAL IMPEDANCE
- 8Ω
- DISPERSION (-6dB)
- 110˚-75˚ horizontal, 60˚ vertical (user-rotatable)
- CROSSOVER
- 2kHz passive
- ENCLOSURE
- 28 litre, composite material
- FINISH
- Black or white textured paint
- PROTECTIVE GRILLE
- Black or white perforated steel with scrim cloth backing
Show all 18 specifications Show fewer specifications
- CONNECTORS
- Low profile 20A push-lock
- PIN CONNECTIONS
- Left to right: Input+, Input -, Link -, Link+
- FITTINGS
- 6 x M8 inserts for wall bracket 10 x M8 fly points

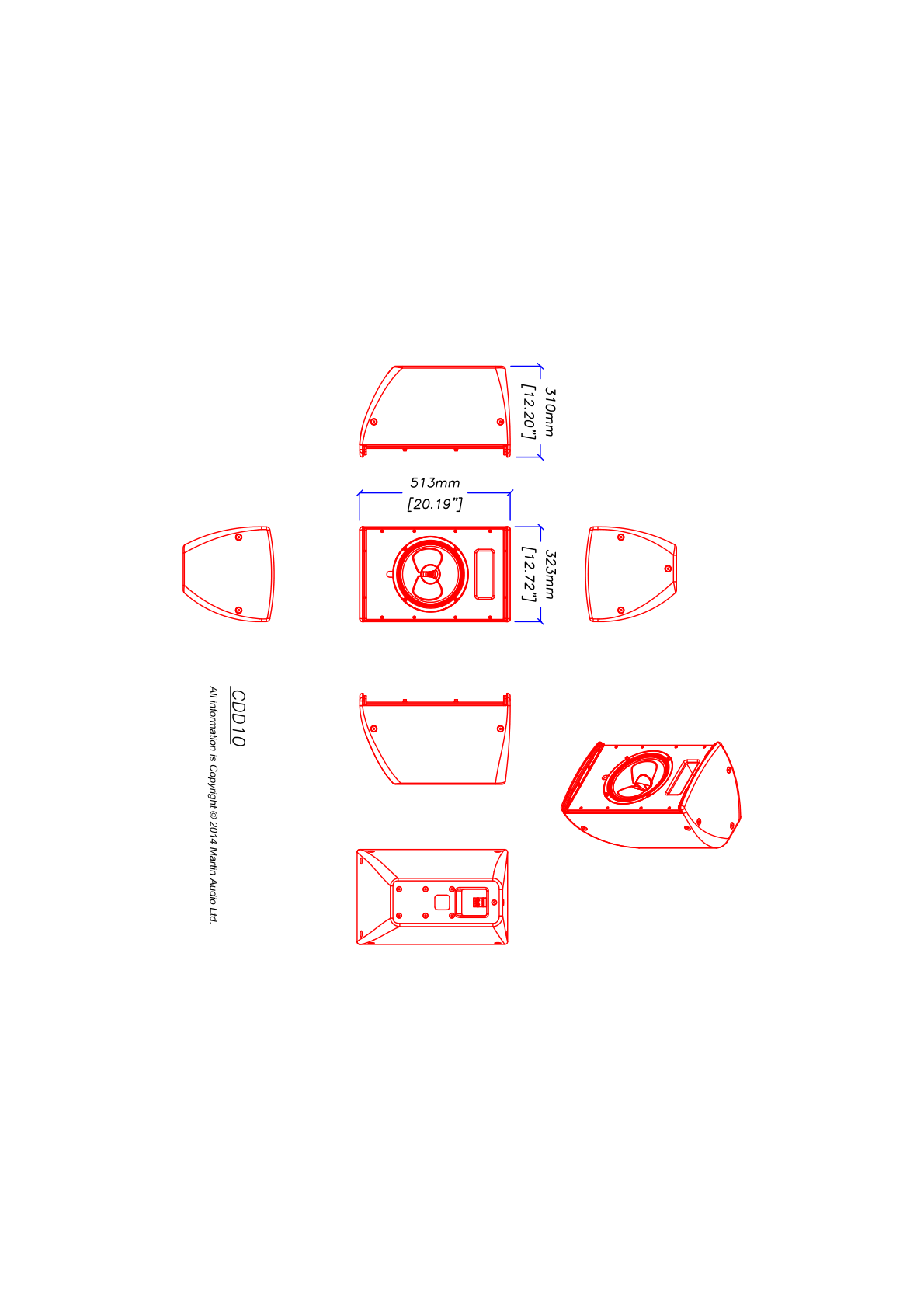

- DIMENSIONS
- (W) 323mm x (H) 513mm x (D) 310mm (W) 12.7ins x (H) 20.2ins x (D) 12.2ins
- WEIGHT
- 15.3kg (33.7lbs)
- Power Consumption
- 250 W
