CDD10B-WR Martin Audio · Passive Loudspeakers
10" Passive Coaxial Differential Dispersion Outdoor On-wall Loudspeaker
The CDD10-WR is a weatherised very compact two-way passive loudspeaker system suitable for outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. It utilises a 10” (250mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver and features a water and particle resistant grille made from zinc plated mild steel with powder coated finish and is suitable for operating temperatures between -20°C to +70°C and environmentally tested to meet IP54.
Overview
CDD10B-WR at a Glance
10'' CDD Speaker WR Black
Description
About the CDD10B-WR
Manufacturer detail for the CDD10B-WR by Martin Audio.
Technical Overview
The Coaxial Differential Dispersion technology employed in the CDD10-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD dri
Specifications
Technical Specifications
Full published figures for the CDD10B-WR by Martin Audio.
- TYPE
- Compact, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE (5)
- 65Hz-20kHz ± 3dB -10dB @ 55Hz
- DRIVER
- LF: 10” (250mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver
- RATED POWER (2)
- 250W AES, 1000W peak
- SENSITIVITY (8)
- 96dB
- MAXIMUM SPL (9)
- 120dB continuous, 126dB peak
- NOMINAL IMPEDANCE
- 8Ω
- DISPERSION (-6dB)
- 110˚-75˚ horizontal, 60˚ vertical (user-rotatable)
- CROSSOVER
- 2kHz passive
- ENCLOSURE
- 28 litre, composite material
- FINISH
- Black or white as standard
- PROTECTIVE GRILLE
- Zinc plated mild steel with powder coated finish and weatherised backing
Show all 19 specifications Show fewer specifications
- ENVIRONMENTAL
- Rated at IP54
- CONNECTORS
- Low profile 20A push-lock, weatherproof input panel cover with cable gland
- PIN CONNECTIONS
- Left to right: Input+, Input -, Link -, Link+
- FITTINGS
- 6 x M8 inserts for wall bracket 10 x M8 fly points

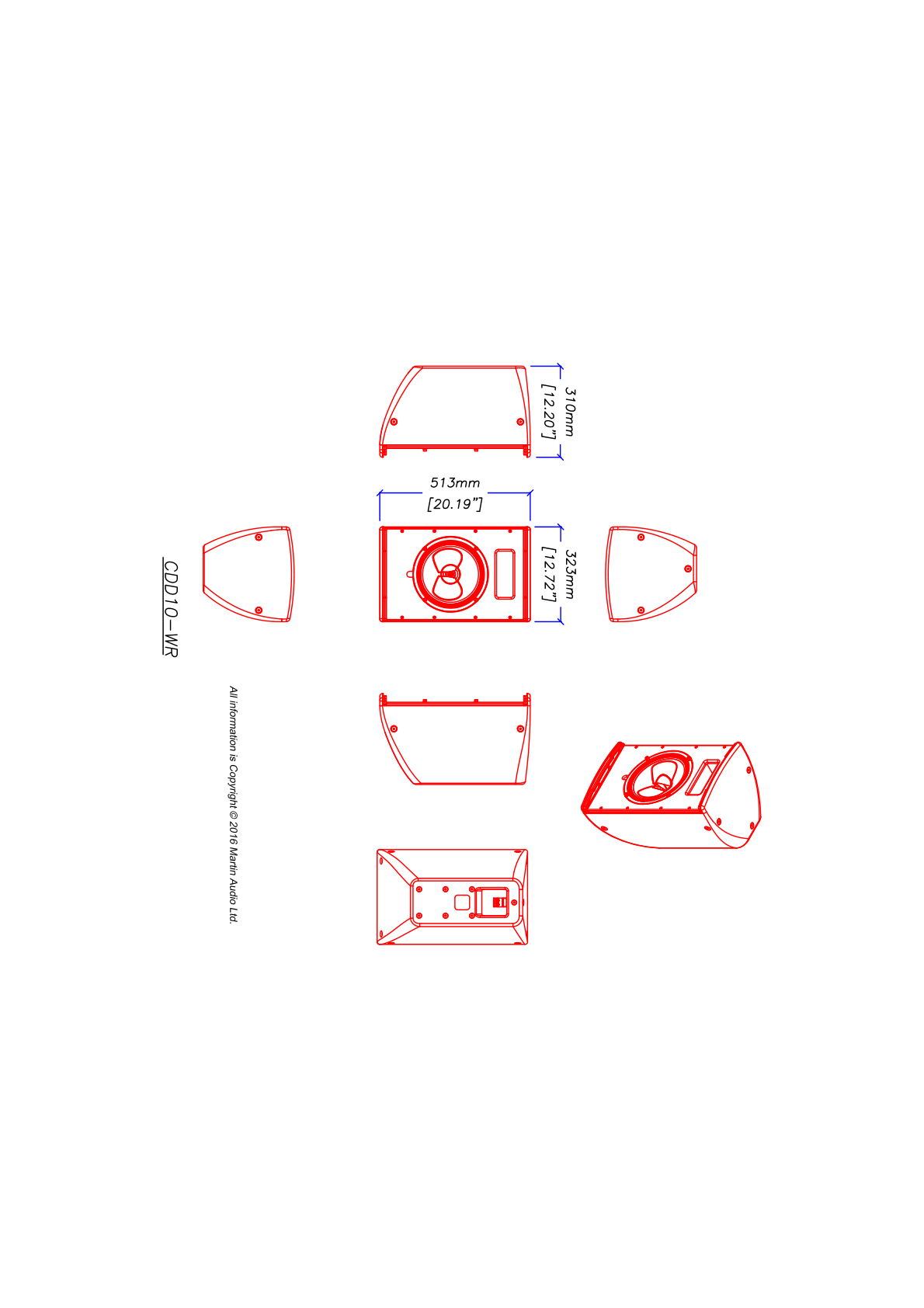

- DIMENSIONS
- (W) 323mm x (H) 513mm x (D) 310mm (W) 12.7ins x (H) 20.23ins x (D) 12.2ins
- WEIGHT
- 15.5kg (34.2lbs)
- Power Consumption
- 250 W
