CDD10BTX-WR Martin Audio · Passive Loudspeakers
10" Passive Coaxial Differential Dispersion Outdoor On-wall Loudspeaker with 70/100V Transformer
The CDD10TX-WR is a weatherised very compact two-way passive loudspeaker system incorporating a 70V/100V transformer (with a 5-way connector). It is suitable for larger outdoor applications that benefit from amplifier efficiency by being able to daisy-chain loudspeakers through use of the inbuilt transformer and where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. It utilises a 10” (250mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver and features a water and particle resistant grille made from zinc plated mild steel with powder coated finish and is suitable for operating temperatures between -20°C to +70°C and environmentally tested to meet IP54.
Power
120 W
Weight
17.1 kg
Dimensions
310 x 323 x 513 mm
Overview
CDD10BTX-WR at a Glance

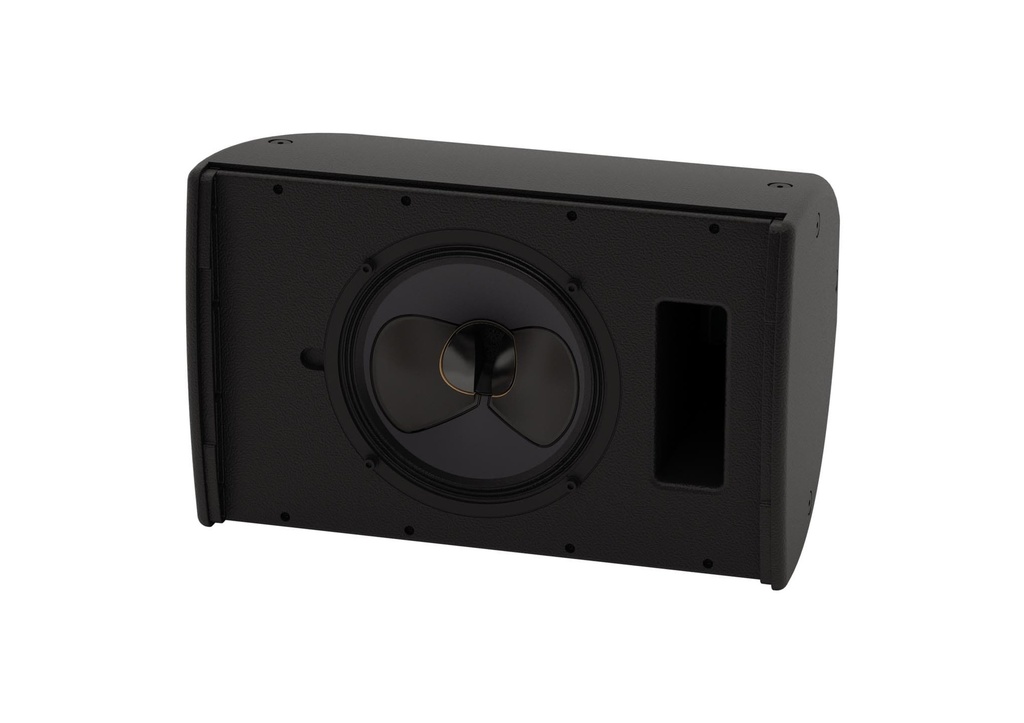

10'' CDD Speaker WR TX Black
Description
About the CDD10BTX-WR
Manufacturer detail for the CDD10BTX-WR by Martin Audio.
Technical Overview
The Coaxial Differential Dispersion technology employed in the CDD10TX-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD d
Specifications
Technical Specifications
Full published figures for the CDD10BTX-WR by Martin Audio.
- TYPE
- Compact, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE (5)
- 65Hz-20kHz ± 3dB -10dB @ 55Hz
- DRIVER
- LF: 10” (250mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver
- RATED POWER (2)
- 120W AES, 240W peak
- TRANSFORMER SETTINGS
- 70V line: 120W, 60W, 30W, 15W (no low impedance) 100V line: 120W, 60W, 30W(no low impedance)
- SENSITIVITY (8)
- 96dB
- MAXIMUM SPL (9)
- 117dB continuous, 123dB peak
- NOMINAL IMPEDANCE
- Line transformer taps: 42, 83, 166, 333 ohms
- DISPERSION (-6dB)
- 110˚-75˚ horizontal, 60˚ vertical (user-rotatable)
- CROSSOVER
- 2kHz passive
- ENCLOSURE
- 28 litre, composite material
- FINISH
- Black or white as standard
Show all 20 specifications Show fewer specifications
- PROTECTIVE GRILLE
- Zinc plated mild steel with powder coated finish and weatherised backing
- ENVIRONMENTAL
- Rated at IP54
- CONNECTORS
- Terminal block with spring connections, weatherproof input panel cover with cable gland
- PHOENIX CONNECTOR 5 WAY
- 70V: Common, 15W, 30W, 60W, 120W 100V: Common, 30W, 60W, 120W
- FITTINGS
- 6 x M8 inserts for wall bracket 10 x M8 fly points

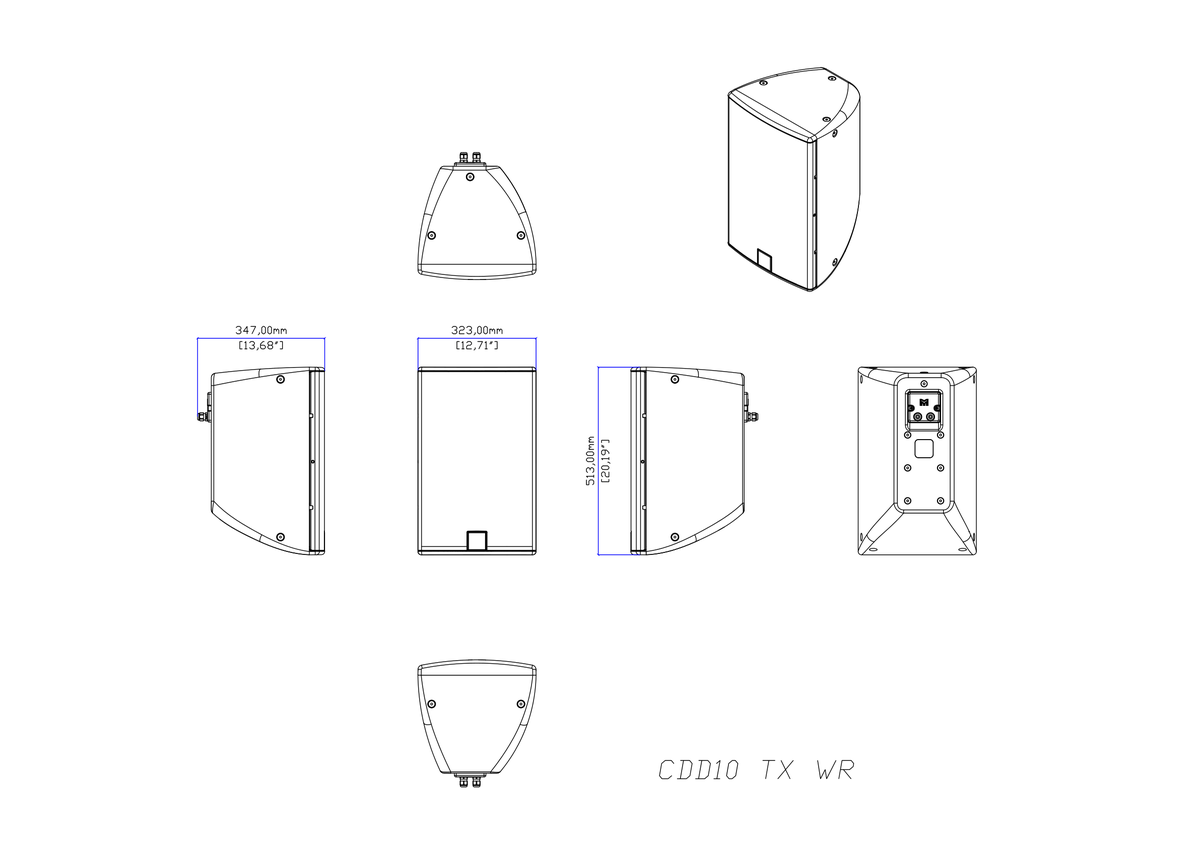

- DIMENSIONS
- (W) 323mm x (H) 513mm x (D) 310mm (W) 12.7ins x (H) 20.23ins x (D) 12.2ins
- WEIGHT
- 17.1kg (37.73lbs)
- Power Consumption
- 120 W
