Martin Audio
CDD12W Martin Audio · Passive Loudspeakers

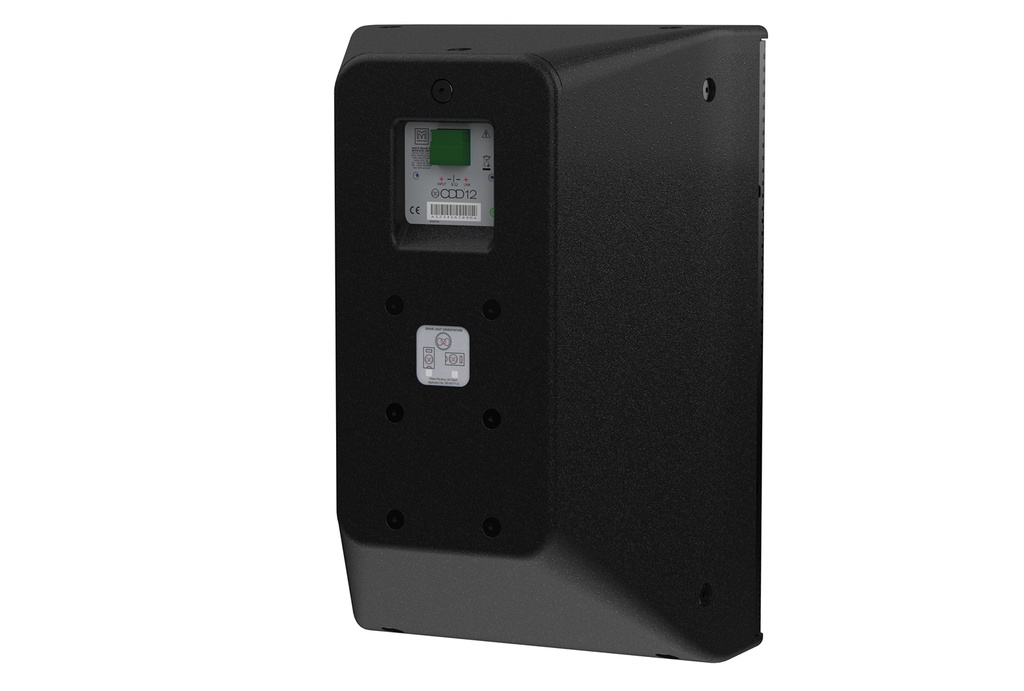

12" Passive Coaxial Differential Dispersion Outdoor On-wall Loudspeaker White
The CDD12 is a compact, passive two-way system designed for installations that require high output levels. Its high-specification 12” (300mm) LF /1” exit HF Coaxial Differential Dispersion driver delivers perfect sound across the audience over medium-throw distances.
Power
300 W
Weight
19 kg
Dimensions
350 x 360 x 560 mm
Overview
CDD12W at a Glance
12'' CDD Speaker White
Description
About the CDD12W
Manufacturer detail for the CDD12W by Martin Audio.
Technical Overview
The Coaxial Differential Dispersion technology employed in the CDD12 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver
Specifications
Technical Specifications
Full published figures for the CDD12W by Martin Audio.
- TYPE
- Compact, high-output, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE (5)
- 62Hz-20kHz ± 3dB, -10dB @ 50Hz
- DRIVER
- LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor with HF HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
- RATED POWER (2)
- 300W AES, 1200W peak
- SENSITIVITY (8)
- 97dB
- MAXIMUM SPL (9)
- 122dB continuous, 128dB peak
- NOMINAL IMPEDANCE
- 8Ω
- DISPERSION (-6dB)
- 110˚-60˚ horizontal, 60˚ vertical (user-rotatable)
- CROSSOVER
- 1.9kHz passive
- ENCLOSURE
- 38 litre, birch plywood
- FINISH
- Black or white textured paint
- PROTECTIVE GRILLE
- Black or white perforated steel with scrim cloth backing
Show all 18 specifications Show fewer specifications
- CONNECTORS
- Low profile 20A push-lock
- PIN CONNECTIONS
- Left to right: Input+, Input -, Link -, Link+
- FITTINGS
- 6 x M8 inserts for wall bracket 10 x M8 fly points

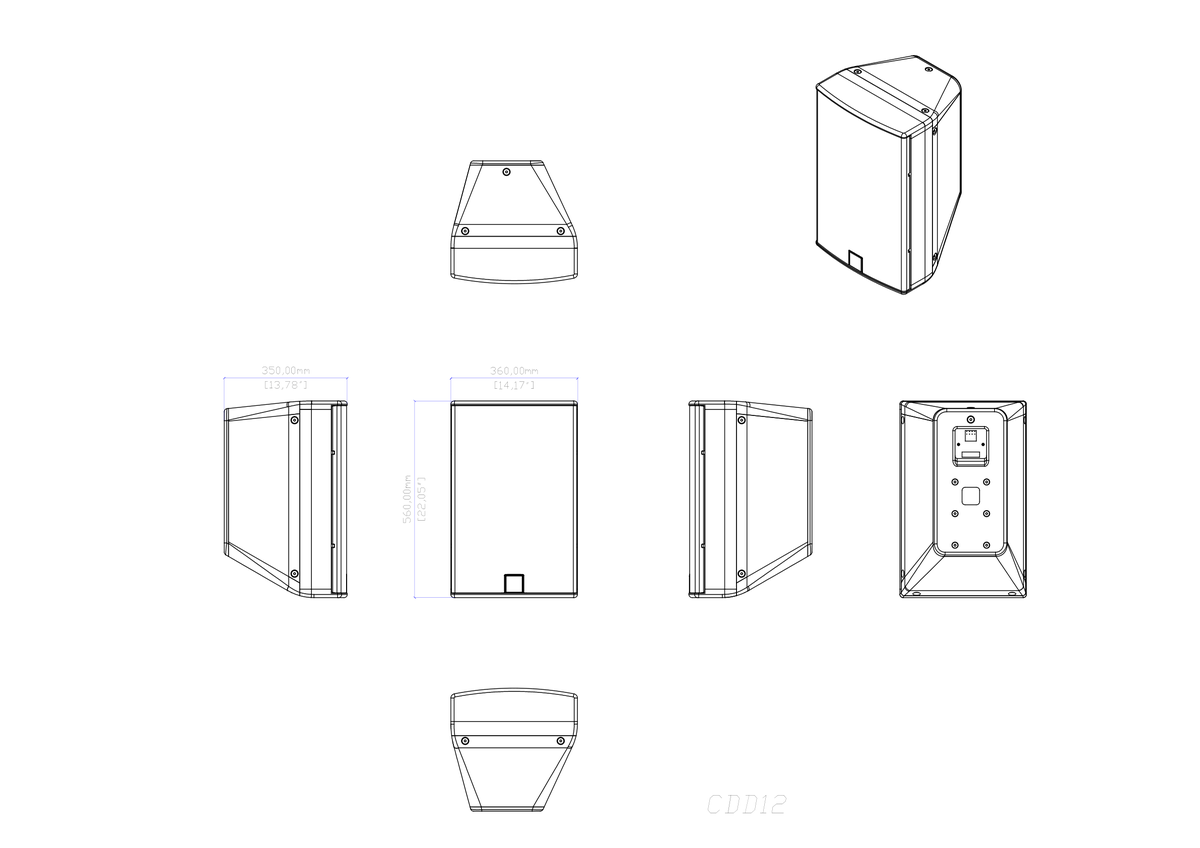

- DIMENSIONS
- (W) 360mm x (H) 560mm x (D) 350mm (W) 14.17ins x (H) 22.05ins x (D) 13.78ins
- WEIGHT
- 19kg (41.89 lbs)
- Power Consumption
- 300 W
