CDD12W-WR Martin Audio · Passive Loudspeakers

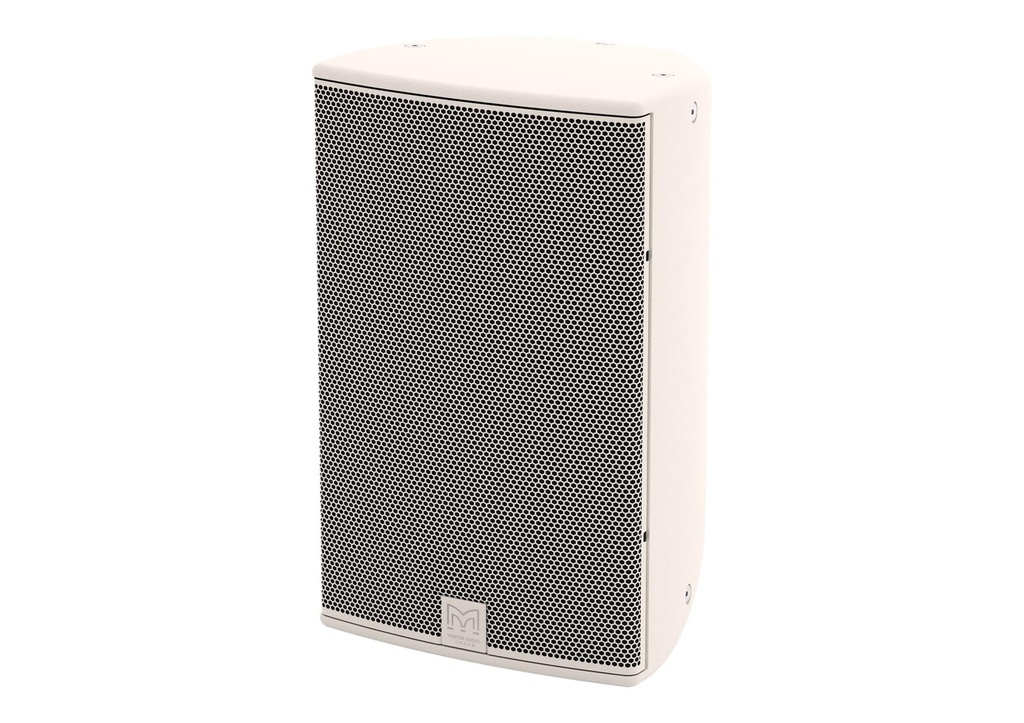

12" Passive Coaxial Differential Dispersion Outdoor On-wall Loudspeaker
The CDD12-WR is a weatherised compact, passive two-way system designed for installations that require high output levels suitable for outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. Its high-specification 12” (300mm) LF /1” exit HF Coaxial Differential Dispersion driver delivers perfect sound across the audience over medium-throw distances. It features a water and particle resistant grille made from zinc plated mild steel with powder coated finish and is suitable for operating temperatures between -20°C to +70°C and environmentally tested to meet IP54.
Power
300 W
Weight
19.8 kg
Dimensions
350 x 360 x 571 mm
Overview
CDD12W-WR at a Glance
12'' CDD Speaker WR White
Description
About the CDD12W-WR
Manufacturer detail for the CDD12W-WR by Martin Audio.
Technical Overview
The Coaxial Differential Dispersion technology employed in the CDD12-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD dri
Specifications
Technical Specifications
Full published figures for the CDD12W-WR by Martin Audio.
- TYPE
- Compact, high-output, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE (5)
- 62Hz-20kHz ± 3dB -10dB @ 50Hz
- DRIVER
- LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
- RATED POWER (2)
- 300W AES, 1200W peak
- SENSITIVITY (8)
- 97dB
- MAXIMUM SPL (9)
- 122dB continuous, 128dB peak
- NOMINAL IMPEDANCE
- 8Ω
- DISPERSION (-6dB)
- 110˚-60˚ horizontal, 60˚ vertical (user-rotatable)
- CROSSOVER
- 1.9kHz passive
- ENCLOSURE
- 38 litre, composite material
- FINISH
- Black or white as standard
- PROTECTIVE GRILLE
- Zinc plated mild steel with powder coated finish and weatherised backing
Show all 19 specifications Show fewer specifications
- ENVIRONMENTAL
- Rated at IP54
- CONNECTORS
- Low profile 20A push-lock, weatherproof input panel cover with cable gland
- PIN CONNECTIONS
- Left to right: Input+, Input -, Link -, Link+
- FITTINGS
- 6 x M8 inserts for wall bracket 10 x M8 fly points

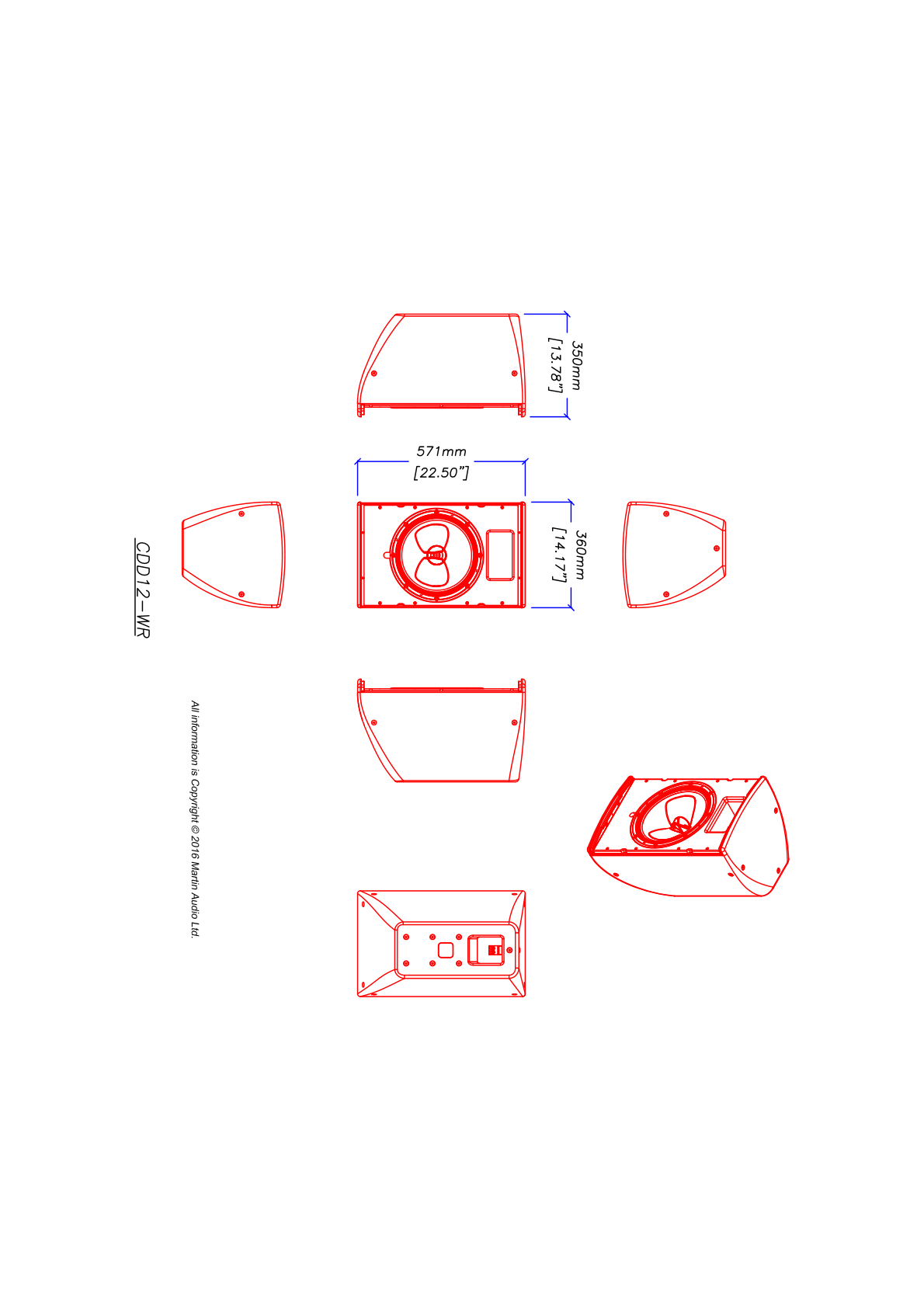

- DIMENSIONS
- (W) 360mm x (H) 571mm x (D) 350mm (W) 14.2ins x (H) 22.5ins x (D) 13.8ins
- WEIGHT
- 19.8kg (43.65lbs)
- Power Consumption
- 300 W
