CDD15B Martin Audio · Passive Loudspeakers
15" Passive Coaxial Differential Dispersion On-wall Loudspeaker
Ideal for medium-to-large rooms, the CDD15 is a very high-power, passive two-way system designed for installations that demand the ultimate in sonic performance from a single enclosure. It combines very high output capability with exceptional fidelity and coverage consistency. Its coaxial drive unit comprises a powerful 15” (380mm)/3” (75mm) voice coil LF driver and a 1.4” (35mm) exit HF compression driver with a 3” (75mm) pure titanium diaphragm.
Power
400 W
Overview
CDD15B at a Glance
15'' CDD Speaker Black
Description
About the CDD15B
Manufacturer detail for the CDD15B by Martin Audio.
Technical Overview
The Coaxial Differential Dispersion technology employed in the CDD15 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver
Specifications
Technical Specifications
Full published figures for the CDD15B by Martin Audio.
- TYPE
- High-output, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE (5)
- 55Hz-18kHz ± 3dB, -10dB @ 45Hz
- DRIVER
- LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1.4” (36mm) exit/3” (75mm) voice coil, titanium dome compression driver
- RATED POWER (2)
- 400W AES, 1600W peak
- SENSITIVITY (8)
- 100dB
- MAXIMUM SPL (9)
- 126dB continuous, 132dB peak
- NOMINAL IMPEDANCE
- 8Ω
- DISPERSION (-6dB)
- 100˚-60˚ horizontal, 60˚ vertical (user-rotatable)
- CROSSOVER
- 1.6kHz passive
- ENCLOSURE
- 68 litre, birch plywood
- FINISH
- Black or white textured paint
- PROTECTIVE GRILLE
- Black or white perforated steel with scrim cloth backing
Show all 18 specifications Show fewer specifications
- CONNECTORS
- Low profile 20A push-lock
- PIN CONNECTIONS
- Left to right: Input+, Input -, Link -, Link+
- FITTINGS
- 10 x M8 fly points

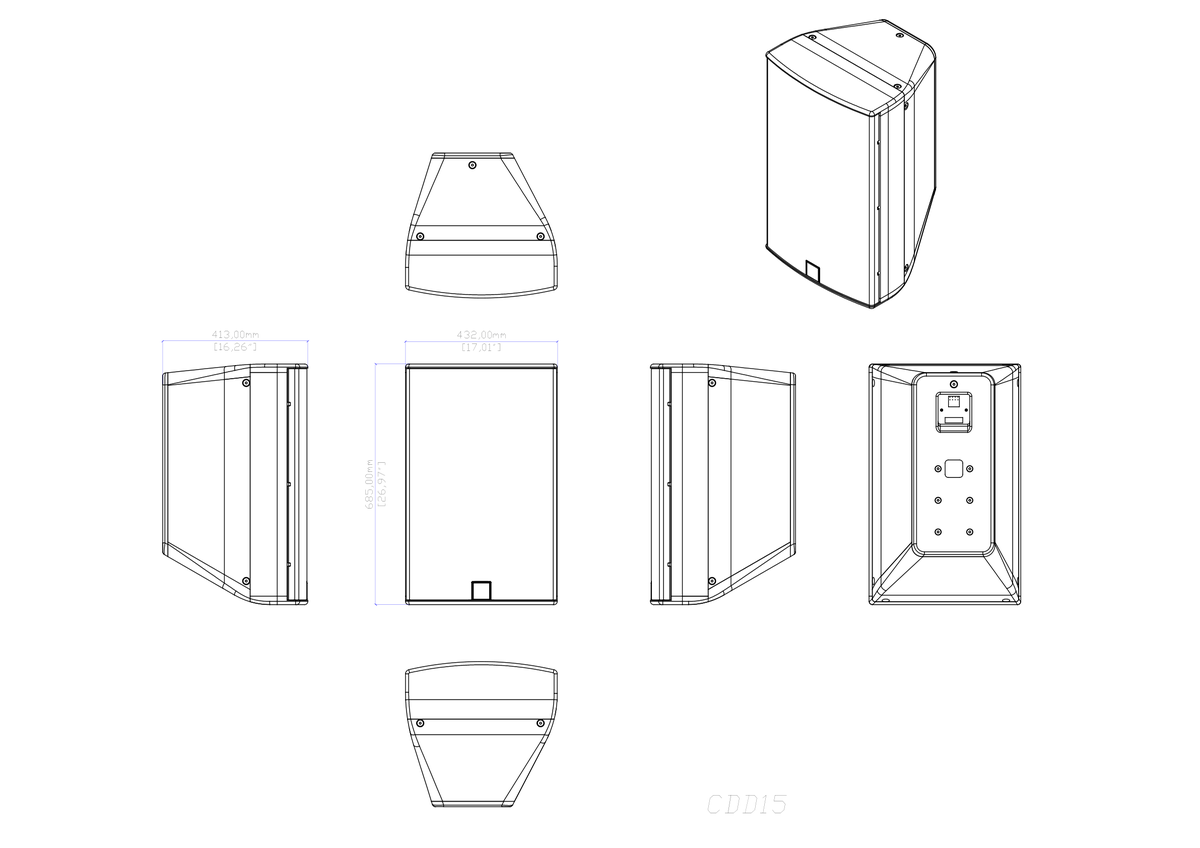

- DIMENSIONS
- (W) 432mm x (H) 685mm x (D) 413mm (W) 17.01ins x (H) 26.97ins x (D) 16.26ins
- WEIGHT
- 26kg (57.32lbs)
- Power Consumption
- 400 W
