CDD15B-WR Martin Audio · Passive Loudspeakers
15" Passive Coaxial Differential Dispersion Outdoor On-wall Loudspeaker
The CDD15-WR is a very high-power, weatherised, passive two-way system designed for outdoor installations that demand the ultimate in sonic performance from a single enclosure and suitable for applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements.
Power
400 W
Dimensions
413 x 429 x 691 mm
Overview
CDD15B-WR at a Glance
15'' CDD Speaker WR Black
Description
About the CDD15B-WR
Manufacturer detail for the CDD15B-WR by Martin Audio.
Technical Overview
15" Passive Coaxial Differential Dispersion Outdoor On-wall Loudspeaker - Black
Specifications
Technical Specifications
Full published figures for the CDD15B-WR by Martin Audio.
- TYPE
- High-output, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE (5)
- 55Hz-18kHz ± 3dB -10dB @ 45Hz
- DRIVER
- LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1.4” (36mm) exit/3” (75mm) voice coil, titanium dome compression driver
- RATED POWER (2)
- 400W AES, 1600W peak
- SENSITIVITY (8)
- 100dB
- MAXIMUM SPL (9)
- 126dB continuous, 132dB peak
- NOMINAL IMPEDANCE
- 8Ω
- DISPERSION (-6dB)
- 100˚-60˚ horizontal, 60˚ vertical (user-rotatable)
- CROSSOVER
- 1.6kHz passive
- ENCLOSURE
- 68 litre, composite material
- FINISH
- Black or white as standard
- PROTECTIVE GRILLE
- Zinc plated mild steel with powder coated finish and weatherised backing
Show all 19 specifications Show fewer specifications
- ENVIRONMENTAL
- Rated at IP54
- CONNECTORS
- Low profile 20A push-lock, weatherproof input panel cover with cable gland
- PIN CONNECTIONS
- Left to right: Input+, Input -, Link -, Link+
- FITTINGS
- 10 x M8 fly points

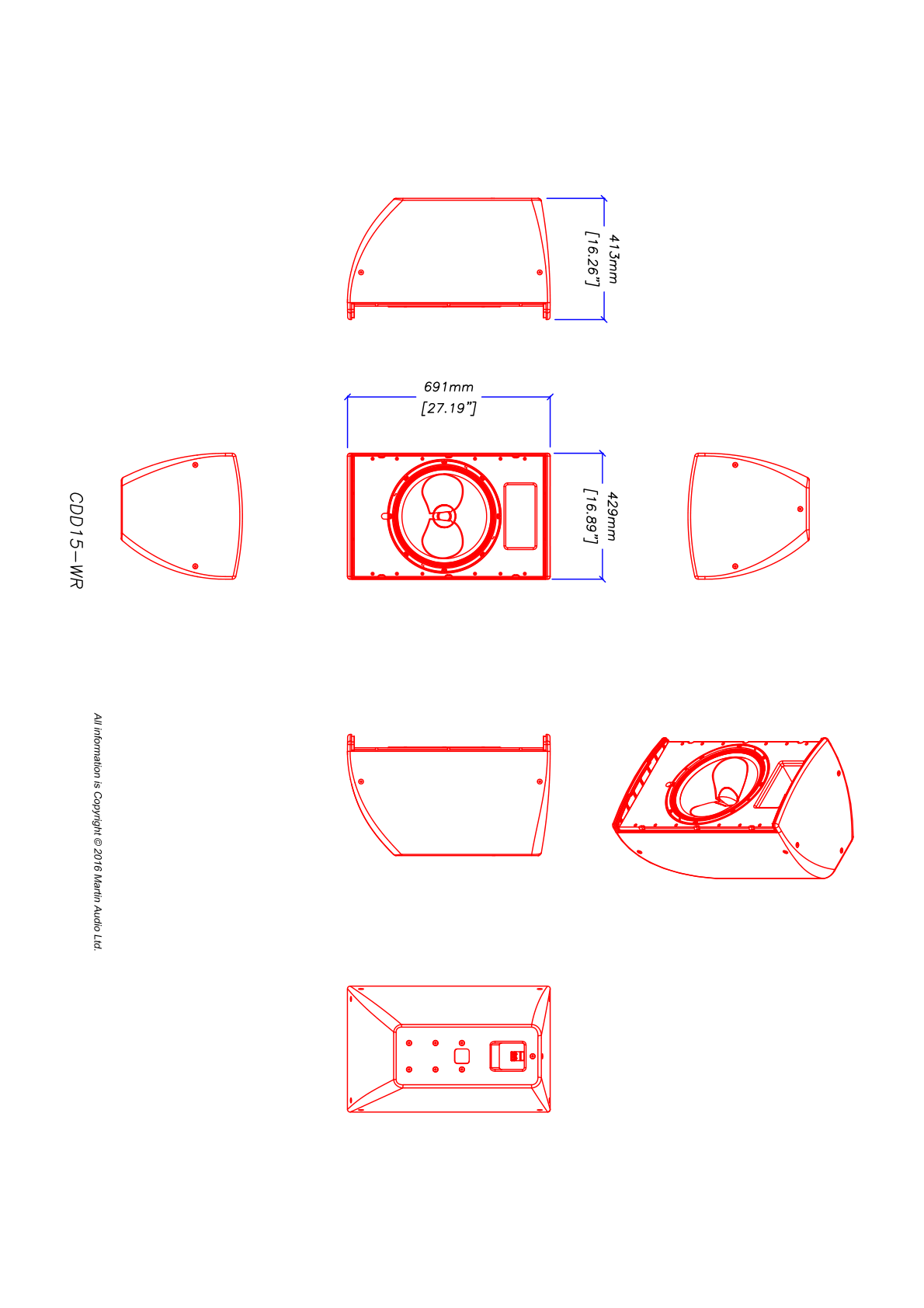

- DIMENSIONS
- (W) 429mm x (H) 691mm x (D) 413mm (W) 16.9ins x (H) 27.2ins x (D) 16.3ins
- WEIGHT
- 28.3kg (62.4lbs)
- Power Consumption
- 400 W
