CDD5BTX-WR Martin Audio · Passive Loudspeakers
The Coaxial Differential Dispersion technology employed in the CDD5TX-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience to distribute sound evenly front-to-back, while having wide horizontal
The CDD5TX-WR is a weatherised two-way passive micro speaker incorporating a 70V/100V line transformer and designed for discreet positioning in architectural installations — including bars, museums, foyers, concourses, exhibition centres and HoW as well as outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. It features a unique, patent-pending 5” (125mm) LF/0.7” (19mm) HF Coaxial Differential Dispersion driver in a rigid ABS moulded enclosure with a dual cable gland for easy daisy-chaining of cabinets without the need for external breakout boxes and is supplied with a dedicated omni-directional mounting weather resistant bracket.
Power
100 W
Overview
CDD5BTX-WR at a Glance
IP54 Weatherised 5'' CDD TX Speaker Black
Specifications
Technical Specifications
Full published figures for the CDD5BTX-WR by Martin Audio.
- TYPE
- Ultra-Compact, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE (5)
- 100Hz-20kHz ± 3dB -10dB @ 70Hz
- DRIVER
- LF: 5.25” (130mm)/1.25” (32mm) voice coil, long excursion, ferrite motor system HF: 0.75” (19mm) voice coil, fabric dome with neodymium motor system
- RATED POWER (2)
- 100W AES, 400W peak
- TRANSFORMER SETTINGS
- 100V line: 6W, 12.5W, 25W 70V line: 3W, 6W, 12.5W, 25W
- SENSITIVITY (8)
- 90dB
- MAXIMUM SPL (9)
- 110dB continuous, 116dB peak 3W = 95dB, 6W = 98dB, 12.5W =101dB, 25W = 104dB
- NOMINAL IMPEDANCE
- 8Ω
- DISPERSION (-6dB)
- 120°-90° horizontal, 80° vertical (user-rotatable)
- CROSSOVER
- 2.5kHz passive
- ENCLOSURE
- 3 litre, ABS
- FINISH
- Black or white as standard (RAL as cost option)
Show all 20 specifications Show fewer specifications
- PROTECTIVE GRILLE
- Zinc plated mild steel with powder coated finish and weatherised backing
- ENVIRONMENTAL
- Rated at IP54
- CONNECTORS
- Low profile 13A push-lock, weatherproof input panel cover with dual cable glands
- PIN CONNECTIONS
- Left to right: Input+, Input -, Link -, Link +
- FITTINGS
- 6 x M5 inserts for wall/ceiling brackets

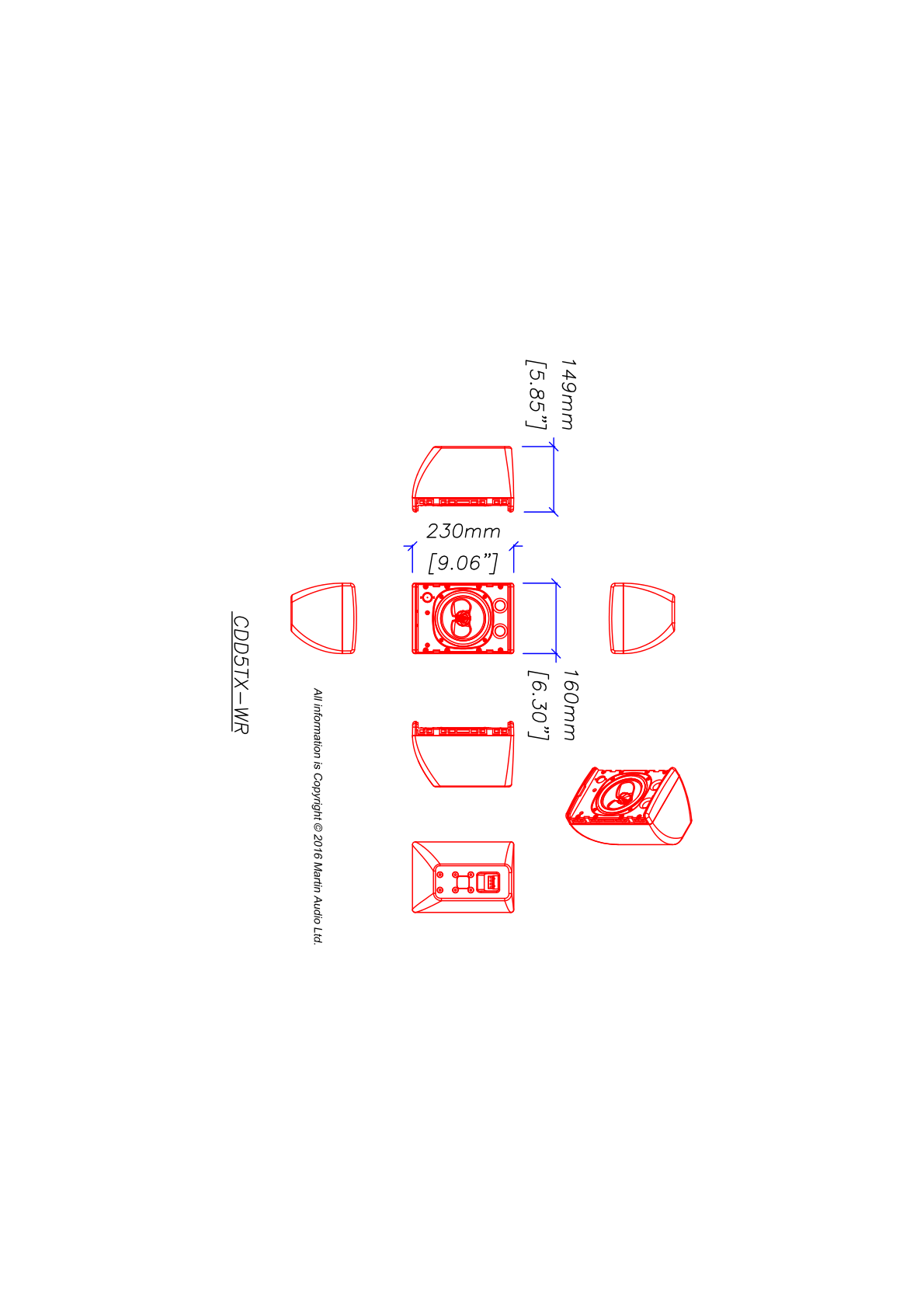

- DIMENSIONS
- (W) 160mm x (H) 230mm x (D) 149mm (W) 6.3ins x (H) 9.1 ins x (D) 5.9 ins
- WEIGHT
- 3.4kg (7.5lbs)
- Power Consumption
- 100 W
