CDD5W Martin Audio · Passive Loudspeakers

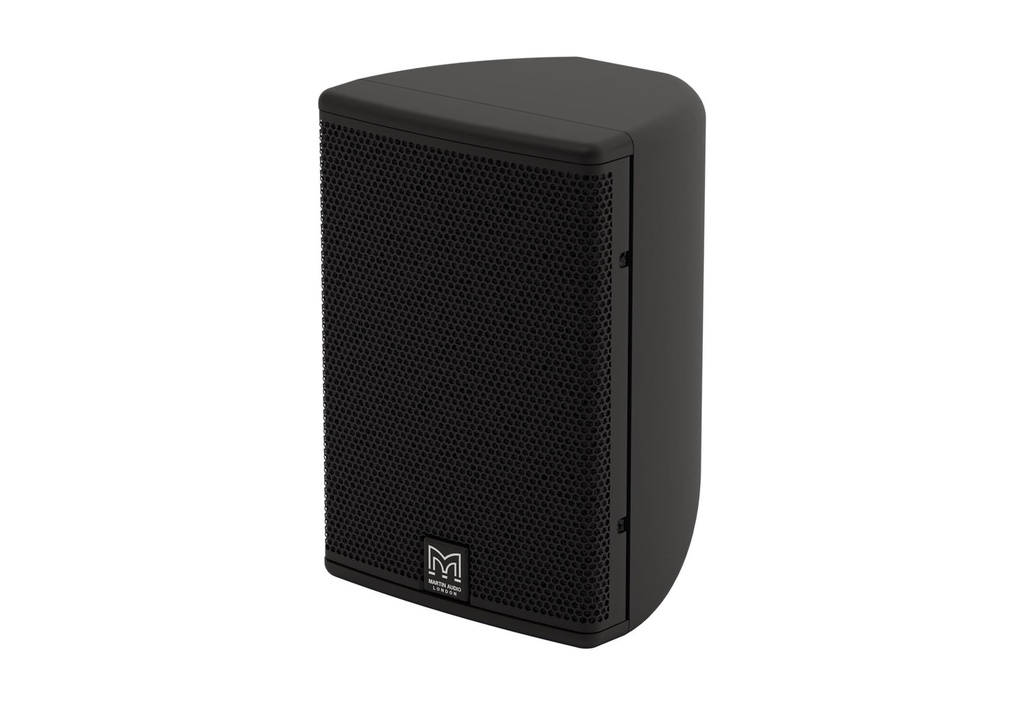

5" Passive Coaxial Differential Dispersion On-wall Loudspeaker
The CDD5 is a two-way passive micro speaker designed for discreet positioning in architectural installations — including bars, museums, foyers, concourses, exhibition centres and HoW. It features a unique, patent protected 5” (125mm) LF/0.7” (19mm) HF Coaxial Differential Dispersion driver in a rigid ABS moulded enclosure and is supplied with a dedicated omni-directional mounting bracket.
Power
100 W
Weight
3 kg
Dimensions
149 x 160 x 230 mm
Overview
CDD5W at a Glance
5'' CDD Speaker White
Description
About the CDD5W
Manufacturer detail for the CDD5W by Martin Audio.
Technical Overview
The Coaxial Differential Dispersion technology employed in the CDD5 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience to distribute sound evenly front-to-back, while having wide horizontal cove
Specifications
Technical Specifications
Full published figures for the CDD5W by Martin Audio.
- TYPE
- Ultra-Compact, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE (5)
- 100Hz-20kHz ± 3dB, 10dB @ 70Hz
- DRIVER
- LF: 5.25” (130mm)/1.25” (32mm) voice coil, long excursion, ferrite motor system HF: 0.75” (19mm) voice coil, fabric dome with neodymium motor system
- RATED POWER (2)
- 100W AES, 400W peak
- SENSITIVITY (8)
- 90dB
- MAXIMUM SPL (9)
- 110dB continuous, 116dB peak
- NOMINAL IMPEDANCE
- 8Ω
- DISPERSION (-6dB)
- 120˚-90˚ horizontal, 80˚ vertical (user-rotatable)
- CROSSOVER
- 2.5kHz passive
- ENCLOSURE
- 3 litre, ABS
- FINISH
- Black or white
- PROTECTIVE GRILLE
- Black or white perforated steel with scrim cloth backing
Show all 18 specifications Show fewer specifications
- CONNECTORS
- Low profile 13A push-lock
- PIN CONNECTIONS
- Left to right: Input+, Input -, Link -, Link +
- FITTINGS
- 6 x M5 inserts for wall/ceiling brackets
- DIMENSIONS
- (W) 160mm x (H) 230mm x (D) 149mm (W) 6.3ins x (H) 9.1 ins x (D) 5.9 ins
- WEIGHT
- 3kg (6.6lbs)
- Power Consumption
- 100 W
