CDD6BTX-WR Martin Audio · Passive Loudspeakers
IP54 WEATHERISED 6.5''CDD TX SPEAKER BLACK
The CDD6TX-WR is a weatherised two-way passive micro speaker incorporating a 70V/100V line transformer and designed for discreet positioning in architectural installations — including bars, museums, foyers, concourses, exhibition centres and HoW as well as outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. It can reproduce surprisingly high levels of music program and can also be used as a fill system in conjunction with larger CDD Series. It features a 6.5” (165mm) LF/1” (25mm) HF Coaxial Differential Dispersion driver inside an elegant UPM Formi composite enclosure with a dual cable gland for easy daisy-chaining of cabinets without the need for external breakout boxes.
Description
About the CDD6BTX-WR
Manufacturer detail for the CDD6BTX-WR by Martin Audio.
Technical Overview
The Coaxial Differential Dispersion technology employed in the CD6TX-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience to distribute sound evenly front-to-back, while having wide horizontal
Specifications
Technical Specifications
Full published figures for the CDD6BTX-WR by Martin Audio.
- TYPE
- Ultra-Compact, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE (5)
- 80Hz-20kHz ± -10dB @ 70Hz
- DRIVER
- LF: 6.5” (165mm)/1.5” (38mm) voice coil, long excursion, ferrite motor system HF: 1” (25mm) voice coil, fabric dome with neodymium motor system
- RATED POWER (2)
- 150W AES, 600W peak
- TRANSFORMER SETTINGS
- 100V line: 12.5W, 25W, 50W 70V line: 6.5W, 12.5W, 25W, 50W
- SENSITIVITY (8)
- 91dB
- MAXIMUM SPL (9)
- 113dB continuous, 119dB peak 6.2W=99dB, 12.5W=102dB, 25W=105dB, 50W=108dB.
- NOMINAL IMPEDANCE
- 8Ω
- DISPERSION (-6dB)
- 110°-80° horizontal, 80° vertical (user-rotatable)
- CROSSOVER
- 2.5kHz passive
- ENCLOSURE
- 9 litre, composite material
- FINISH
- Black or white as standard
Show all 19 specifications Show fewer specifications
- PROTECTIVE GRILLE
- Zinc plated mild steel with powder coated finish and weatherised backing
- ENVIRONMENTAL
- Rated at IP54
- CONNECTORS
- Low profile 13A push-lock, weatherproof input panel cover with dual cable glands
- PIN CONNECTIONS
- Left to right: Input+, Input -, Link -, Link +
- FITTINGS
- 4 x M6 inserts for wall/ceiling brackets

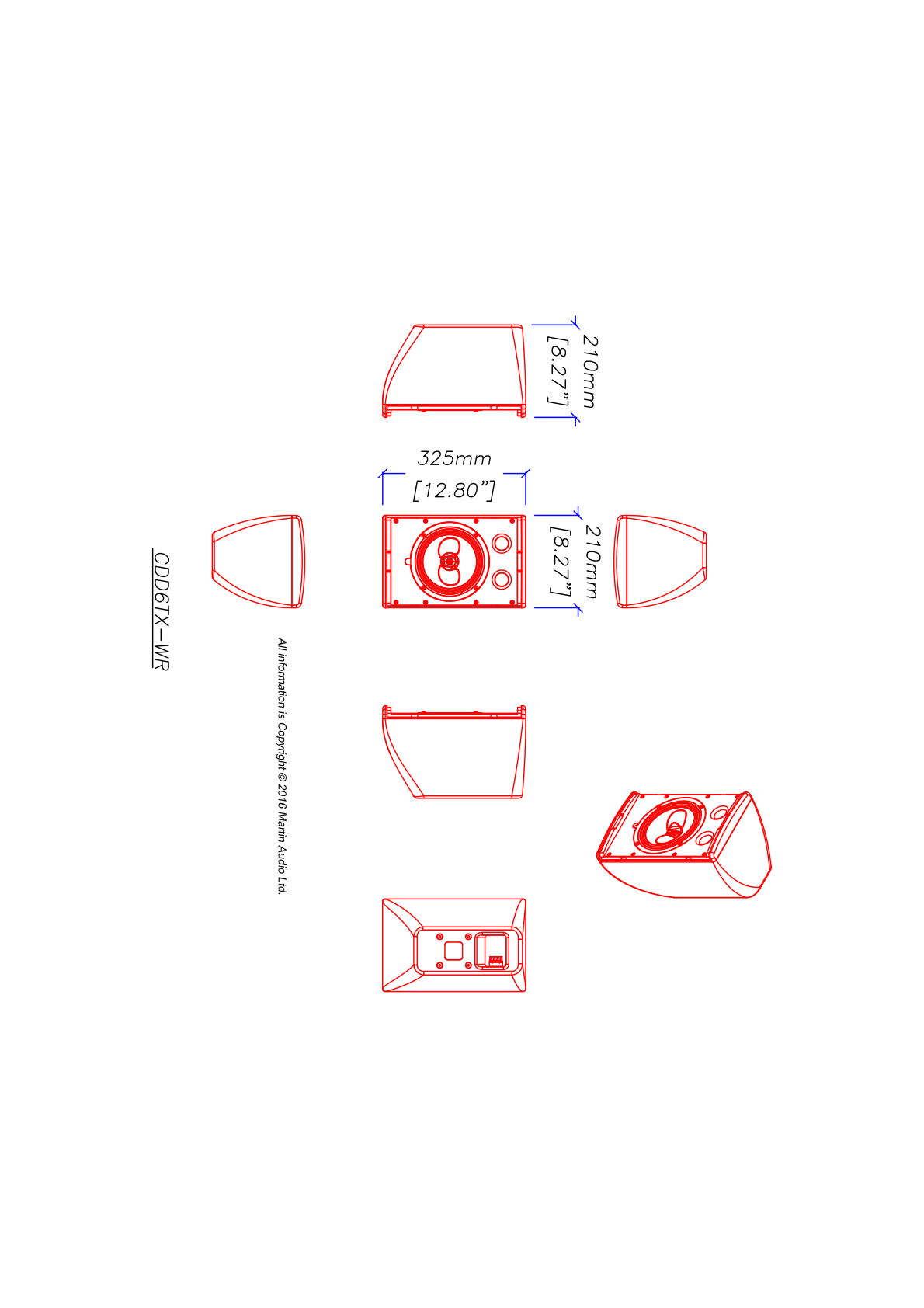

- DIMENSIONS
- (W) 210mm x (H) 325mm x (D) 210mm (W) 8.3ins x (H) 12.8ins x (D) 8.3ins
- WEIGHT
- 6.77kg (14.93lbs)
