CDD8B Martin Audio · Passive Loudspeakers
8" Passive Coaxial Differential Dispersion On-wall Loudspeaker
The CDD8 is an ultra-compact two-way passive loudspeaker system with an integrated 8” (200mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver which can be easily rotated for horizontal or vertical orientation depending on venue design requirements. Its small size gives no indication of its high output capability. As a stand-alone loudspeaker, it has a multitude of applications and can also be incorporated as an infill loudspeaker in distributed systems using larger CDD models, such as the CDD12 and CDD15.
Power
200 W
Overview
CDD8B at a Glance
8'' CDD Speaker Black
Description
About the CDD8B
Manufacturer detail for the CDD8B by Martin Audio.
Technical Overview
The Coaxial Differential Dispersion technology employed in the CDD8 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver
Specifications
Technical Specifications
Full published figures for the CDD8B by Martin Audio.
- TYPE
- Ultra-Compact, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE (5)
- 70Hz-20kHz ± 3dB, -10dB @ 55Hz
- DRIVER
- LF: 8” (200mm)/2” (50mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver
- RATED POWER (2)
- 200W AES, 800W peak
- SENSITIVITY (8)
- 94dB
- MAXIMUM SPL (9)
- 117dB continuous, 123dB peak
- NOMINAL IMPEDANCE
- 8Ω
- DISPERSION (-6dB)
- 110˚-80˚ horizontal, 60˚ vertical (user-rotatable)
- CROSSOVER
- 2.3kHz passive
- ENCLOSURE
- 14 litre, composite material
- FINISH
- Black or white textured paint
- PROTECTIVE GRILLE
- Black or white perforated steel with scrim cloth backing
Show all 18 specifications Show fewer specifications
- CONNECTORS
- Low profile 13A push-lock
- PIN CONNECTIONS
- Left to right: Input+, Input -, Link -, Link +
- FITTINGS
- 6 x M6 inserts for wall/ceiling brackets

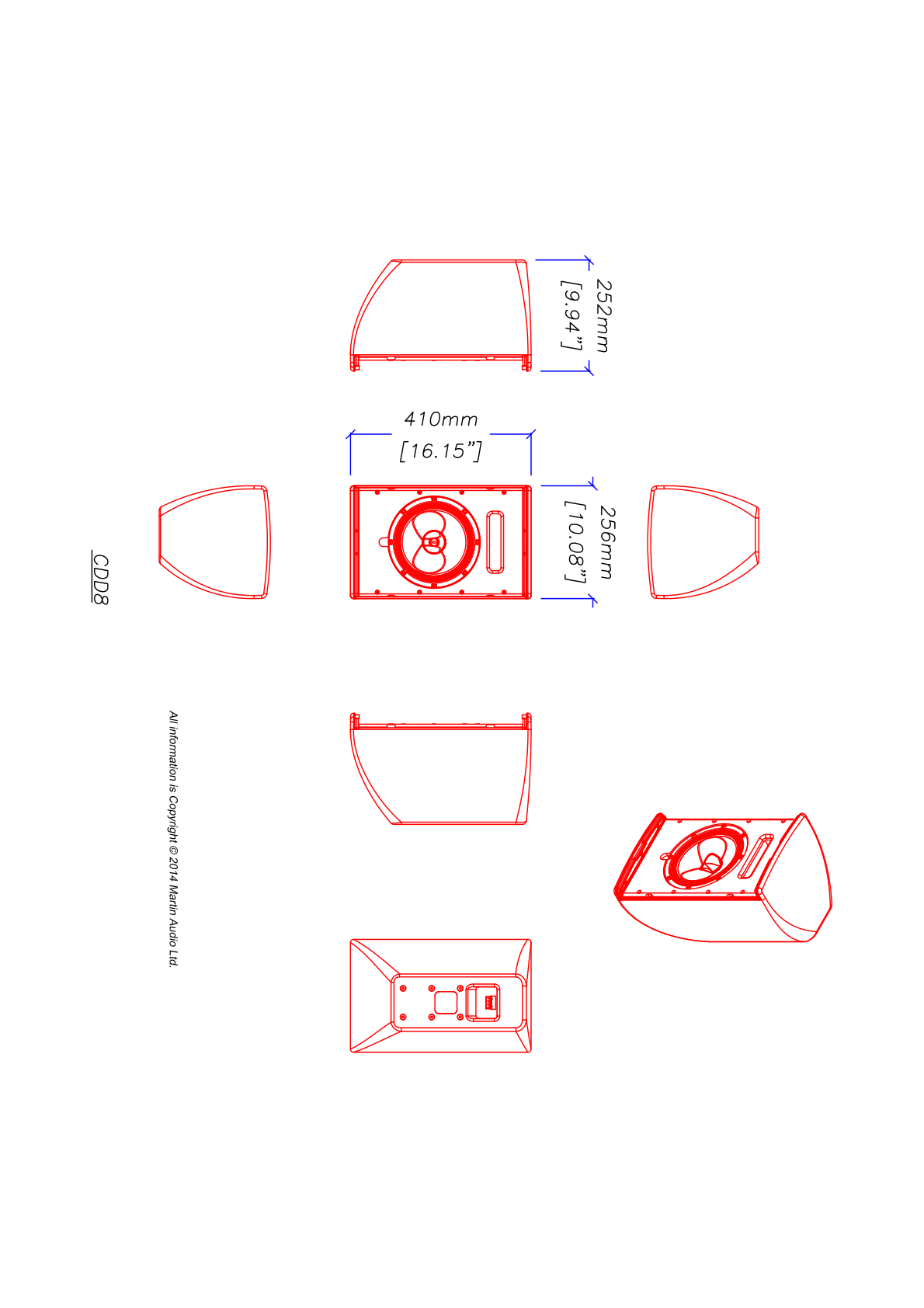

- DIMENSIONS
- (W) 256mm x (H) 410mm x (D) 252mm (W) 10.1ins x (H) 16.1ins x (D) 9.9ins
- WEIGHT
- 9.5kg (21lbs)
- Power Consumption
- 200 W
