CDD8W-WR Martin Audio · Passive Loudspeakers

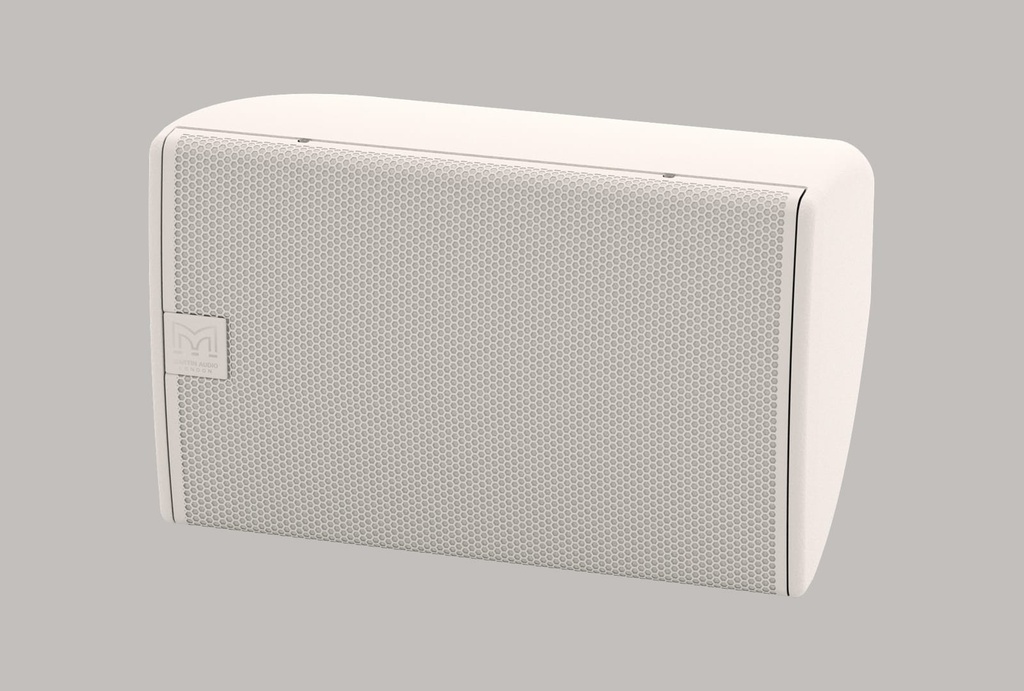

8" Passive Coaxial Differential Dispersion Outdoor On-wall Loudspeaker
The CDD8-WR is a weatherised ultra-compact two-way passive loudspeaker system suitable for outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. It features an integrated 8” (200mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver which can be easily rotated for horizontal or vertical orientation depending on venue design requirements. Its small size gives no indication of its high output capability. As a stand-alone loudspeaker, it has a multitude of applications and can also be incorporated as an infill loudspeaker in distributed systems using larger CDD models, such as the CDD12-WR and CDD15-WR.
Power
200 W
Weight
9.8 kg
Dimensions
252 x 256 x 410 mm
Overview
CDD8W-WR at a Glance
8'' CDD Speaker WR - IP54 White
Description
About the CDD8W-WR
Manufacturer detail for the CDD8W-WR by Martin Audio.
Technical Overview
The Coaxial Differential Dispersion technology employed in the CDD8-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driv
Specifications
Technical Specifications
Full published figures for the CDD8W-WR by Martin Audio.
- TYPE
- Ultra-Compact, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE (5)
- 70Hz-20kHz ± 3dB -10dB @ 55Hz
- DRIVER
- LF: 8” (200mm)/2” (50mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver
- RATED POWER (2)
- 200W AES, 800W peak
- SENSITIVITY (8)
- 94dB
- MAXIMUM SPL (9)
- 117dB continuous, 123dB peak
- NOMINAL IMPEDANCE
- 8Ω
- DISPERSION (-6dB)
- 110°-80° horizontal, 60° vertical (user-rotatable)
- CROSSOVER
- 2.3kHz passive
- ENCLOSURE
- 14 litre, composite material
- FINISH
- Black or white as standard
- PROTECTIVE GRILLE
- Zinc plated mild steel with powder coated finish and weatherised backing
Show all 19 specifications Show fewer specifications
- ENVIRONMENTAL
- Rated at IP54
- CONNECTORS
- Low profile 13A push-lock, weatherproof input panel cover with cable gland
- PIN CONNECTIONS
- Left to right: Input+, Input -, Link -, Link +
- FITTINGS
- 6 x M6 inserts for wall/ceiling brackets

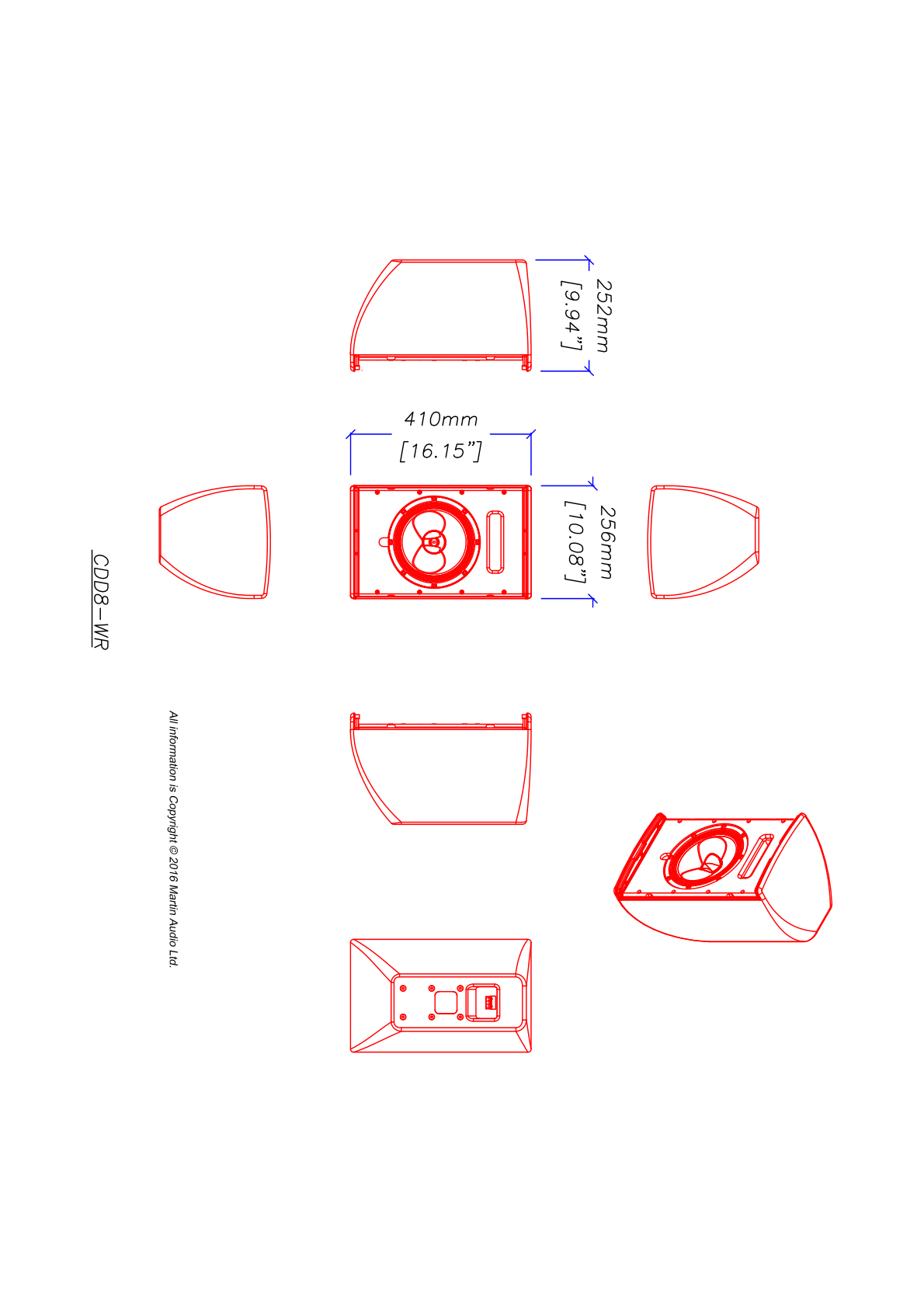

- DIMENSIONS
- (W) 256mm x (H) 410mm x (D) 252mm (W) 10.1ins x (H) 16.1ins x (D) 9.9ins
- WEIGHT
- 9.8kg (21.6lbs)
- Power Consumption
- 200 W
