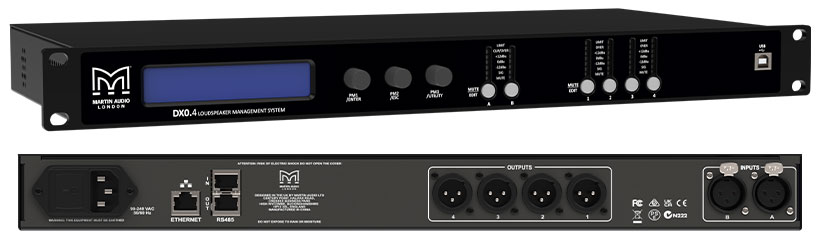

DX0.4 Martin Audio · Loudspeaker Processors
The DX0.4 offers a substantial array of processing options. Routing is freely assignable from the 2 inputs to the 4 outputs. Input and output equalisation is available with a choice of 14 filter options. An input noise gate will help deal with noisy signal sources. Input and output delay is availabl
The DX0.4 is the ideal processing tool to partner the ADORN, CDD and BlacklineX ranges or indeed any system where comprehensive system control and protection is required, perhaps where there may be budget constraints.
Power
30 W
Weight
3 kg
Overview
DX0.4 at a Glance
2 In 4 Out System Controller
Specifications
Technical Specifications
Full published figures for the DX0.4 by Martin Audio.
- Input impedance:
- 20k Ohm balanced
- Output Imp:
- 100R
- Max Input level:
- +20dBu
- Max Output level:
- +18dBu
- Crosstalk:
- <-95dB
- Sample Rate:
- 96kHz
- Signal to noise ration
- >113dB (A weighted)
- Noise Floor:
- <-94dB (A weighted)
- Common Mode Rejection Ratio
- 60dB
- Frequency Response:
- 20Hz - 40kHz +0.3dB
- Input A/D Dynamic range:
- 118dB
- Output D/A Dynamic range:
- 118dB
Show all 37 specifications Show fewer specifications
- THD (+4dBu 1kHz):
- <0.003%
- Mains Voltage Range:
- 85-230VAC 50-60Hz
- Nominal power Consumption:
- 30W
- Audio input:
- 2 x 3 pin female XLR
- Audio output:
- 4 x 3 pin male XLR
- Ethernet:
- Shielded RJ45, Dynamic or Static IP
- RS485:
- 2 x RJ45
- USB:
- 1 x USB B (Front Panel)
- Mains:
- 3 pin IEC
- Signal Generator:
- White/pink noise, -30dBu to +10dBu
- Gain:
- -18dB to +12dB, step accuracy 0.1dB
- Input Equaliser:
- 10 band PEQ, gain range +15dB 14 x Filter types
- Input Gate:
- Threshold: -40 to -80dBu Attack: 1 to 1,000ms Release: 1 to 1,000ms
- ROUTING:
- Freely assignable 2-in, 4 out Up to 30dB attenuation on each node
- Delay:
- Input: 600ms Output: 200ms Steps: 20us, Units: milliseconds, metres, feet
- Output Filters:
- High & Low Pass, -6dB/Octave to -48dB/Octave Slope types: Butterworth, Bessel, Linkwitz Riley
- Output Equalisation:
- 8 band PEQ, gain +15dB 14 x filter types FIR Filter Import
- Program Limiter:
- Threshold: -10 to +20dBu Attack: 1 to 1,000ms Release: 10 to 3,000ms
- Peak Limiter:
- Threshold: 0 to 12dB above Program Limiter Threshold Release: Fast (91ms), Medium (350ms), Slow (800ms)

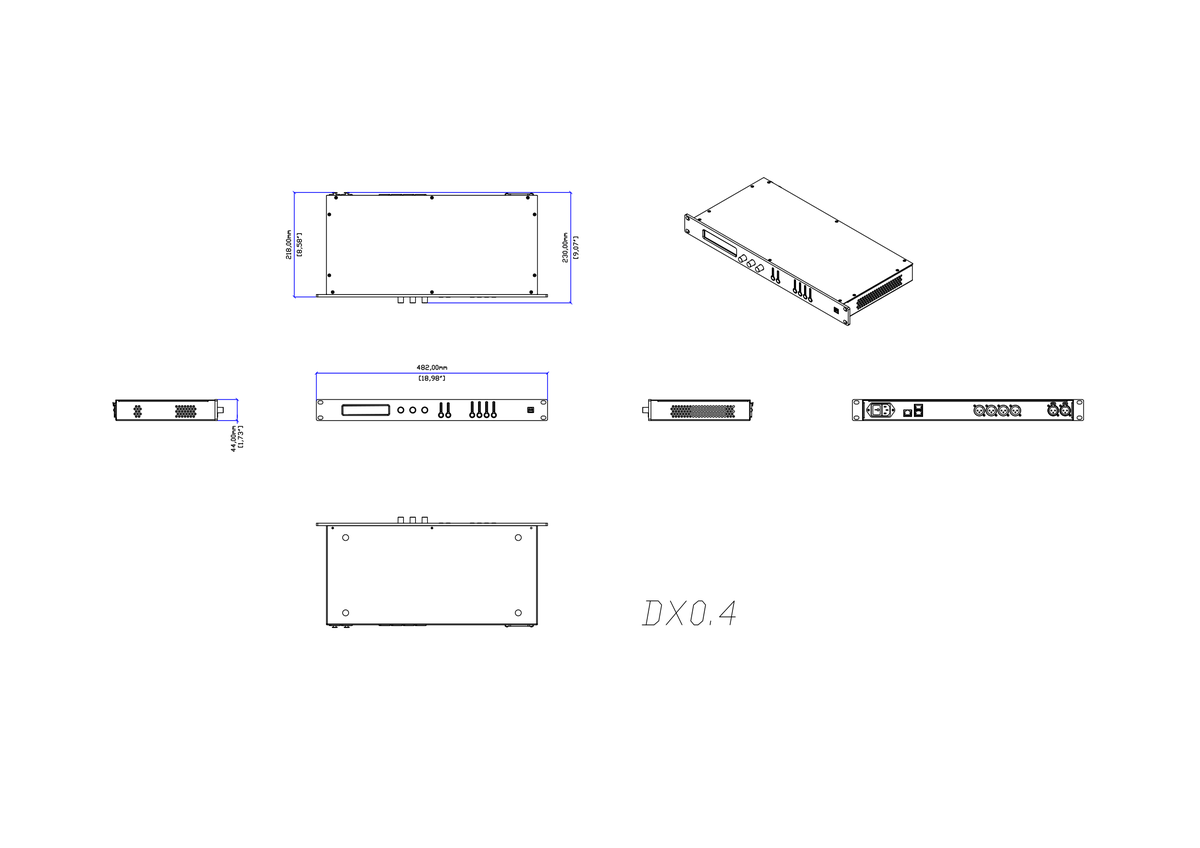

- Height:
- 1U (44mm) [1.75”]
- Width:
- 482mm [19”]
- Depth:
- 230mm [9.1”]
- Weight:
- 3.0kg [6.6lb]
- Weight
- 3 kg
- Power Consumption
- 30 W
