Martin Audio
FP8 Martin Audio · Passive Loudspeakers
8" Ultra-Compact Point Source Loudspeaker

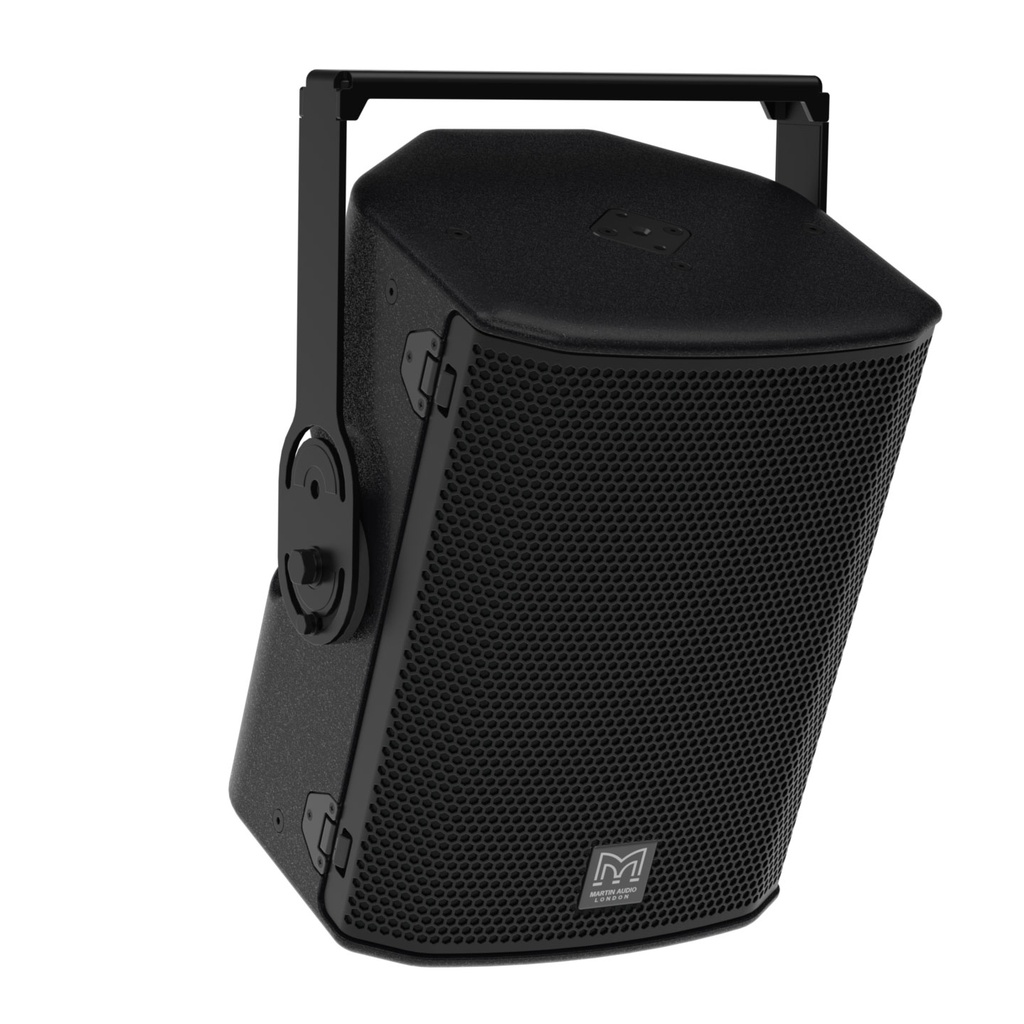

The FP8 is a premium, ultra-compact point-source loudspeaker designed for short-throw applications which require superb sonic performance and coverage consistency from a small enclosure. With full-frequency response and exceptional output capabilities for its size, it is ideal for a wide variety of touring and install applications.
Power
250 W
Weight
9.3 kg
Dimensions
265 x 376 x 280 mm
Overview
FP8 at a Glance
8'' Passive 2 way FlexPoint enclosure
Description
About the FP8
Manufacturer detail for the FP8 by Martin Audio.
Technical Overview
Its multi-angle enclosure with flexible mounting options makes for discreet integration within architectural spaces — from churches, museums and galleries to theatres, bars and restaurants. It is also the perfect ultra-compact solution for rental companies and professional applications which benefit
Specifications
Technical Specifications
Full published figures for the FP8 by Martin Audio.
- PRODUCT NAME
- FP8
- TYPE
- Coaxial passive 2-way
- CROSSOVER FREQUENCY
- 2.0kHz
- FREQUENCY RESPONSE - 4 π (5)
- 63Hz - 18kHz ± 3dB , -10dB @ 50Hz with preset
- DRIVERS
- LF: 8", 2" Voice coil, Neodymium Motor with flux stabilising rings HF: 1" exit, 1.7" Voice coil, Coaxial HT polymer dome compression driver
- SENSITIVITY (2.83V 1m free-field)
- 94dB
- NOMINAL IMPEDANCE
- 8 Ohms
- RATED POWER
- 250W AES, 1000W peak
- MAXIMUM SPL
- 118dB Cont, 124dB Peak (6dB)
- DISPERSION (-6dB)
- 90° H, 70° V
- CONNECTORS
- NLT4MPXX-BAG speakons (pair)
- PIN CONNECTIONS (INPUT)
- 1+ / 1-
Show all 23 specifications Show fewer specifications
- PIN CONNECTIONS (LINK)
- 1+/- and 2+/-
- ENCLOSURE
- Durable birch plywood
- FINISH
- Black hardwearing paint
- GRILLE
- Quick release steel grille with triple-layer polyester backing Access to quick release rotatable driver
- IP RATING
- IP54 when fitted with two speakON NLT4FXX connectors
- FITTINGS
- 4 x M10, 15 x M6 fixing points, dual pole-mount socket, 2 x handle pockets

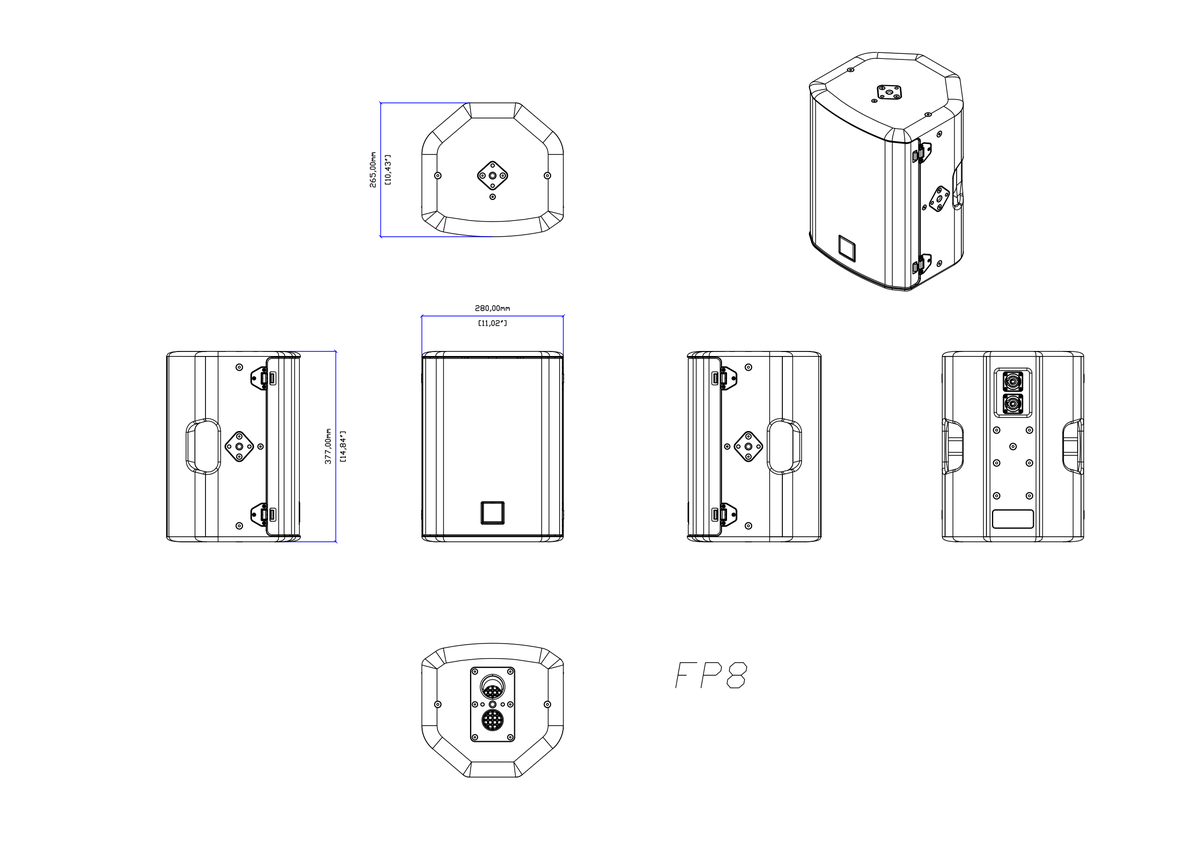

- DIMENSIONS
- (W) 376mm, (H) 280mm, (D) 265mm (W) 14.8ins, (H) 11.0ins, (D) 10.4ins
- WEIGHT
- 9.3kg (20.5lbs)
- VOLUME
- 13L
- ACCESSORIES
- Separate landscape and portrait touring and install yokes, wall bracket, rigging bar and transit cover
- Power Consumption
- 250 W
