SX112-W - Professional Passive Subwoofers Equipment Description
Detailed information about the SX112-W by Martin Audio
Technical Overview
With a response of 48Hz-150Hz ± 3dB, the ultra-compact size of the SX112 makes it an ideal partner forADORNorCDD Seriessystems where space is at a premium or where the subwoofers need to be hidden. The enclosure is constructed from plywood and has an impact-resistant finish, while the driver is prot
SX112-W Technical Specifications
Complete technical specifications and documentation for the SX112-W by Martin Audio

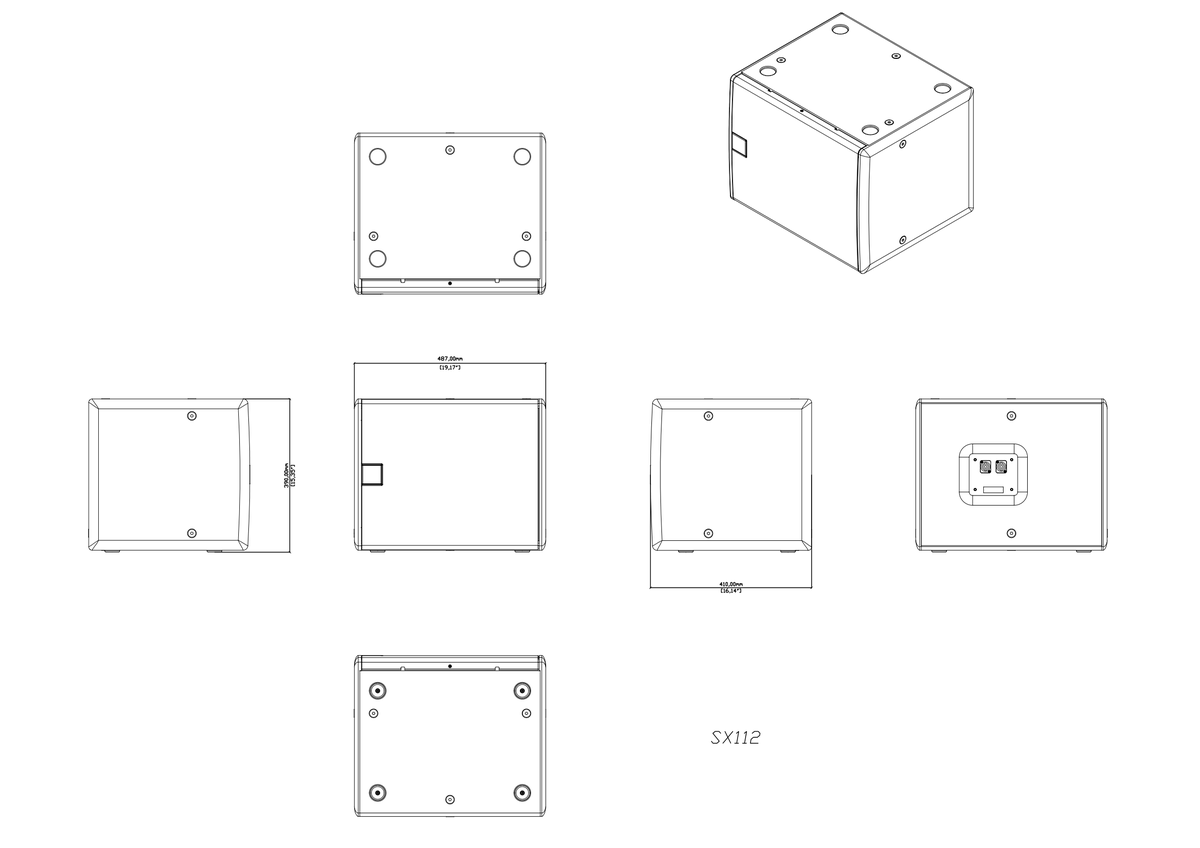

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| TYPE | Compact, single driver, direct radiating subwoofer |
| FREQUENCY RESPONSE (1) | 48Hz-150Hz ± 3dB -10dB @ 35Hz |
| DRIVER | 12” (300mm)/3” (75mm) voice coil, long excursion, ferrite magnet, waterproof cone |
| RATED POWER (2) | 400W AES, 1600W peak |
| SENSITIVITY (10) | 100dB |
| MAXIMUM SPL (9) | 126dB continuous, 132dB peak (half space) |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6dB) | Omnidirectional |
| CROSSOVER | 80-120Hz active |
| ENCLOSURE | 52 litre, Plywood |
| FINISH | Black or white textured paint |
| PROTECTIVE GRILLE | Black or white perforated steel |
| CONNECTORS | 2 x NL4 |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link+ |
| FITTINGS | 12 x M10 inserts |
| DIMENSIONS | (W) 487mm x (H) 390mm x (D) 410mm (W) 19.2ins x (H) 15.4ins x (D) 16.1ins |
| WEIGHT | 21.5kg (47.3lbs) |
