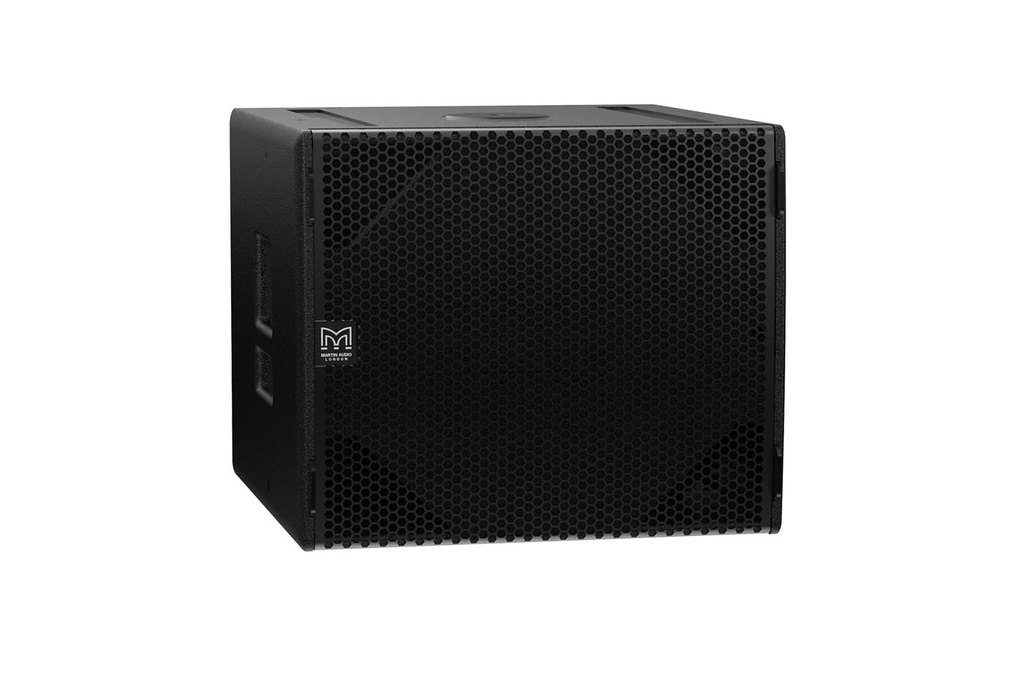

Martin Audio SX118B
Martin Audio

SX118B Martin Audio · Passive Subwoofers

18" Passive Direct Radiating Subwoofer

The SX118 is a compact, high performance subwoofer that extends the low frequency operating range of the system to 47Hz and provides exceptional low frequency output for such a compact enclosure.
Power
1,000 W
Request a Quote Data Sheet Manufacturer
Reference SX118B Brand Martin Audio

Overview

SX118B at a Glance

18'' SX Subwoofer Black

Description

About the SX118B

Manufacturer detail for the SX118B by Martin Audio.

Technical Overview

SX118 features a long-excursion 18” (460mm)/4” (100 mm) voice coil driver with a water-resistant cone and triple roll surround in a compact reflex enclosure. The design of the 18” driver maximises output while minimising power compression and distortion, and the four reflex ports have a large front

Specifications

Technical Specifications

Full published figures for the SX118B by Martin Audio.

TYPE
Compact, direct radiating subwoofer
FREQUENCY RESPONSE (1)
47Hz – 150Hz ±3dB, -10dB @ 41Hz
DRIVER
18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
RATED POWER (2)
1000W AES, 4000W peak
SENSITIVITY (10)
102dB
MAXIMUM SPL (9)
138dB peak
NOMINAL IMPEDANCE
8Ω
DISPERSION (-6dB)
Omnidirectional/or Cardioid (paired)
ENCLOSURE
Multi-laminate birch/poplar ply
FINISH
Durable Polyurea Coating
PROTECTIVE GRILLE
Black perforated Zintec
CONNECTORS
2 x NL4 type
Show all 18 specifications Show fewer specifications
PIN CONNECTIONS (INPUT)
LF: +1, -1 Link through: +2, -2
PINS CONNECTIONS (LINK)
LF: +1, -1 Link through: +2, -2
FITTINGS
Two skids on base, with mating channels on top M20 top-mounted thread plate for pole mounting 16 x M10 mounting points 2 x bar handles, 1 on each side 4 x fittings for optional transit cover 16 x M8 inserts for optional castors
DIMENSIONS (INCL SKIDS)
(W) 600mm x (H) 509mm x (D) 632mm (760mm including castors) (W) 24in x (H) 20.36in x (D) 25.26in (30.38in including castors)
WEIGHT
43.5kg (96lbs) w/o castors 47kg (104lbs) with castors
Power Consumption
1,000 W

Technical Drawing

Technical drawing for SX118B
Download PDF

Documentation

Downloads

Datasheets, manuals and drawings for the SX118B.

Data Sheet PDF Operation & Maintenance Manual PDF Technical Drawing PDF CAD Drawing DWG
