SX210 Martin Audio · Passive Subwoofers
Dual 10inch Subwoofer Black

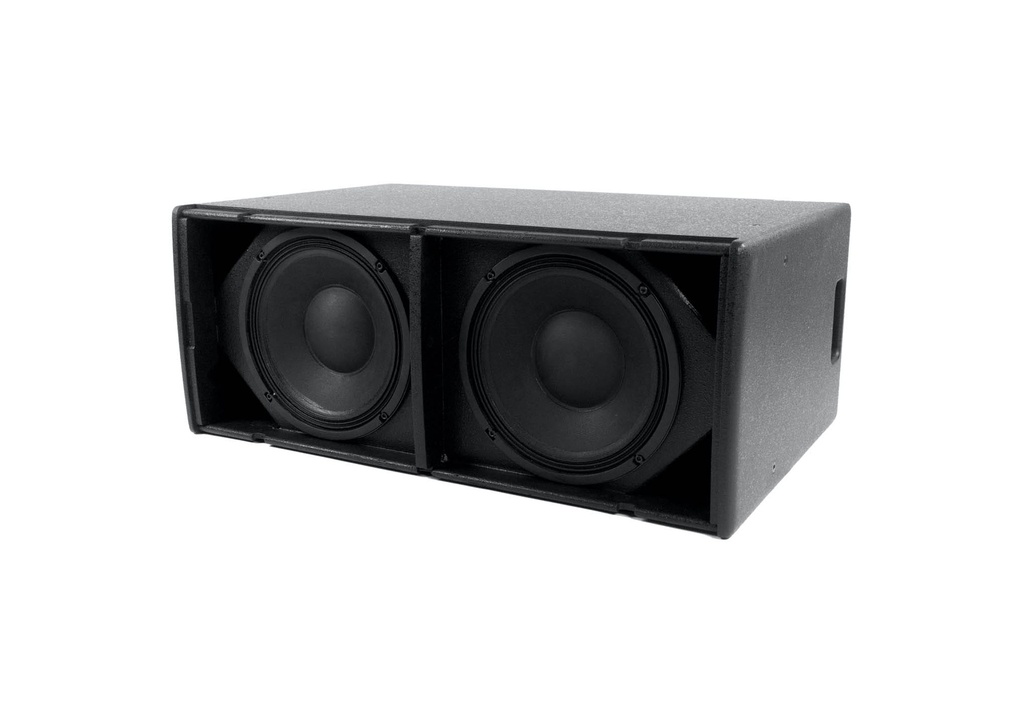

The SX210 is a slimline dual-driver subwoofer designed for situations that call for a visually unobtrusive enclosure. It can be used singly, stacked or flown via integral M8 inserts and its ultra-compact size makes it ideal for applications where space is limited. It features dual 10” (250mm)/2” (50mm) voice coil drivers and generously sized low frequency ports for reduced air noise.
Overview
SX210 at a Glance
2 x 10'' Compact Direct Radiating Sub In Black
Description
About the SX210
Manufacturer detail for the SX210 by Martin Audio.
Technical Overview
The SX210 enclosure is constructed from plywood and finished in black textured paint as standard, with white and RAL colour finish-es available to special order. An impact-resistant perforated steel grille protects the drivers, and the enclosure has twin ergonomic handles at the rear for easy handli
Specifications
Technical Specifications
Full published figures for the SX210 by Martin Audio.
- TYPE
- Slimline dual, direct radiating subwoofer
- FREQUENCY RESPONSE (5)
- 50Hz-150Hz ± 3dB, -10dB @ 42Hz
- DRIVER
- 2 x 10” (250mm)/2” (50mm) voice coil, long excursion, ferrite magnet
- RATED POWER (2)
- 500W AES, 2000W peak
- SENSITIVITY (8)
- 103dB
- MAXIMUM SPL (9)
- 127dB continuous, 133dB peak (half space)
- NOMINAL IMPEDANCE
- 4Ω
- DISPERSION (-6dB)
- Omnidirectional
- CROSSOVER
- 80-120Hz active
- ENCLOSURE
- Birch/poplar ply
- FINISH
- Black textured paint
- PROTECTIVE GRILLE
- Black perforated steel
Show all 19 specifications Show fewer specifications
- CONNECTORS
- 4 x NL4 type
- PIN CONNECTIONS (INPUT)
- 1+/1-
- PIN CONNECTIONS (LINK)
- 1+/- to 1+/-
- FITTINGS
- 16 x M8 inserts, 2 x bar handles
- DIMENSIONS
- (W) 718mm x (H) 295mm x (D) 465mm (W) 28.3ins x (H) 11.4ins x (D) 18.3ins
- WEIGHT
- 20kg (44.1lbs)
- Power Consumption
- 500 W
Documentation
Downloads

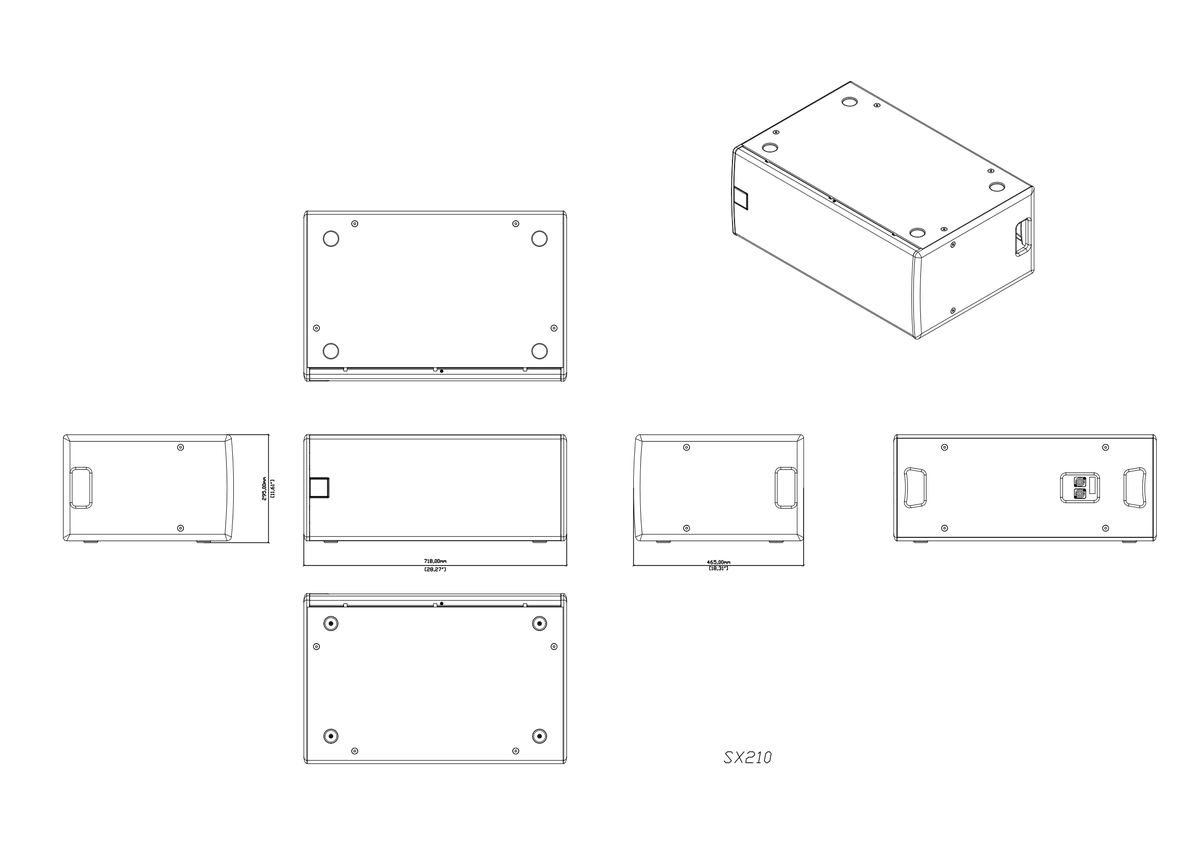

Datasheets, manuals and drawings for the SX210.
