SX212 - Professional Passive Subwoofers Equipment Description
Detailed information about the SX212 by Martin Audio
Technical Overview
The SX212 is designed to be used with full-range loudspeaker systems and extends the low frequency operating range of the combined system down to 40Hz. The enclosure is constructed from plywood and is internally-braced to reduce energy transmission to the enclosure panels and baffle. Its perforated
SX212 Technical Specifications
Complete technical specifications and documentation for the SX212 by Martin Audio

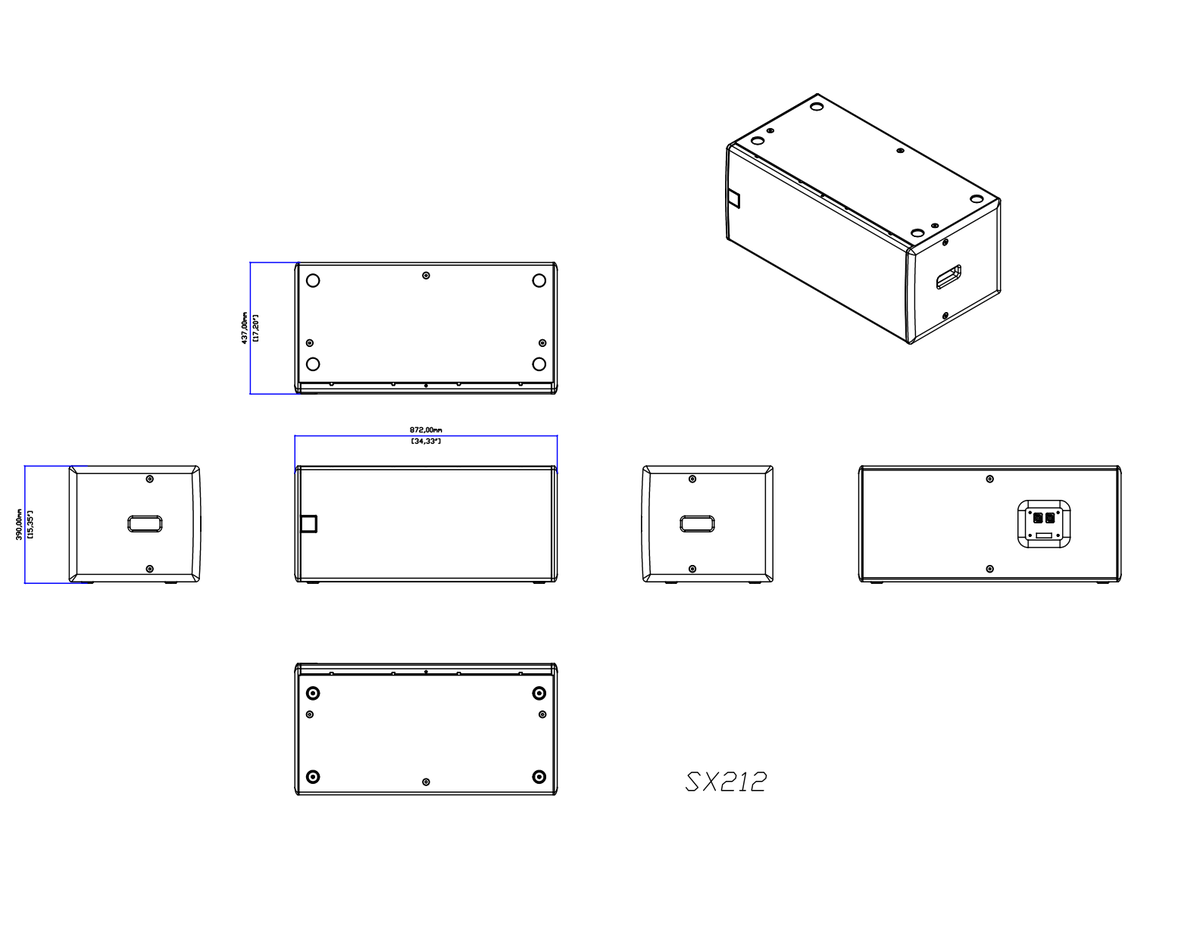

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| TYPE | Compact, dual-driver, direct radiating subwoofer |
| FREQUENCY RESPONSE (1) | 48Hz-150Hz ± 3dB, -10dB @ 35Hz |
| DRIVER | 2 x 12” (300mm)/3” (75mm) voice coil, long excursion, ferrite magnet, waterproof cone |
| RATED POWER (2) | 800W AES, 3200W peak |
| SENSITIVITY (10) | 106dB |
| MAXIMUM SPL (9) | 132dB continuous, 138dB peak (half space) |
| NOMINAL IMPEDANCE | 4Ω |
| DISPERSION (-6dB) | Omnidirectional |
| CROSSOVER | 80-120Hz active |
| ENCLOSURE | 100 litre, Plywood |
| FINISH | Black or white textured paint |
| PROTECTIVE GRILLE | Black or white perforated steel |
| CONNECTORS | 2 x NL4 |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link+ |
| FITTINGS | 12 x M10 inserts |
| DIMENSIONS | (W) 872mm x (H) 390mm x (D) 437mm (W) 34.3ins x (H) 15.4ins x (D) 17.2ins |
| WEIGHT | 39kg (86lbs) |
