SX215 Martin Audio · Passive Subwoofers

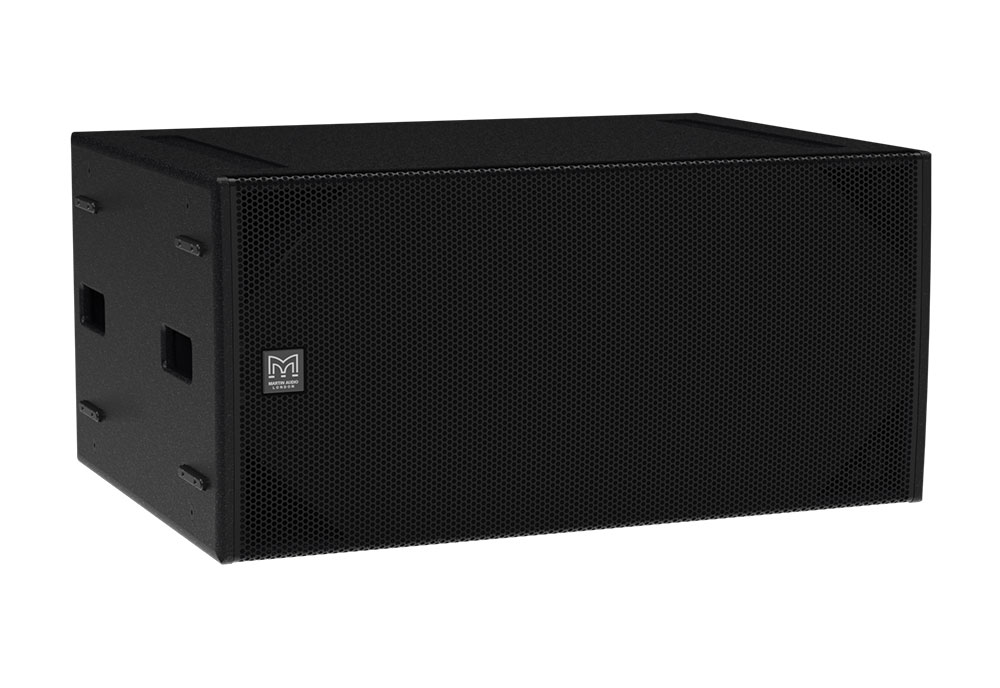

Dual 15”, passive, direct radiating subwoofer
The SX215 is a very powerful, compact subwoofer with an operating range of 45-100Hz + 3dB. Featuring two long-excursion 15” (380mm)/4” (100mm) voice coil drivers with water-resistant cones and triple roll surrounds, it delivers exceptional low frequency extension and impact from such a compact enclosure. Eight reflex ports with a large frontal area increase LF output efficiency and reduce turbulent air noise at high levels.
Power
1,600 W
Overview
SX215 at a Glance
2 x 15'' SX Subwoofer Black
Description
About the SX215
Manufacturer detail for the SX215 by Martin Audio.
Technical Overview
Finished in hardwearing textured paint, the SX215 incorporates threaded inserts for eyebolt suspension of a single enclosure, while an M20 threaded plate facilitates pole-mounting of Martin Audio full-range enclosures. Four ergonomic handles assist handling and installation, and the drivers are prot
Specifications
Technical Specifications
Full published figures for the SX215 by Martin Audio.
- TYPE
- Dual Driver, Direct radiating subwoofer
- Crossover Frequency
- 100Hz
- FREQUENCY RESPONSE 4 π (5)
- 45Hz - 100Hz ± 3dB, -10dB @ 36Hz
- DRIVERS
- LF: 15” with 4” Voice coil, Ferrite Motor
- SENSITIVITY
- (2W 1m half space) 106dB
- NOMINAL IMPEDANCE
- 4 Ohms
- RATED POWER
- AES 1600W, PEAK 6400W
- MAXIMUM SPL (SYSTEM)
- 136dB continuous, 142dB peak
- DISPERSION
- Omni-Directional/ or Cardioid (paired)
- Connectors
- 2 x NL4
- PIN CONNECTIONS (INPUT)
- 1+/-
- PIN CONNECTIONS (LINK)
- 1+/- and 2+/-
Show all 15 specifications Show fewer specifications

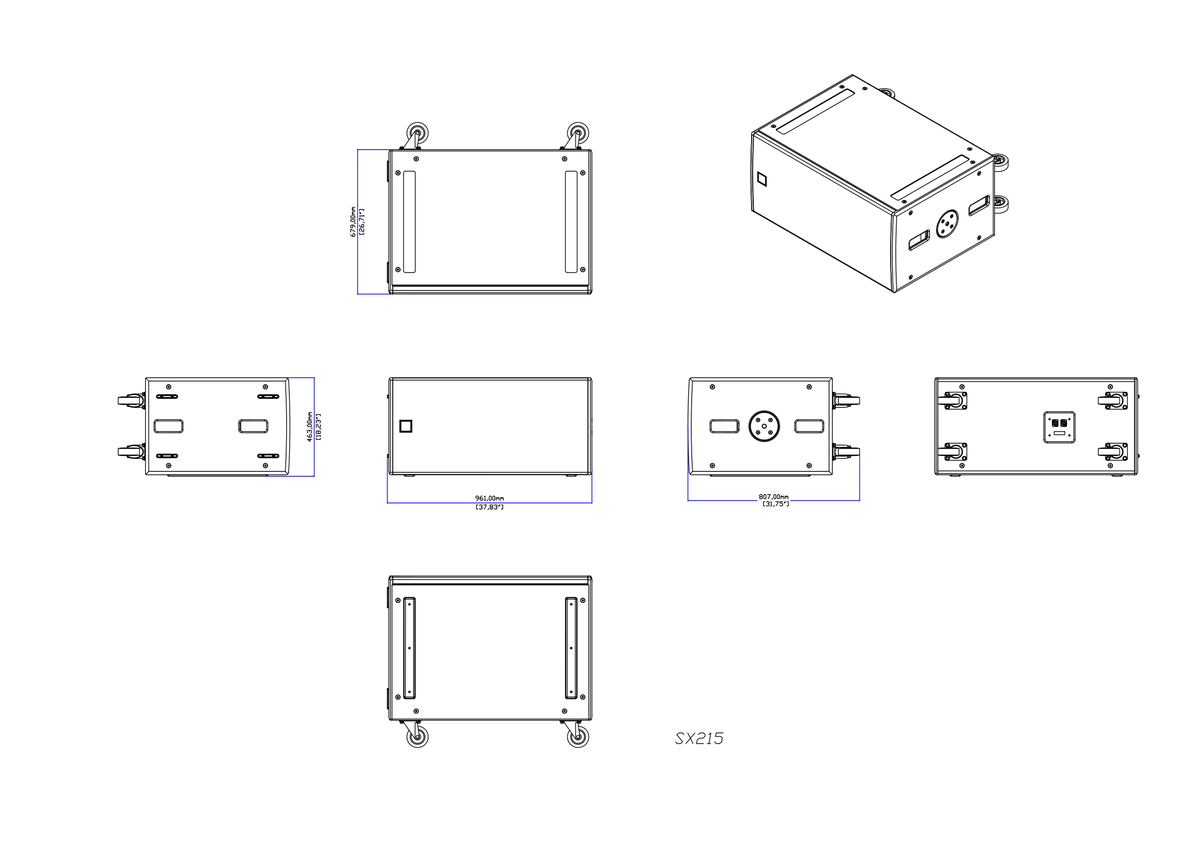

- DIMENSIONS
- (W) 961 mm, (H) 463 mm, (D) 679 mm ( 807mm with Casters) (W) 37.83 ins, (H) 18.23 ins, (D) 26.73 ins ( 31.77 ins with Casters)
- WEIGHT
- 64kg (141lbs)
- Power Consumption
- 1,600 W
