WPM Martin Audio
WPM is incredibly versatile. Its very small footprint and light weight make it the system of choice for smaller venues which require superb fidelity, coverage consistency and control from an ultra-compact line array. With a peak SPL of 130dB peak, it is also very powerful — a 12-box array will throw

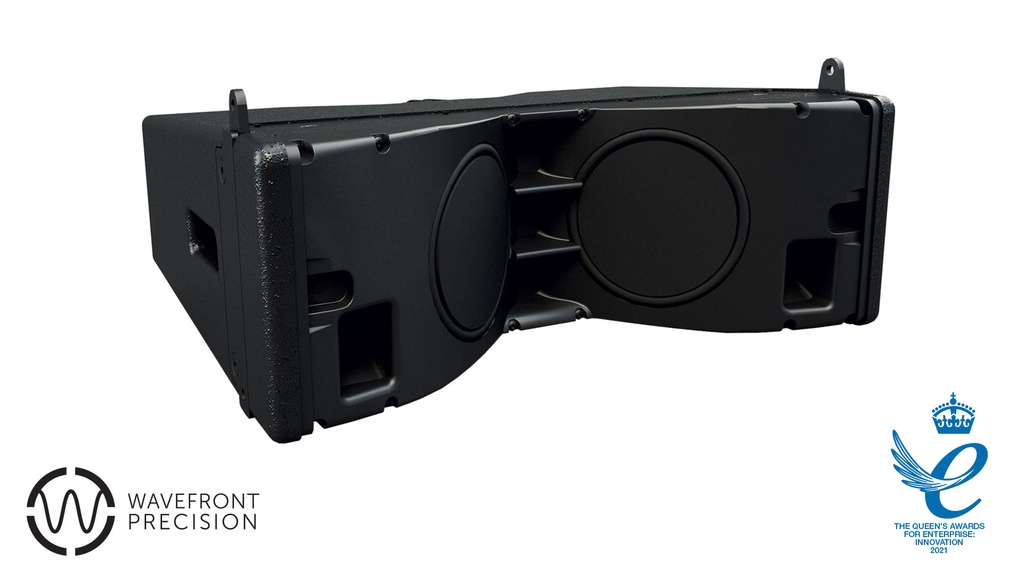

WPM is a 2-way passive, 2 x 6.5” mini line array featuring scalable resolution optimisation. This flexible approach to array optimisation provides greatly improved coverage, consistency and control compared to a standard line array.
Weight
14 kg
Dimensions
377 x 500 x 185 mm
Specifications
Technical Specifications
Full published figures for the WPM by Martin Audio.
- TYPE
- Two-way, passive line array element
- FREQUENCY RESPONSE (5)
- 76Hz-18kHz ± 3dB
- DRIVERS
- LF: 2 x 6.5” (165mm) contoured-diaphragm /2” (50mm) edge wound CCAW voice coil, neodymium magnet drivers, reflex loaded HF: 3 x 1.4” (35mm) aluminium dome /1.4” (35mm) voice coil, neodymium magnet compression drivers on constant directivity waveguide
- SYSTEM RESOLUTION
- 1 to 4 enclosures per amplifier channel
- MAXIMUM SPL (9)
- 130dB peak (1 cabinet)
- NOMINAL IMPEDANCE
- 16Ω
- DISPERSION (-6dB)
- 100º horizontal (-6dB), 125º horizontal (-10dB) 10° vertical
- CROSSOVER
- 1.2kHz passive
- ENCLOSURE
- Vertical trapezoid with 5º wall angle, Multi-laminate birch and poplar-ply construction
- FINISH
- Black textured paint
- PROTECTIVE GRILLE
- Black HEX perforated steel
- CONNECTORS
- 2 x NL4 type
Show all 17 specifications Show fewer specifications
- INPUT CONNECTIONS
- 1+/1-
- FITTINGS
- Integral 3-point rigging system 2 x side pocket handles 2 x rear grip handles
- FLOWN ARRAY MAXIMUM
- 16 enclosures in single array

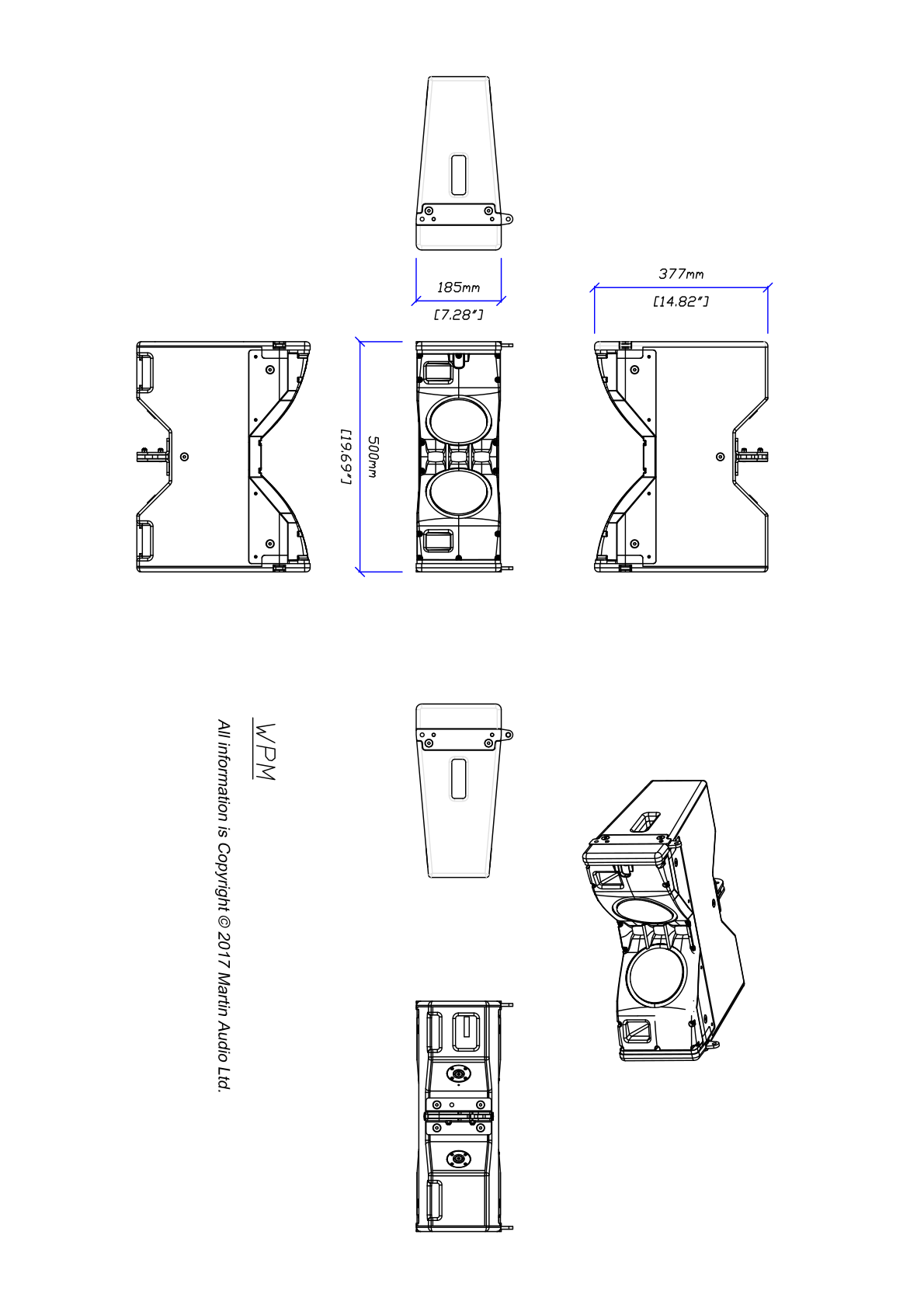

- DIMENSIONS
- (W) 500mm x (H) 185mm x (D) 377mm (W) 19.7in x (H) 7.3in x (D) 14.8in
- WEIGHT
- 14kg (30.9lbs)
