OVOID SUB 4.1 - 15" - RED Pequod · Passive Subwoofers
Hi Pro Subwoofers
Overview
OVOID SUB 4.1 - 15" - RED at a Glance

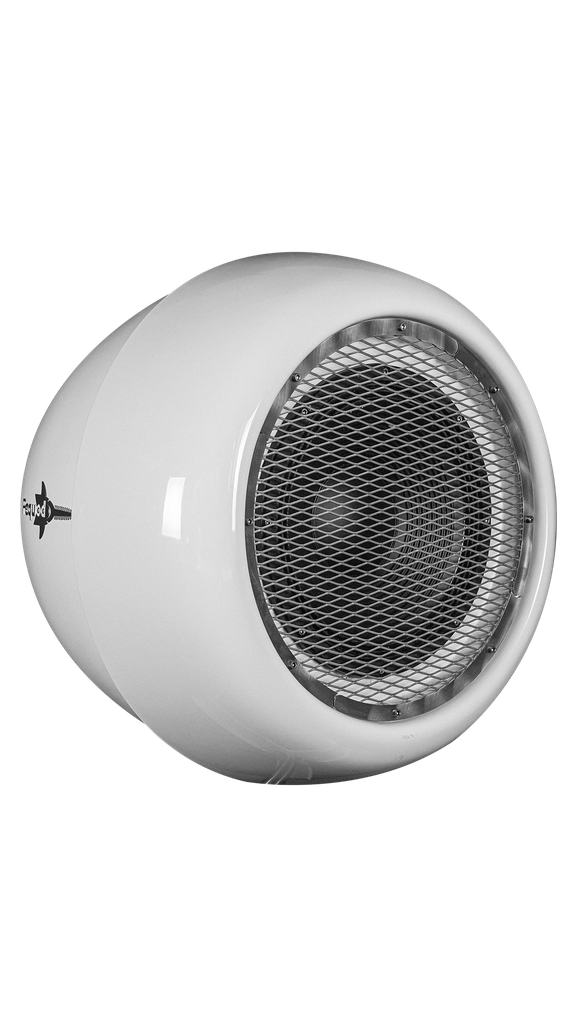

OVOID SUB 15'' 4.1 with protection grill
Description
About the OVOID SUB 4.1 - 15" - RED
Manufacturer detail for the OVOID SUB 4.1 - 15" - RED by Pequod.
Technical Overview
The Ovoid subwoofers are compact, modular bass-reflex subs that are designed to be integrated into other Pequod Acoustics products. They form the base of the Kona and Twister systems, and are often used with the Shockwave system. The sound generating components are premium quality, and the composite shell and stainless bases protect the delicate internals. Construction tolerances are very high, vibration is reduced to a minimum, and the subs perfectly complement the look of the horn loaded systems while provided the punchy bass notes needed to complete the full range of frequencies needed for an excellent listening experience. The Ovoid subs are available in 15 inch (4.1) and 18 inch (5.1) versions.
Specifications
Technical Specifications
Full published figures for the OVOID SUB 4.1 - 15" - RED by Pequod.
- TYPE
- Bass reflex subwoofer in ovoidal structure
- FREQUENCY RESPONSE
- 35 Hz - 1,5 KHz
- TOTAL SENSITIVITY
- 97 dB 1W/m
- NOMINAL IMPEDANCE
- 8 Ohm or 4 Ohm (depending on the version)
- POWER HANDLING
- 1700 W nominal, 3400 W continuous program
- MANAGE
- Amp. 3400 W 8 Ohm or 4 Ohm depending on te version
- RECOMMENDED AMPLIFIER
- Full Fatt Audio FFA 10000
- DISPERSION
- Omnidirectional
- CONSTRUCTION MATERIALS
- Fiber-reinforced composite, stainless steel
- FINISH
- all ral color and texture on order
- Dimensions (L x W x H)
- 700 x 700 x 700 mm
- Weight
- 23 kg
Documentation
Downloads
Datasheets, manuals and drawings for the OVOID SUB 4.1 - 15" - RED.
