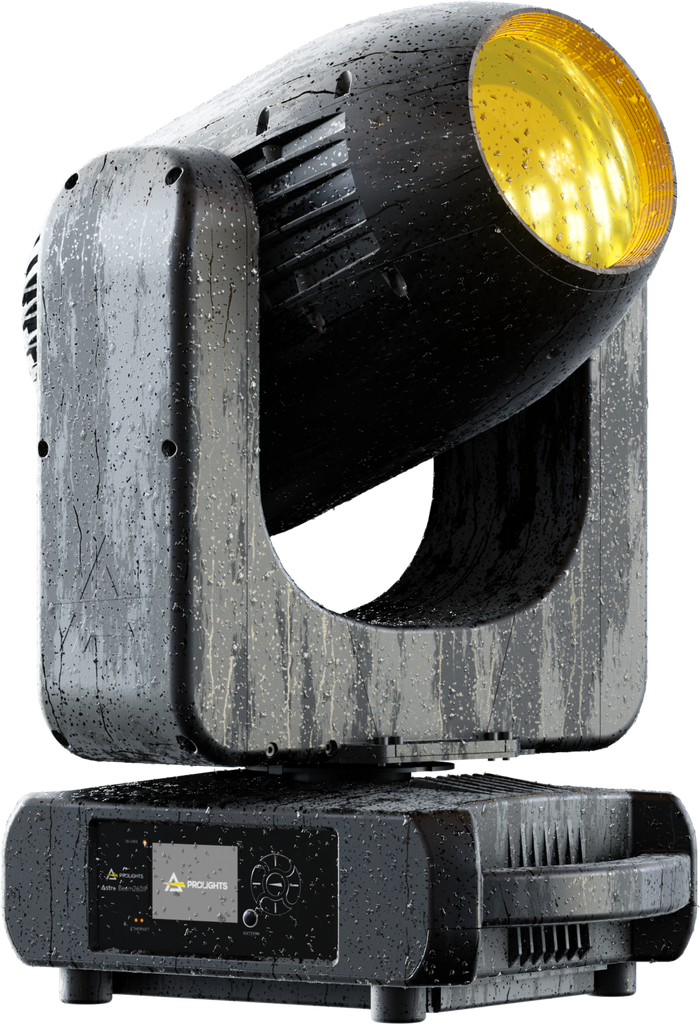

Prolights - Astra Beam260IP

Prolights

IP65 moving beamlight with 260W PRO long life lamp (6.000 hours)



Description

Astra Beam260IP is a compact outdoor IP65 beam moving head with a long lamp life source, engineered to produce a sharp and parallel beam of light with a boosted light output, thanks to its brand new 260W Osram SIRIUS HRI PRO arc lamp. Astra Beam260IP is smaller, brighter and faster than any other IP pure beamlight on the market, and when compared to indoor alternatives it requires less maintenance time and extra costs, due to the sealed housing and outstanding long lamp life (6.000 hours). In addition, with its compact size and at an attractive price point, this luminaire is ideal even for indoor applications.

Features:
IP65 design, compact size and fast movements
260W PRO Osram SIRIUS HRI long life (6.000 hours) lamp
Two overlapping prism to create spectacular aerial effects

LIGHT SOURCE
  • Source:
    260
    W
    PRO OSRAM SIRIUS HRI Lamp
  • CCT:
    7.800
  • Lux:
    1'984'000
    lx
    @5 m
  • Source life expectancy:
    6.000 h
OPTICS
  • Beam angle:
    2
    °
  • Lens diameter:
    140
    mm
  • Lens type:
    HD anti-reflection lenses with achromatic coating
  • Focus:
    motorised
COLOUR SYSTEM
  • CCT:
    on wheel 2.500 K and 3.200 K + CTB
  • Colour wheel:
    10
    colour filters
DYNAMIC EFFECTS
  • Control Resolution:
    16-bit dimmer
  • Fixed gobos:
    15
    fixed gobos + open
  • FX generator:
    2
    prisms overlap for spectacular aerial effects
  • Circular prism:
    8
    f
    with bi-directional rotation, indexing
  • Linear prism:
    6
    f
    with bi-directional rotation, indexing
  • Frost:
    linear 0 - 100% frost filter
BODY
  • Hardware on-board:
    sockets for quick-Lock Omega bracket (clamp not included)
  • Pan range:
    540
    °
  • Tilt range:
    230
    °
  • Pan/Tilt resolution:
    16
    bit
  • Feedback:
    automatic repositioning after accidental movement
  • Body:
    weatherproof IP65 construction
  • Body colour:
    RAL 9004
CONTROL
  • Protocols:
    DMX512, RDM, Art-Net, sACN, W-DMX
  • DMX channels:
    17
    channel
  • Wireless Control:
    included, Wireless Solution transceiver
  • RDM:
    RDM for remote monitoring and settings
  • Display:
    LCD high resolution colour display with autoflip
  • Firmware upgrade:
    via menu with internal memory or via USB - DMX interface (UPBOXPRO/UPBOX2) not included
ELECTRONICS
  • Dimmer:
    linear 0 ~ 100% mechanical dimmer
  • Strobe / shutter:
    1 - 28
    flash(s), mechanical
  • Display battery:
    self-charging battery backup
  • Operating temperature:
    -20° ~ +45° Ta
ELECTRICAL
  • Mains power supply:
    100-240V - 50/60Hz
  • Max power consumption:
    345
    W
  • Output (at 230V):
    7
    units on a single power line
  • Power factor:
    0,96
PHYSICAL
  • IP rating:
    65
    (*)
  • Cooling:
    forced air with fan
  • Suspension and fixing:
    any position with quick-lock omega brackets
  • Signal connection:
    Seetronic XLR 5p IN/OUT connectors
  • Power connection:
    Seetronic powerCON TRUE IP65 IN
  • Dimensions (WxHxD):
    385x603x271
    mm
  • Weight:
    28,6
    kg
(*)
  • NOTE:
    Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals:
    CE, UKCA, RCM, cTUVus, FCC



Downloads

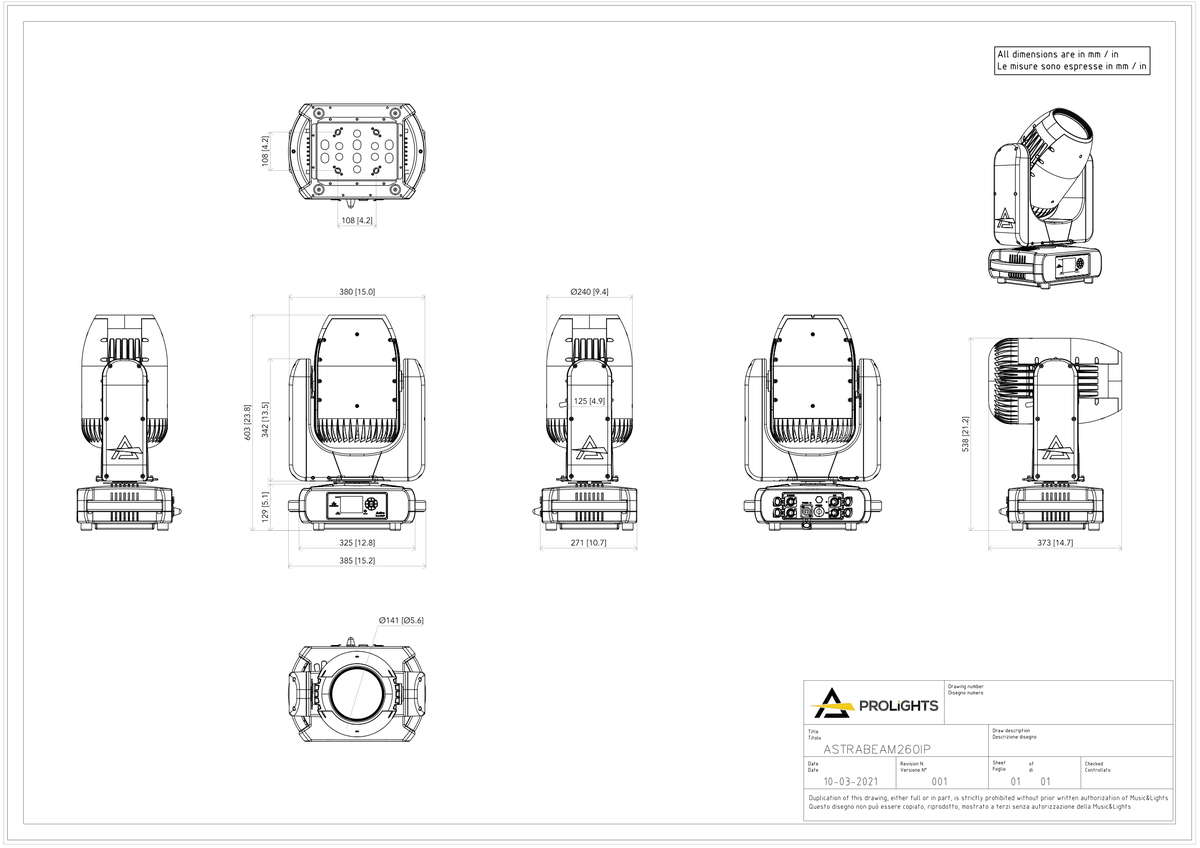

Data Sheet OM Manual Drawing (DWG) Drawing (PDF) DMX Chart
