ECO-MadrixPanel | Vision Professional Lighting Effect Equipment
Professional Lighting Effect solution by Vision - Available throughout the Middle East

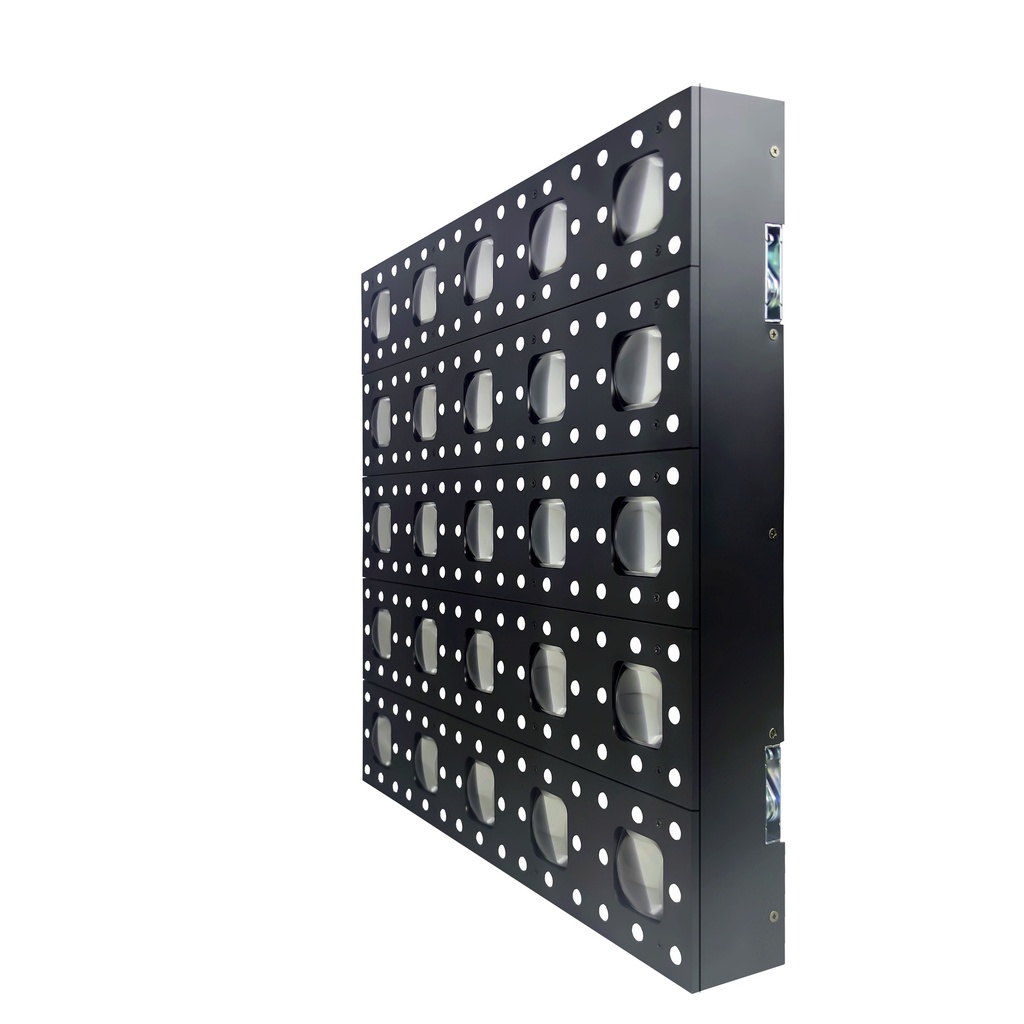

50x50cm Panel, 25x10w LED + 200 x Pixels
Vision
50x50 LED Panel 225W RGB LED fixture with 25×10W and 200×3-in-1 LEDs, supporting DMX/RDM/Art-Net, with smooth dimming, individual control, and easy setup—ideal for professional lighting applications requiring vibrant color effects and versatility.
Description
Detailed information about the ECO-MadrixPanel by Vision
Technical Overview
ELECTRICAL & LIGHTING
- Voltage: AC 110–220V, 50/60Hz
- Power Consumption: 225W
-
Light Source:
- 25 × 10W 4-in-1 LEDs
- 200 × 3-in-1 LEDs (individually controllable)
- Dimming/Strobe: Smooth, flicker-free dimming and strobe effects
CONTROL & COMMUNICATION
- DMX Channels: 27 / 175 CH
- Protocols Supported: DMX512, RDM, Art-Net
- Firmware Upgrade: Via DMX
- Control Modes: Sound-activated, Auto-run, Networked
- Display: LED screen
- Signal I/O: 3-pin XLR input/output, RJ45 connector
- Power I/O: PowerCON-compatible in/out
PHYSICAL & FEATURES
- IP Rating: IP20
- Main Features: Easy installation, excellent color mixing performance
- Dimensions: 500 × 500 mm
- Weight: 8 kg
