VBAR-1523 | Vision Professional Bar Equipment
Professional Bar solution by Vision - Available throughout the Middle East
Vision

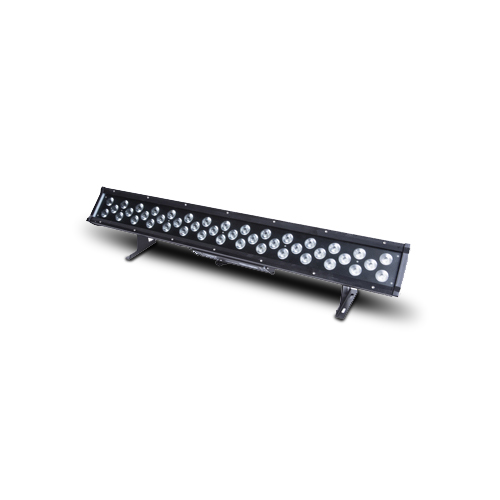

44* Tri-3W RGB LED bar with auto running and built-in programs, M/S, DMX 512, static color
Technical Specifications
Complete technical specifications and documentation for the VBAR-1523 by Vision

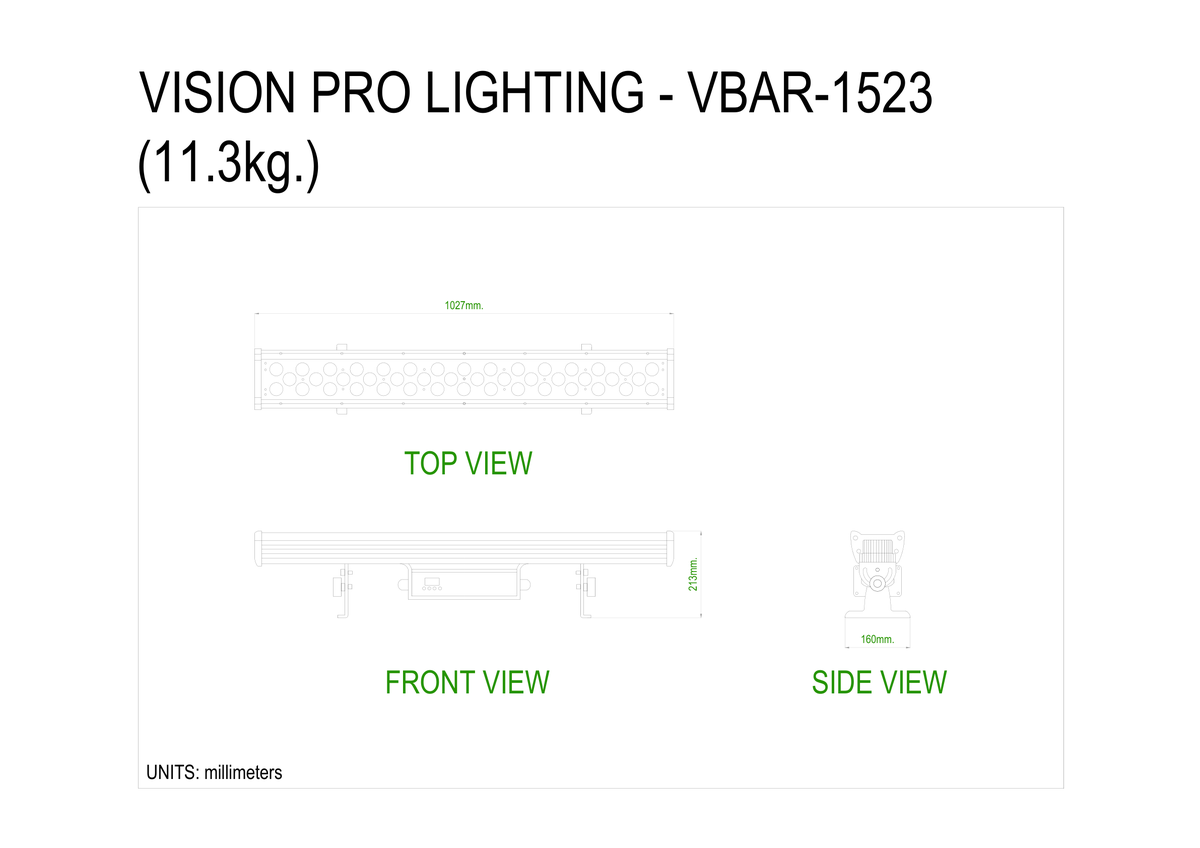

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| LED | 44* tri-3W RGB |
| Beam angle | 45° |
| DMX channels | 5, 8, 9 channels |
| Control mode | Auto-running, built-in programs, M/S, DMX 512, static color |
| Operation mode | LED display |
| Lumen | R902, G974, B1094, RGB2810 lux at 2 meters |
| Power supply | AC100V-240V, 60HZ/50HZ |
| Power consumption | 152W |
Downloads & Documentation
Access technical documentation, manuals, and resources for the VBAR-1523 by Vision
