VBAR-803 at a Glance
24* Tri-3W RGB LED bar with auto running and built-in programs and IP66 rating
Description
About the VBAR-803
Manufacturer detail for the VBAR-803 by Vision.
Technical Overview

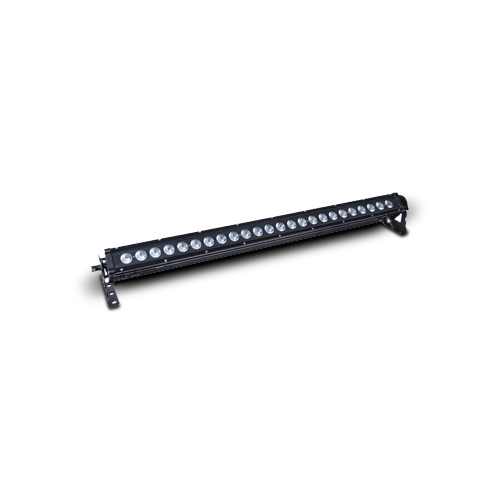

The VBAR-803 is IP65 rated Stage LED Light Bar, die-casting aluminum private tooling housing, used 12Pcs*3W RGB 3-in-1 LED, beam angle 15° and 40° for optional. LED display, total power 80W, with very good color mixing, and already applied in many indoor & outdoor lighting Projects.
Specifications
Technical Specifications
Full published figures for the VBAR-803 by Vision.
- LED
- 24* tri-3W RGB
- Beam angle
- 40°
- IP rating
- IP 66
- DMX channels
- 3, 5 channels
- Control mode
- Auto-running, built-in programs, M/S, DMX 512, static color
- Operation mode
- LED display
- Lumen
- R335. G372, B417. RGB1097 lux at 2 meters
- Power supply
- AC100V-240V, 60HZ/50HZ
- Power consumption
- 80W
- Ingress Protection
- IP rated
Documentation
Downloads

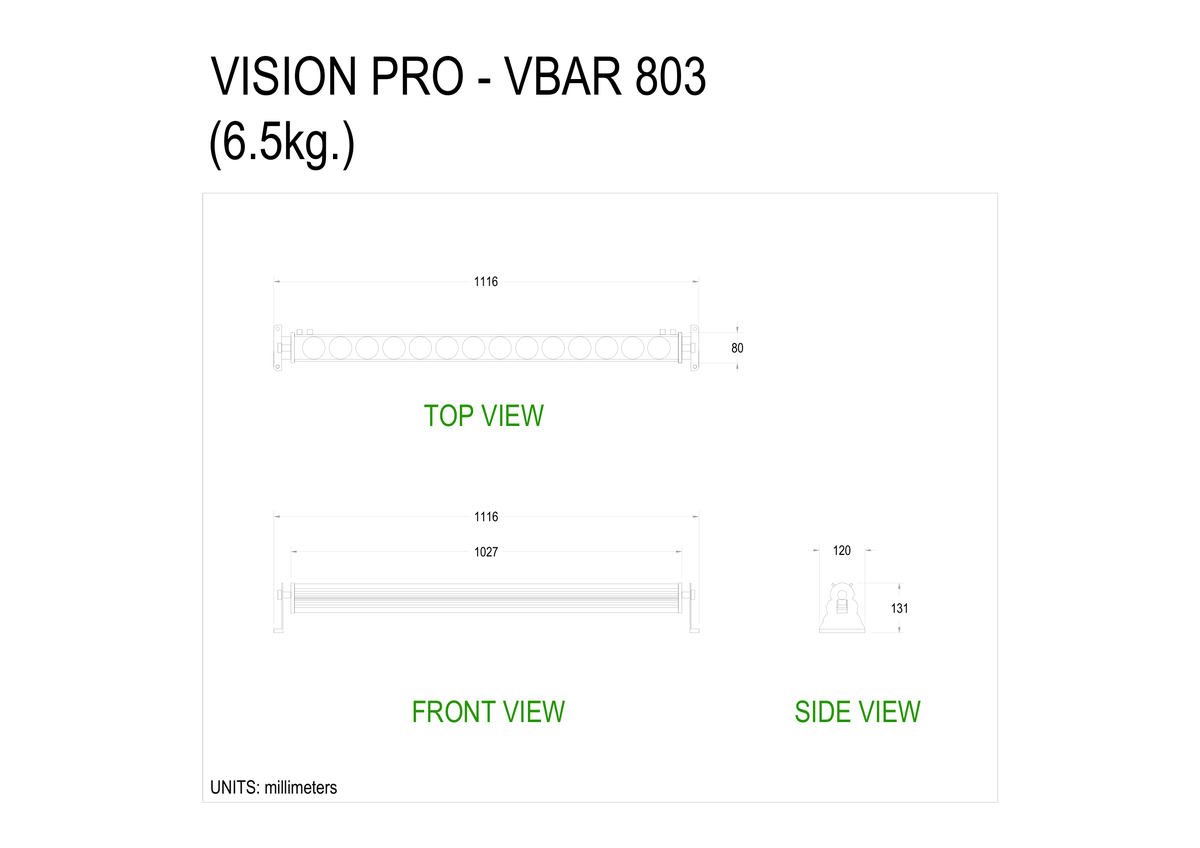

Datasheets, manuals and drawings for the VBAR-803.
Case studies
Projects using the VBAR-803
Real installations across the Middle East built with this product.
