VEF3 | Vision Professional Architectural Lighting Equipment
Professional Architectural Lighting solution by Vision - Available throughout the Middle East
Vision

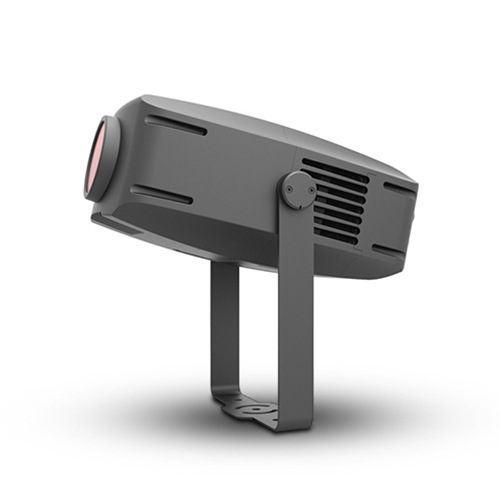

IP65-rated 200W white LED outdoor light radiating 4500 lumens with 7+1 rotating gobo, gobo shake, gobo bi-directional rotation, and patterns and colors that create a rainbox flow effect
Technical Specifications
Complete technical specifications and documentation for the VEF3 by Vision

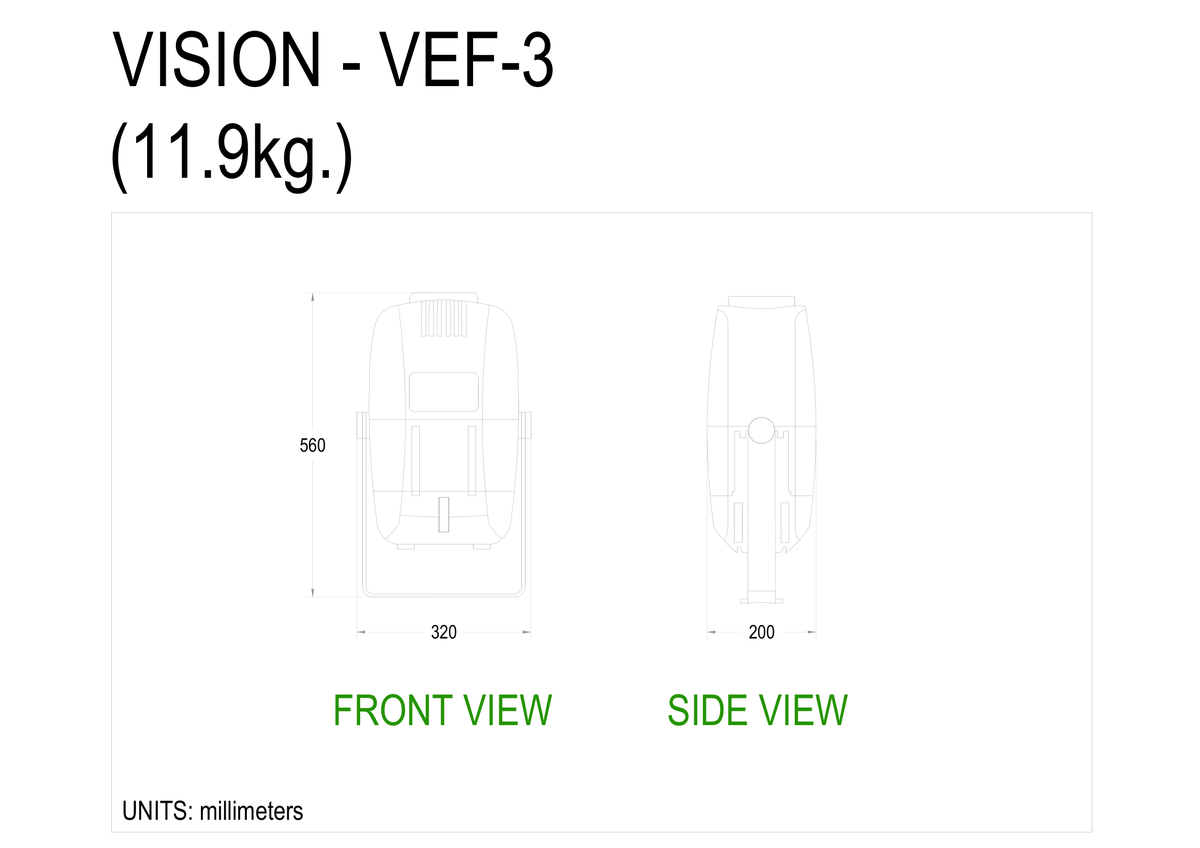

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| LED | Imported 200W white light group |
| Lumen | 4500 lumens |
| IP grade | IP 65 |
| CCT | 7500K |
| Beam angle | 15°, 30°, 45° |
| Rotating wheel | 1 (7+1 rotating gobo, gobo shake, gobo bi-directional rotation, gobo can be customized) |
| Fixed wheel | 1 (7+1 fixed gobo, gobo shake, gobo bi-directional rotation) |
| Function | Patterns and colors create a rainbox flow effect |
| Control mode | DMX512, RDM |
| DMX channels | 10, 11 channels |
| Colors | Red, green, blue, yellow, light blue, magenta, orange |
| Prism | Four prism |
| Focus | Electronic |
| Frost | 1 pcs professional atomization lens |
| Housing material | Magnesium-aluminum alloy |
| Housing color | Cement grey / black |
Downloads & Documentation
Access technical documentation, manuals, and resources for the VEF3 by Vision
