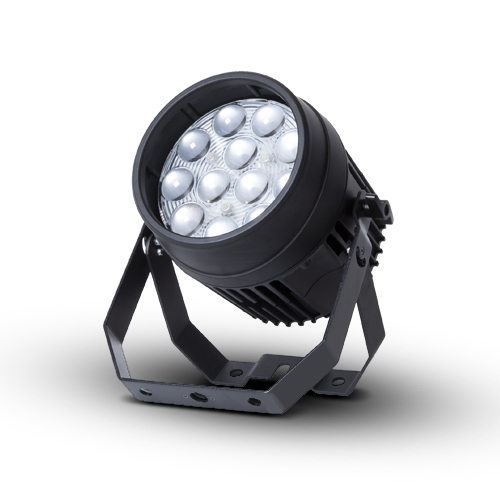

VLED-901Z | Vision Professional Par Equipment
Professional Par solution by Vision - Available throughout the Middle East
Vision
IP20-rated LED and backlight system with built-in programs and master/slave DMX channels
Technical Specifications
Complete technical specifications and documentation for the VLED-901Z by Vision

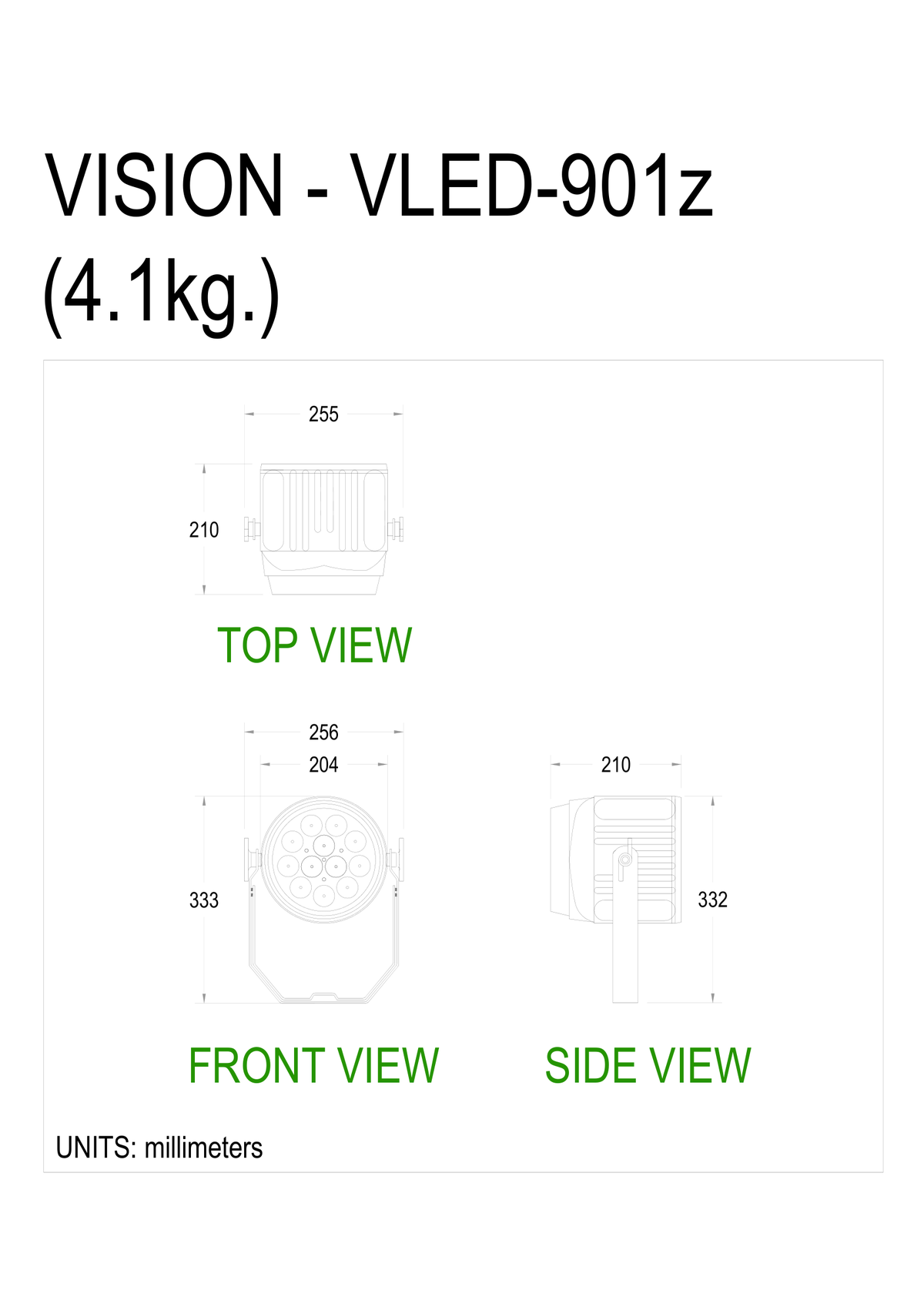

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| LED system | 12 x 10W RGBW LEDs |
| Backlight system | 21 x RGB 5050 SMD |
| Control mode | Auto/ built-in programs, master/slave, DMX |
| PWM backlight | 3.3KHz |
| Output | 27700 lux (10°) |
| DMX channels | 6, 10, 14 channels |
| Dimmer | 0-100% |
| Strobe | 0-20Hz |
| Beam angle | 5°- 60° |
| IP rating | IP20 |
| Housing | Die-cast powder coated aluminum |
