VPL-BLADE2 Vision
Vision Blade 2i ZOOM
Side 1: 5*60W RGBW 4in1 LED with zoom
Side 2: White strobe tube+ RGB Background Pan/Tilt infinite Movement
Description
About the VPL-BLADE2
Manufacturer detail for the VPL-BLADE2 by Vision.
Technical Overview

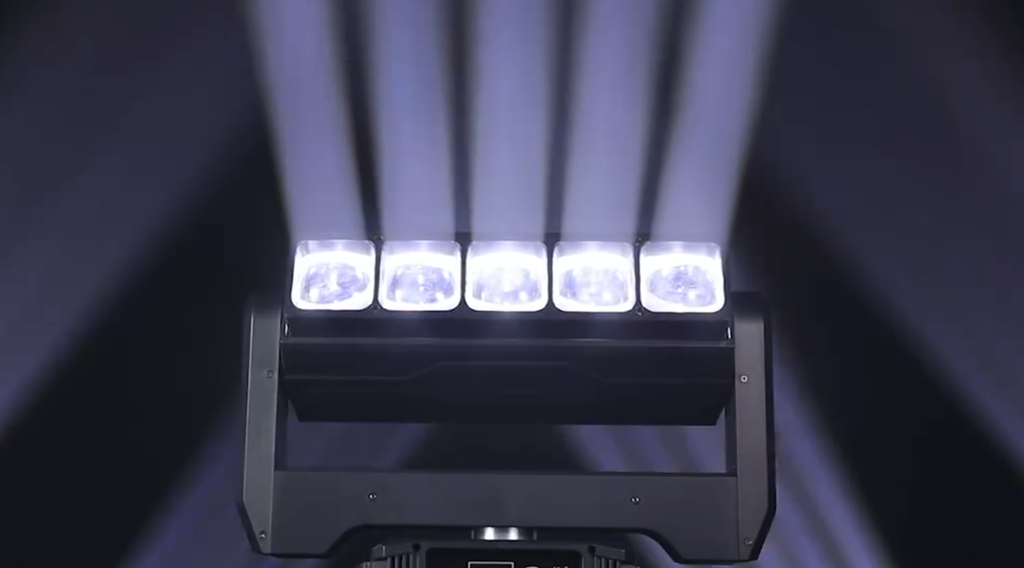

The Vision Blade 2i ZOOM is an innovative pixel LED bar designed for immersive stage visuals and dynamic wash lighting.
It features 5 powerful 60W RGBW front LEDs with full pixel control, and a back panel comprising white and RGB LEDs for additional visual layers. With a zoom range from 2.8° to 50°, infinite pan/tilt rotation, and 18-zone strobe control, the Blade 2i delivers stunning visual versatility. It's ideal for concerts, events, installations, and TV productions demanding bold, animated lighting.
Specifications
Technical Specifications
Full published figures for the VPL-BLADE2 by Vision.
- Permitted Temperature
- 0°C to 40°C
- Housing Color
- Black
- Housing Material
- Metal / Aluminum
- DMX Channels
- 24 / 29 / 105 Channels
- Control Protocol
- DMX512, Auto
- Cooling
- Intelligent fan cooling system
- Beam Angle
- 2.8° – 50° (motorized zoom)
- IP Grade
- IP 20
- LED Back
- 42 × 3W White + 84 × 0.3W RGB
- LED Front
- 5 × 60W RGBW 4-in-1
- Dimensions (L x W x H)
- 215 x 506 x 385 mm
- Weight
- 15 kg
Show all 16 specifications Show fewer specifications
- Power Consumption
- 500 W
- Operating Voltage
- 240 V
- Power Connection
- in/out
- Ingress Protection
- IP rated
Documentation
Downloads
Datasheets, manuals and drawings for the VPL-BLADE2.
