VTR-364 | Vision Professional Architectural Lighting Equipment
Professional Architectural Lighting solution by Vision - Available throughout the Middle East
Vision

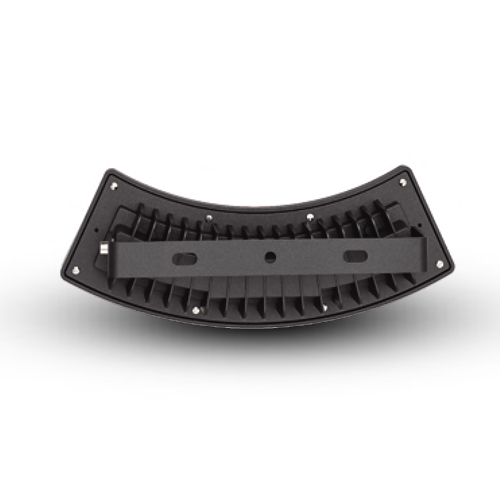

IP65-rated outdoor light consisting of 18 LEDs radiating 11001 lumens with versatile beam light and spot angles and natural convection cooling
Description
Detailed information about the VTR-364 by Vision
Technical Overview
tree light 36w,RGBW, IP65
Technical Specifications
Complete technical specifications and documentation for the VTR-364 by Vision

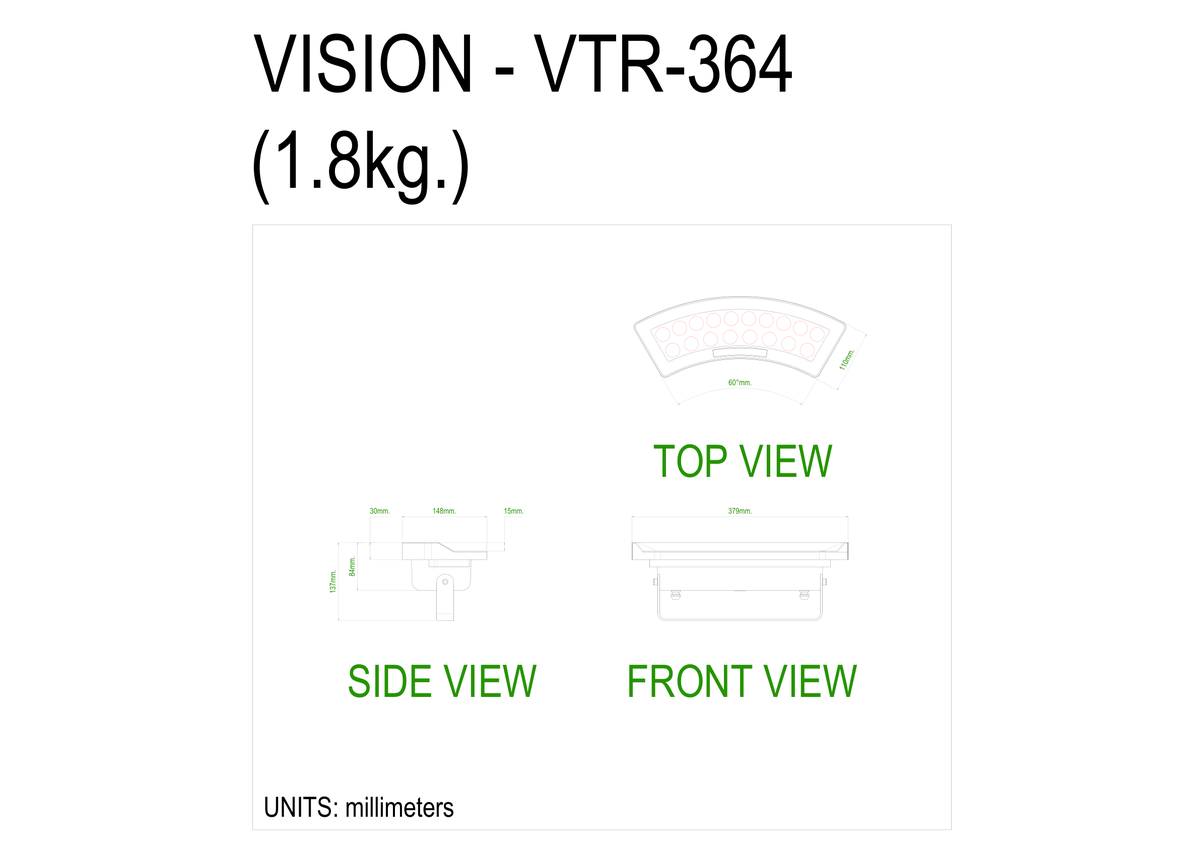

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| LED | 18 pcs |
| Lumen | 11001 lumens |
| IP grade | IP 65 |
| Beam light | 20°, 30°, 40° |
| Spot angle | 40°, 50°, 75° |
| Cooling | Natural convection |
| Control protocol | DMX512, RDM |
| Segmented control | Integral control |
| Housing material | Die-cast aluminium |
| Housing color | Matte black / grey |
| Power installation | Independent |
| Connection | 5-pin rubber cable: input / output |
