Overview

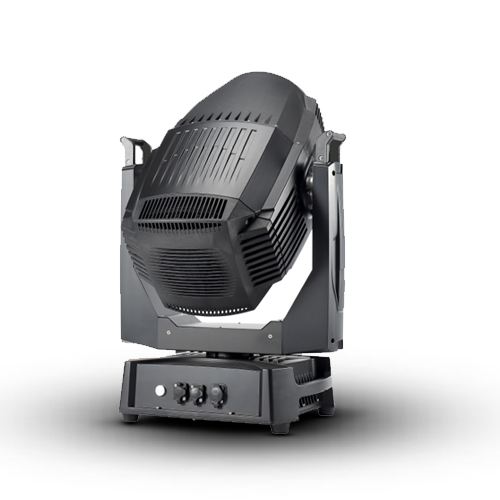

XBeam480IP at a Glance
High precision optical lens combination with 8 + 16 prism stack that can combine a dynamic effect with adjustable soft spot and frost angle
Specifications
Technical Specifications
Full published figures for the XBeam480IP by Vision.
- Prism
- 8+16 prism stack for a dynamic effect combination
- Optical lens
- High precision optical lens combination
- DMX channel
- 16/24 channels
- Control model
- DMX512, RDM
- LED
- LCD display+ press button
- Light source
- Philips 460w lamp XY axis super fast and ultra silent, 3-phase step motors
- Color temperature
- 8500K, life span 2000Hs 12 colors with white, semi-color effect
- Frost effect
- Adjustable soft spot angle
- Strobe
- 0.5-9 PS
- Beam angle
- 0-2°
- IP rating
- IP65
- Housing
- High temperature resistant, UV resistant and antioxidant alloy plastics with national standard die casting
Show all 14 specifications Show fewer specifications
- Power Consumption
- 520 W
- Ingress Protection
- IP rated
Documentation
Downloads
Datasheets, manuals and drawings for the XBeam480IP.
