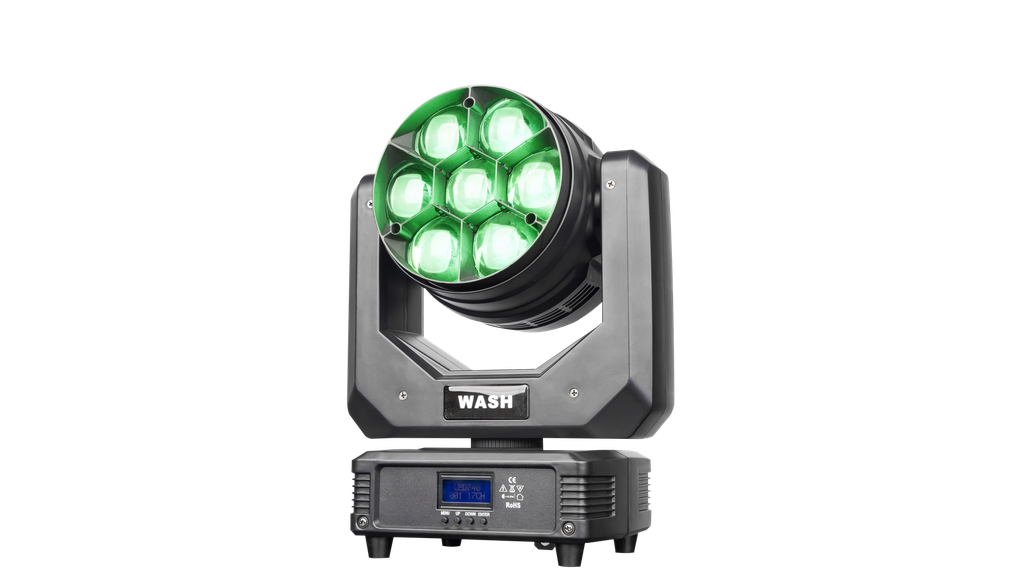

XWASH-740 Vision · Indoor Moving Wash
7x40w Mini Bee Eye Moving Head （Omega bracket）
The XWASH 740 is a powerful mini LED wash moving head, engineered for high-performance stage and venue lighting. Featuring 7 x 40W RGBW LEDs and a motorized zoom range of 6°–45°, it delivers vibrant, uniform color washes with flexibility across applications from concerts to installations.
Description
About the XWASH-740
Manufacturer detail for the XWASH-740 by Vision.
Technical Overview
The XWASH 740 is a powerful mini LED wash moving head, engineered for high-performance stage and venue lighting. Featuring 7 x 40W RGBW LEDs and a motorized zoom range of 6°–45°, it delivers vibrant, uniform color washes with flexibility across applications from concerts to installations.
Key Features:
-
7 x 40W RGBW LEDs
High-output color mixing with consistent intensity across the zoom range. -
Motorized Zoom: 6°–45°
Wide-angle washes and narrow beam control for dynamic stage effects. -
Compact & Lightweight
- Weight: 5.5 kg
-
Mounting: Single Omega bracket on the base
Designed for ease of transport and quick setup.
-
High-Performance Dimming & Strobe
- 16-bit smooth dimming with no flicker
- Fast strobe effects from 1 to 25 Hz
-
Macro Effects
Built-in color macros enable quick access to vibrant automated lighting effects. -
Precision Movement
- 8/16-bit pan and tilt resolution
Specifications
Technical Specifications
Full published figures for the XWASH-740 by Vision.
- Permitted Ambient Temperature
- Max 40°C
- Housing Material
- ABS high-temp resistant plastic
- DMX Channels
- 17 / 22
- Control Protocols
- DMX512, RDM, Auto, Sound, Manual, Master-Slave
- Cooling
- Internal fan with Auto/High/Low modes
- IP Grade
- IP20
- Beam Angle
- 3.5°–45°
- LED Lifetime
- ≥ 50,000 hours
- LED
- 7×40W RGBW
- Dimensions (L x W x H)
- 343 x 178 x 258 mm
- Weight
- 5.2 kg
- Power Consumption
- 250 W
Show all 14 specifications Show fewer specifications
- Operating Voltage
- 240 V
- Power Connection
- PowerCon in/out
Documentation
Downloads
Datasheets, manuals and drawings for the XWASH-740.
