The DmxMerger is DMX-512 merger in a DIN rail form factor. The device features six optically isolated DMX inputs and one optically isolated DMX output.
Power
12 W
Dimensions
59 x 104 x 105 mm
Voltage
24 V
Current
0.5 A
Description
About the DmxMerger
Manufacturer detail for the DmxMerger by Visual Productions.
Technical Overview
DmxMerger
DIN rail DMX merger
DmxMerger
DIN rail DMX merger

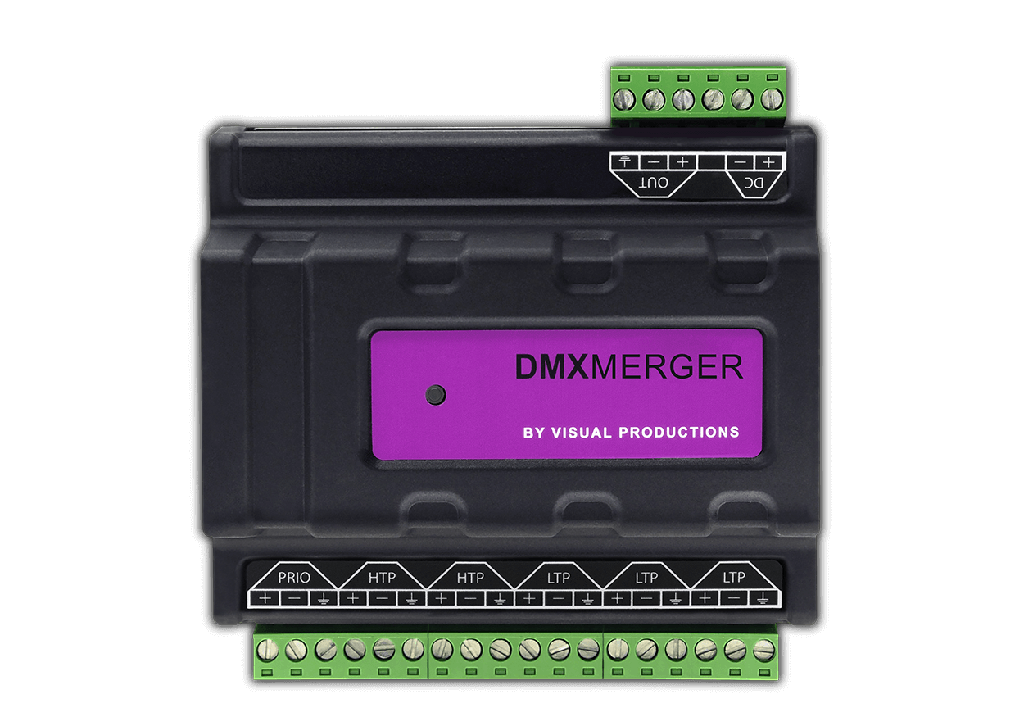

The DmxMerger is DMX-512 merger in a DIN rail form factor. The device features six optically isolated DMX inputs and one optically isolated DMX output.
Merging strategy
The DmxMerger offers three different merging strategies.
The Latest Takes Precedence strategy selects one of the LTP inputs based on which port had the most recent change. This can be a change in channel levels or a DMX signal becoming active.
The Highest Takes Precedence strategy is used for combining the HTP inputs and the result of the LTP merging. In this strategy each DMX channel is compared across the inputs and the highest value is forwarded to the output.
If a DMX signal is present on the Priority input then this input is forwarded directly to the output. In this case all other inputs are ignored.
Data path
The Priority, HTP and LTP ports are all merged together.
Combine multiple controllers
When your DMX installation is best served with more than one controller, the DmxMerger can combine the outputs from multiple controllers into one single DMX network.
Create redundancy
Use the Priority input to connect your main DMX controller. Should it fail, the DmxMerger will instantly switch to a secondary DMX controller connector to one of the other input ports.
Specifications
Technical Specifications
Full published figures for the DmxMerger by Visual Productions.
- -
- 6 Inputs
- -
- Optical Isolation (individual per port)
- -
- USITT DMX512-A (ANSI E1.11)
- -
- Screws connectors
- -
- DIN Rail mounting
- -
- Power consumption 9-24V DC 500mA power input (optional external PSU)
- -
- Dimensions 105 x 86 x 60 mm (4.1 x 3.4 x 2.4 inches)
- -
- Weights 120 gram (0.26 lbs)
- Dimensions (L x W x H)
- 59 x 104 x 105 mm
- Power Consumption
- 12 W
- Operating Voltage
- 24 V
- Current Draw
- 0.5 A
Show all 13 specifications Show fewer specifications
- Power Connection
- 9-24v DC 500mA
