The PoeSwitch is a unmanaged network switch with 4
Power-over-Ethernet ports. It's the perfect companion for
connecting and powering Visual Productions lighting
controllers in a small to medium size lighting control
syst
Visual Productions
The PoeSwitch is a unmanaged network switch with 4
Power-over-Ethernet ports. It's the perfect companion for
connecting and powering Visual Productions lighting
controllers in a small to medium size lighting control
system.
PoeSwitch - 4-port PoE network switch with 1Gbps uplink - Professional Audio & Lighting Equipment Description
Detailed information about the PoeSwitch - 4-port PoE network switch with 1Gbps uplink by Visual Productions
Technical Overview

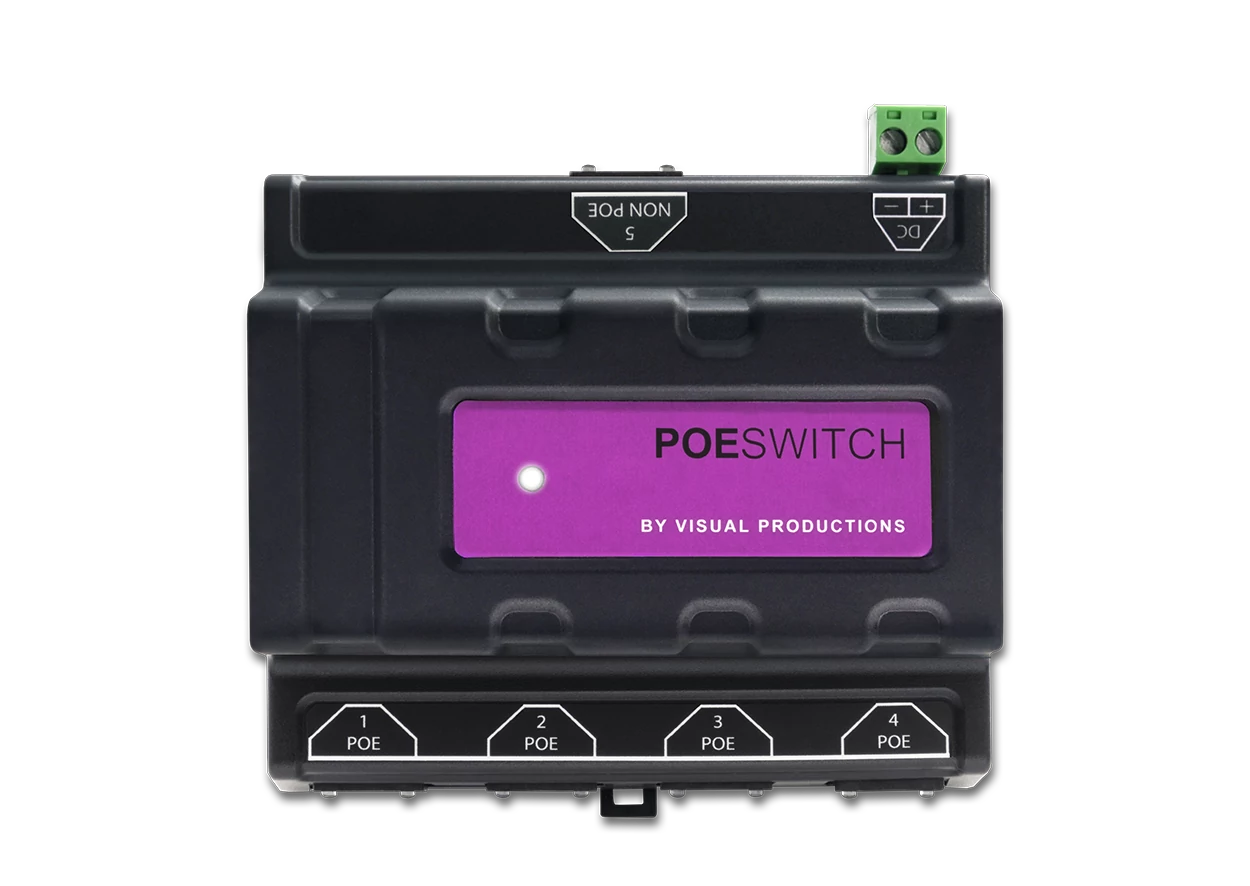

PoeSwitch
4-port PoE network switch with 1Gbps uplink
The PoeSwitch is a unmanaged network switch with 4
Power-over-Ethernet ports. It's the perfect companion for
connecting and powering Visual Productions lighting
controllers in a small to medium size lighting control
system.
The switch requires no configuration and therefore
guarantees fast and seamless integration into the network.
Additionally, the switch's fan-less design ensures silent
operation, making this device the perfect solution for office
environments.
PoE
Transfer data and power on one single cable via four PoE ports. Supports PoE power up to 15.4W for each PoE port and a total PoE budget of 60W.
DIN rail
The installation-friendly form factor ensures a fluent integration in DIN rail based electrical cabinets.
PoeSwitch - 4-port PoE network switch with 1Gbps uplink Technical Specifications
Complete technical specifications and documentation for the PoeSwitch - 4-port PoE network switch with 1Gbps uplink by Visual Productions
Specifications
| Name | Value |
|---|---|
| - | DIN rail mounting |
| - | Unmanaged network switch |
| - | Plug&play, no configuration required |
| - | 4x 10/100 Mbps PoE ports |
| - | 1x 1 Gbps uplink port |
| - | IPv4/IPv6 QoS (Quality of Service) |
| - | IEEE 802.3af compliant PD |
| - | 60W PoE budget, 15,4W per port |
| - | 48V DC 60W max. (PSU optional) |
| - | Operating temperature -20°C to +50°C (-4°F to 122°F) |
| - | Operating relative humidity 10% to 80% non-condensing |
| - | CE, RoHS, UKCA Compliance |
