VBAR-803 | Vision Professional Architectural Lighting Equipment
Professional Architectural Lighting solution by Vision - Available throughout the Middle East
Description
Detailed information about the VBAR-803 by Vision
Technical Overview

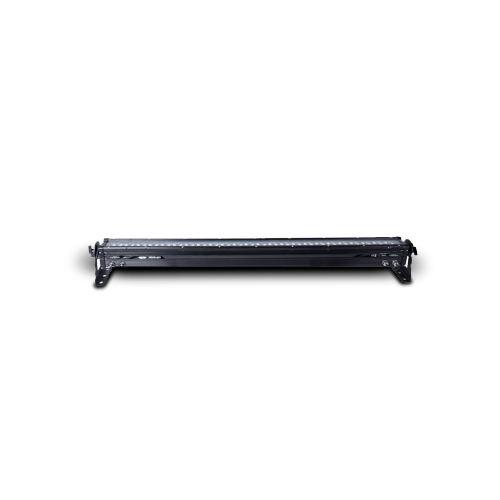

The VBAR-803 is IP65 rated Stage LED Light Bar, die-casting aluminum private tooling housing, used 12Pcs*3W RGB 3-in-1 LED, beam angle 15° and 40° for optional. LED display, total power 80W, with very good color mixing, and already applied in many indoor & outdoor lighting Projects.
Technical Specifications
Complete technical specifications and documentation for the VBAR-803 by Vision
Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| LED | 24* tri-3W RGB |
| Beam angle | 40° |
| IP rating | IP 66 |
| DMX channels | 3, 5 channels |
| Control mode | Auto-running, built-in programs, M/S, DMX 512, static color |
| Operation mode | LED display |
| Lumen | R335. G372, B417. RGB1097 lux at 2 meters |
| Power supply | AC100V-240V, 60HZ/50HZ |
| Power consumption | 80W |
Downloads & Documentation
Access technical documentation, manuals, and resources for the VBAR-803 by Vision
Professional Projects Using VBAR-803
Real-world implementations and case studies featuring the VBAR-803 by Vision in professional installations across the Middle East
