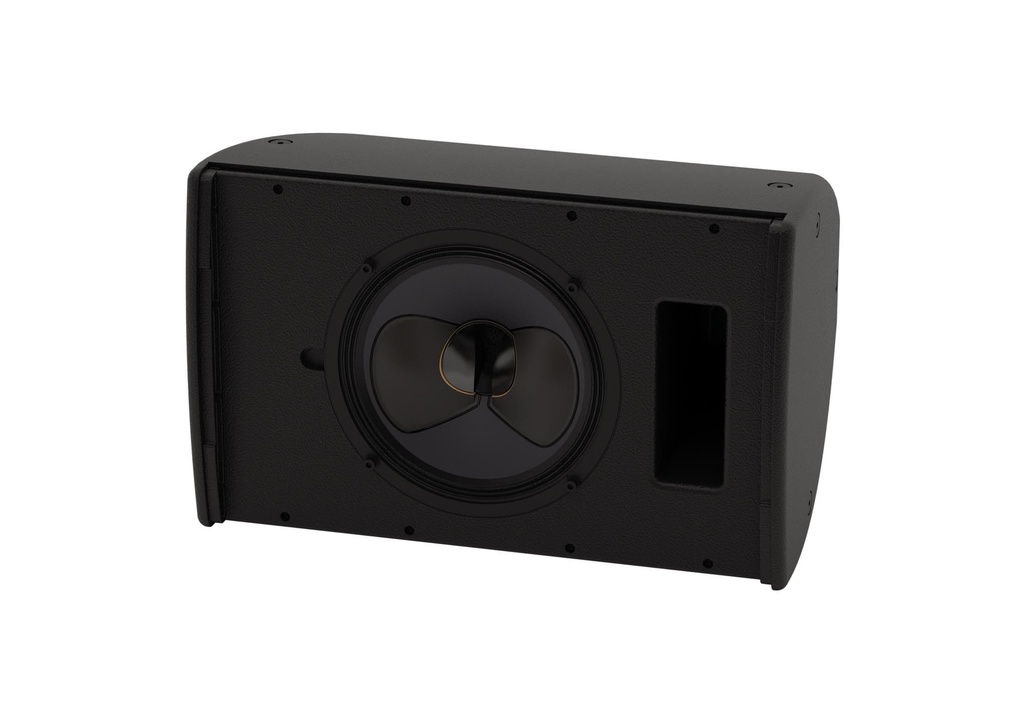

Martin Audio - CDD10W-WR
10" Passive Coaxial Differential Dispersion Outdoor On-wall Loudspeaker
Martin Audio
10'' CDD Speaker - Weatherproofed White
Description
10" Passive Coaxial Differential Dispersion Outdoor On-wall Loudspeaker - White
Specifications

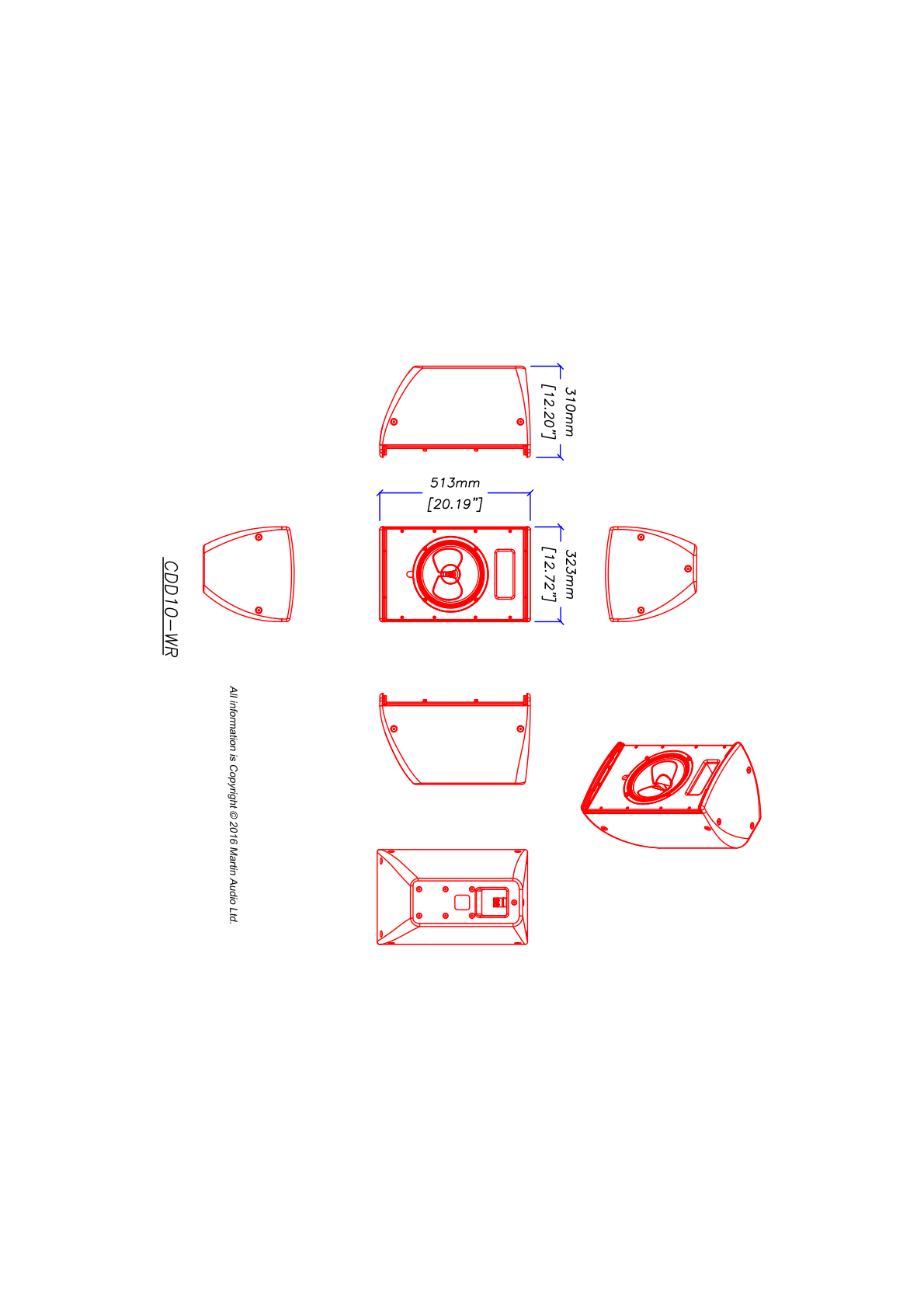

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| TYPE | Compact, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE (5) | 65Hz-20kHz ± 3dB -10dB @ 55Hz |
| DRIVER | LF: 10” (250mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver |
| RATED POWER (2) | 250W AES, 1000W peak |
| SENSITIVITY (8) | 96dB |
| MAXIMUM SPL (9) | 120dB continuous, 126dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6dB) | 110˚-75˚ horizontal, 60˚ vertical (user-rotatable) |
| CROSSOVER | 2kHz passive |
| ENCLOSURE | 28 litre, composite material |
| FINISH | Black or white as standard |
| PROTECTIVE GRILLE | Zinc plated mild steel with powder coated finish and weatherised backing |
| ENVIRONMENTAL | Rated at IP54 |
| CONNECTORS | Low profile 20A push-lock, weatherproof input panel cover with cable gland |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link+ |
| FITTINGS | 6 x M8 inserts for wall bracket 10 x M8 fly points |
| DIMENSIONS | (W) 323mm x (H) 513mm x (D) 310mm (W) 12.7ins x (H) 20.23ins x (D) 12.2ins |
| WEIGHT | 15.5kg (34.2lbs) |
