Description
Detailed information about the CURV 500 AVS by LD Systems
Technical Overview

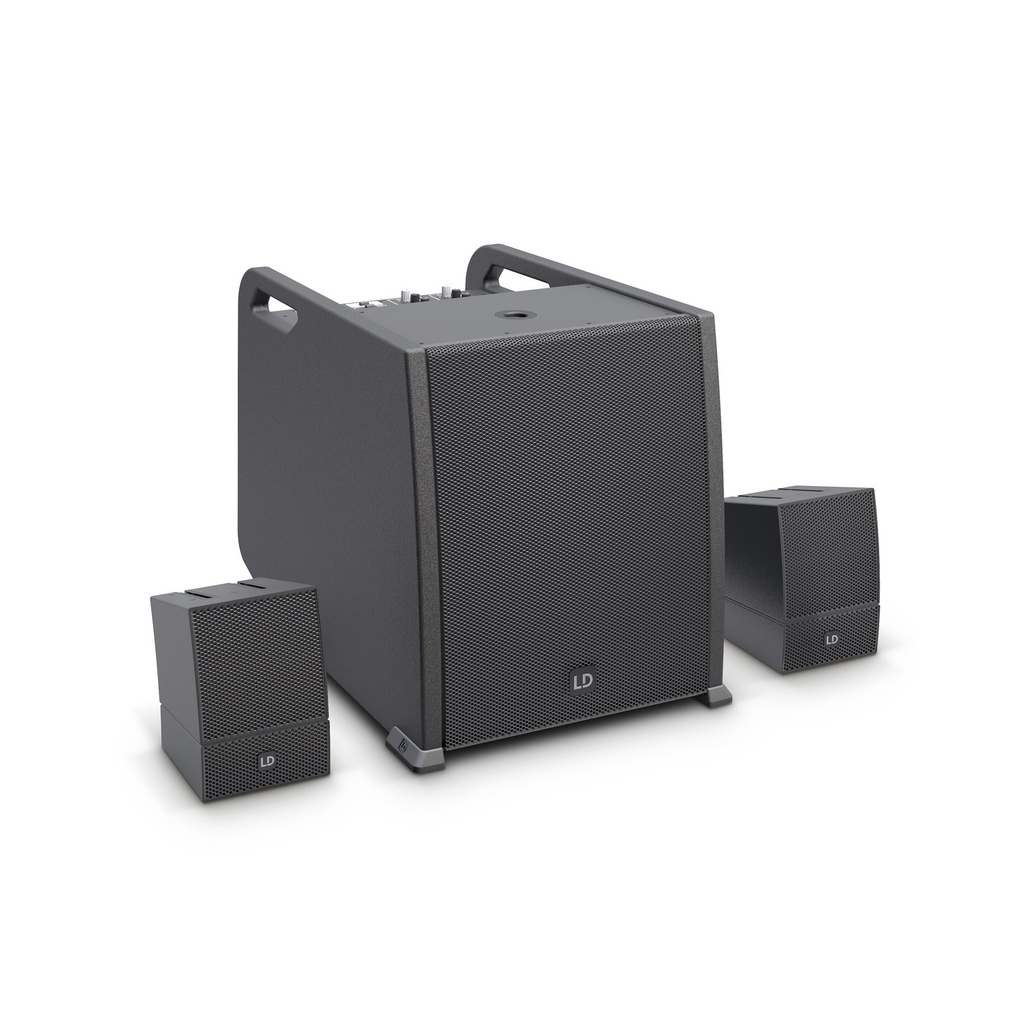

The patented CURV 500® AV Set is the perfect fit anywhere music is played: in bars, clubs, studios and even at home as a home entertainment system. Featuring a power of 380 watts RMS and a maximum sound pressure level of 122 dB, the CURV 500® AV Set can remain discreetly in the background, but also provide an impressive rocking performance.
The 10" bass-reflex subwoofer with Class D power amplifier represents the core of the CURV 500® AV Set and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effect presets and Bluetooth®. Combo and Speakon-compatible sockets offer extensive connectivity options. Furthermore, the subwoofer features four digital system presets, an M20 threaded flange and three ergonomic carrying handles.
The two satellites are operated via SmartLink® adapters. The elements, only 12 x 12 cm in size, are equipped with LD System's own WaveAhead® technology; one 4" and three 1" drivers provide a coherent and extremely detailed playback with high pressure and dynamics.
With optional wall and ceiling mounting systems, the satellites can be installed anywhere, where good sound and subtle appearance are required. For even more power, a total of eight array satellites can be operated in stereo mode (max. four on each side).
The CURV 500® AV Set includes a subwoofer with a mixer unit, two satellites, two SmartLink® adapters, and two speaker cables.
Technical Specifications
Complete technical specifications and documentation for the CURV 500 AVS by LD Systems
Specifications
| Name | Value |
|---|---|
| Product type | PA Complete Systems |
| System output (RMS) | 380 W |
| Color | Black |
| Number of array satellites | 2 |
| Number of Smartlink adapters | 2 |
| Number of subwoofers | 1 |
| Max. SPL (continuous) | 116 dB |
| Max. SPL (Peak) | 122 dB |
| Frequency response | 47 - 20000 Hz |
| Dispersion (H x V) | 110° horizontal, vertical (each satellite) 10 ° |
| System Power (RMS) | Subwoofer: 300 W , Array Satellites: 2 x 160 W |
| Peak power | Subwoofer: 1200 W , Array Satellites: 2 x 640 W |
| Amplifier | Class D |
| Protection circuits | DSP-based multiband limiter, overload, Short circuit, thermal overload |
| Weight | 22,8 kg |
| Accessories (included) | 2 x Speaker cable with terminal block CURV 500 CABLE 2 (3 m), Power cord |
| Low/mid Woofer dimensions | 10 " |
| Woofer dimensions (mm) | 254 mm |
| Cabinet construction | Bass Reflex |
| Cabinet material | plywood |
| Cabinet surface | PA painting |
| Dimensions Subwoofer (W x H x D) | 325 x 383 x 491 mm |
| Subwoofer weight | 16.5 kg |
| Subwoofer features | 16 DFX Presets, 3 ergonomic handels, 4 channel mixer, 4 System DSP Presets, Bluetooth, Threaded flange M20 |
| Mid/Hi system | MF: 1 x 4" / HF: 3 x 1" with WaveAhead® Technology / 16 ohms |
| Array Satellite Features | internal crossover, metal grille, WaveAhead® Technology |
| Array Satellite Material | Die-cast aluminium |
| Array Satellite Surface: | Powder coated |
| Array Satellite Dimensions (W x H x D) | 122 x 122 x 122 mm |
| Array Satellite Weight | 1.7 kg |
| Smartlink Adapter Features | 2 x 16 mm pole mount socket, 2x M6 thread for optional wall mount |
| Smartlink Adapter Connectors | 1 x Speakon-compatible, 1x Phoenix |
| Smartlink Adapter Material | Die-cast aluminium |
| Smartlink Adapter Surface | Powder coated |
| Smartlink Adapter Dimensions (W x H x D) | 122 x 57 x 122 mm |
| Smartlink Adapter Weight | 0.6 kg |
