CWMS 42 B 100 V | LD Systems Professional Passive Loudspeakers Equipment
Professional Passive Loudspeakers solution by LD Systems - Available throughout the Middle East
Description
Detailed information about the CWMS 42 B 100 V by LD Systems
Technical Overview

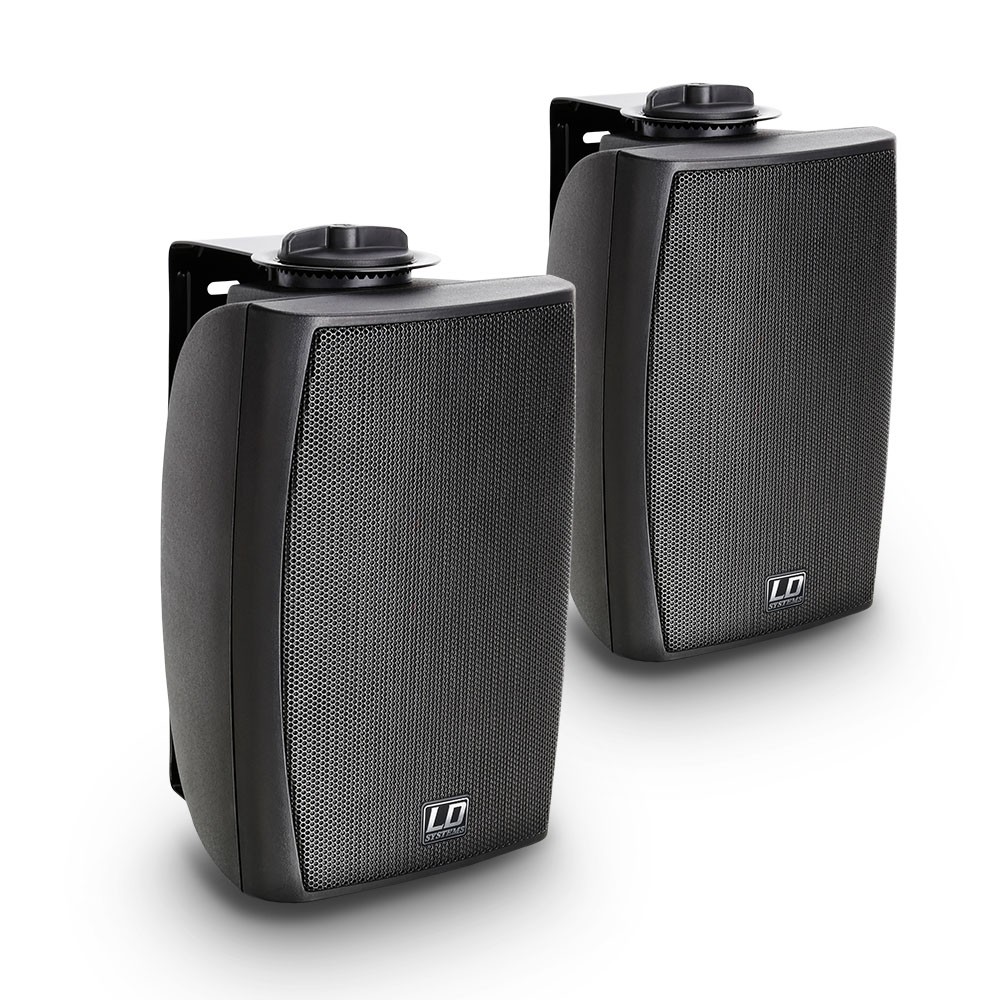

The CONTRACTOR CWMS 42 is an elegant wall speaker with a 4" woofer, and a 0.75" tweeter, reaching a frequency response up to 20 kHz. It convinces with high speech intelligibility and achieves a sound pressure level of 87 dB at 1 W / 1 m with a power capacity of 20 watts of continuous power. It is designed for a wide scope of applications, providing a discreet sound in hotels, restaurants, bars, lounges, training and conference rooms, shopping centres and at home. The CWMS 42 is available in white (CWMS 42 W) and black (CWMS 42 B).
For ELA systems, both versions are also available as 100 Volt versions (CWMS 42 W 100 V, CWMS 42 B 100 V).
As bass extension, we recommend the CIW SUB 10.
Technical Specifications
Complete technical specifications and documentation for the CWMS 42 B 100 V by LD Systems
Specifications
| Name | Value |
|---|---|
| Product type | Installation Loudspeakers |
| Type | Wall-mounted Loudspeaker |
| Version | Wall-mounted Loudspeaker |
| Speaker type | 2-way speaker |
| Color | Black |
| Woofer dimensions | 4 " |
| Woofer dimensions (mm) | 102 mm |
| Tweeter dimensions | 0.75 " |
| Tweeter dimensions (mm) | 19 mm |
| Impedance (low-impedance) | 8 Ohm(s) |
| 100 V Inputs | 1.25 W, 10 W, 2.5 W, 5 W |
| Frequency response | 90 - 20000 Hz |
| Sensitivity (1 W / 1 m) | 87 dB |
| Low-impedance rated load (RMS) | 20 W |
| Width | 253 mm |
| Height | 156 mm |
| Depth | 135 mm |
| Weight | 3,53 kg |
